Filter Fan 204 x 204 115m3/hr 230V

$‎139.81
 inc. GST
QuantityPrice
1 – 9$‎139.81
10 – 19$‎136.31
20 – 49$‎129.32
50 +$‎122.33
SKU: IP-V3200
BRAND: IP Enclosures

This item is IN STOCK

Current Stock: 138

QLD: 81 in stock
NSW: 23 in stock
VIC: 34 in stock
Back

Details

Filter Fan 204 x 204 115m3/hr 230V

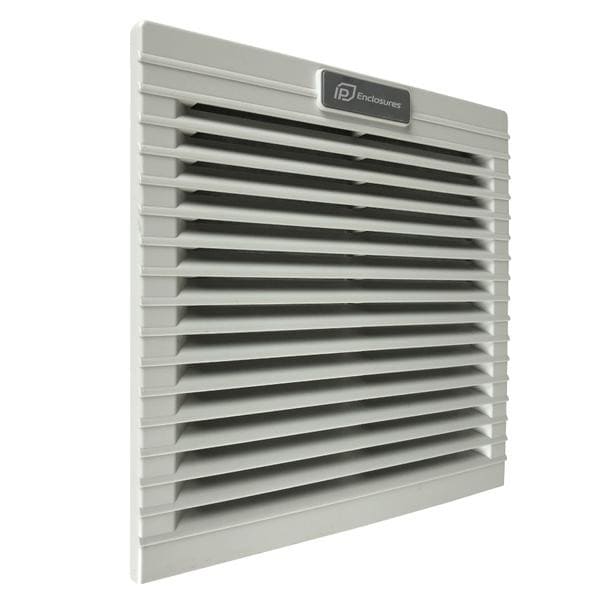

High quality Italian filter fan unit for electrical enclosures.

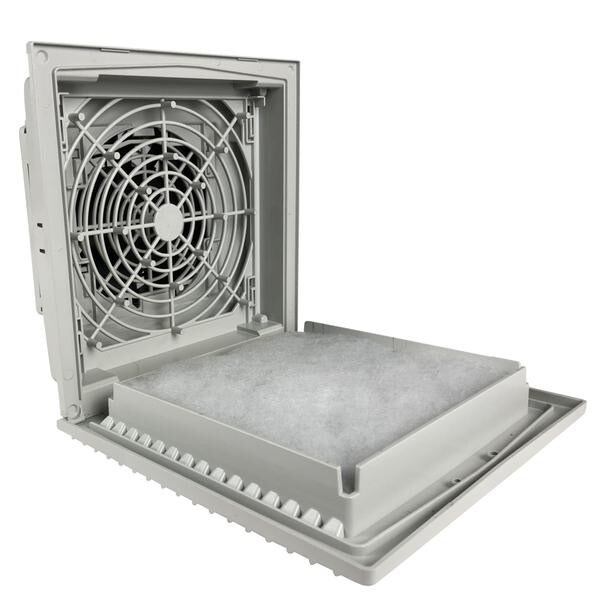

G3 Filter Mat Included.

FeaturesUnitIP-V3200
Air flow rate (free blow)m³/h115 (125)
Flow rate with exit filterm³/h84 (97)
Power supplyV/Hz230 / 50-60
Dimensions HxLxPmm204x204x104
Power consumptionW22 (21)
Current consumptionA0.14 (0.12)
Overcurrent consumption–impedance
Electric connection–3-poles spring terminals
Duty cycle–100%
Operating temperature°C– 10 / +70 (+14 / +158)
Protection degree/class–IP54/Class I
Noise leveldB(A)43 (49)
Flow direction–reversible: default factory setting outside-in
Bearing–ball
Filter mat (Eurovent)–G3
Service life (at 40°C)hr50 000
Material–ABS UL94V-0 Color RAL7035
Wall thicknessmm1.2-2.4
Gasket–foam seal gasket
Weight (with packaging)kg0.98 (1.18)
Package dimensionsmm220x220x110
Montaggio–fast clip-on
Cut-Out dimensionsmm177×177
Conformity/Approvals–CE
