Sloping Roof Electrical Enclosure 400H x 300W x 200D IP66 Orange, Heavy Duty
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
Sloping Roof Electrical Enclosure 400H x 300W x 200D IP66 Orange, Heavy Duty
IP EnclosuresHeavy Duty Sloping Roof Electrical Enclosures are designed to house a variety of electrical switch and control equipment while preventing build-up of dust, debris and waste material in extreme environments.
_x000D_Features & Specifications
_x000D_Protection: IP66 IK10, NEMA 4 (Independent accredited test laboratory).
_x000D_Standard: IEC 62208, IEC/EN/AS60529, (UL508A Optional), RoHS
_x000D_Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.
_x000D_Material:
_x000D_Body: 2.0 Galvanised Steel Sheet
Door: 2.0 Galvanised Steel Sheet
Device Mounting Plate: Galvanised steel sheet
Gland Plate: 2.0 Galvanised steel sheet
Seal: Polyurethane
Enclosure Body:

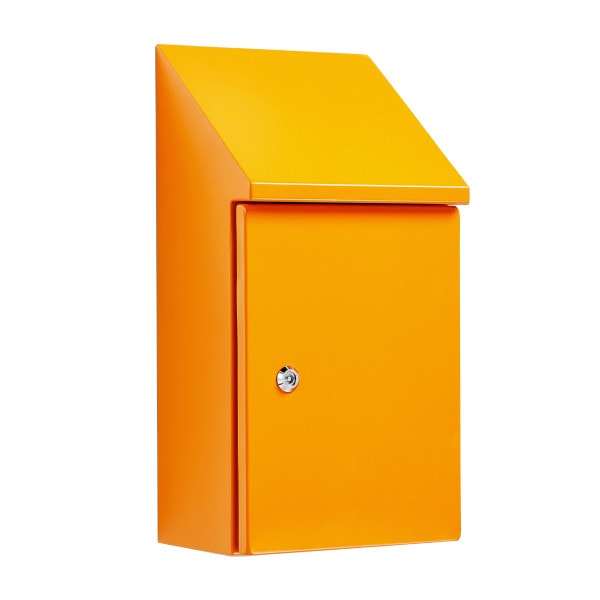

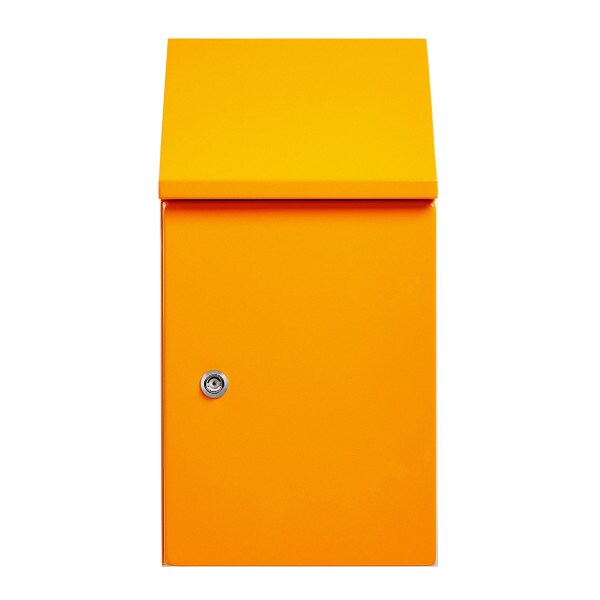

_x000D_The monoblock body with sloping roof is fabricated using 2.0mm galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounting. The roof consists of a 38° sloped roof design that protrudes past pushbuttons for the mining industry. Integral device plate mounts and M6 earth stud is provided.
_x000D_Enclosure Door:

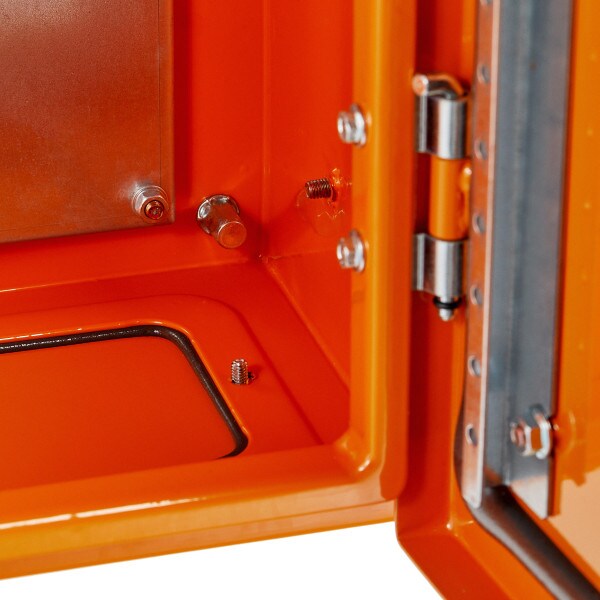

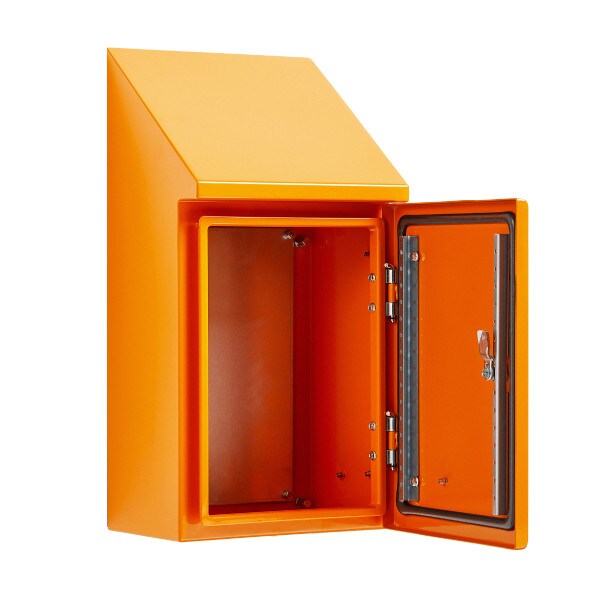

_x000D_The surface mounted door is fabricated using 2.0mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.
_x000D_Enclosure Seal:
_x000D_A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).
_x000D_Enclosure Lock:
_x000D_Chrome 5mm double bit insert quarter turn lock with key.
_x000D_Device Mounting Plate:

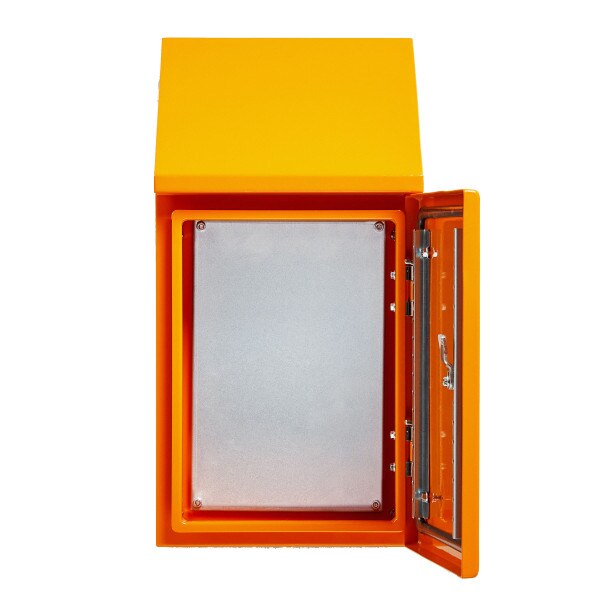

_x000D_The device mounting plate is galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.
_x000D_Gland Plate:
_x000D_Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.
_x000D_Surface Treatment:
UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour RAL2000.
Note: Please choose product carefully. Product selection is the responsibility of the 'Purchaser'. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.
