3 Fan Tray for 19" Data Rack
Details

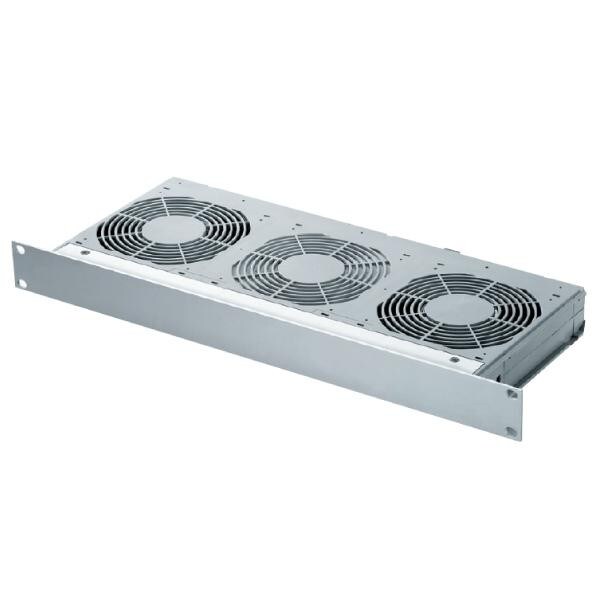

3 Fan Tray for 19" Data Rack
High quality IP Enclosures Italian 3 fan tray for 19" data racks.
Features | Unit | IP-RACKFAN3 |
---|---|---|
Air flow rate (free blow) m³/h 450(540) | ||
Power supply | V/Hz | 230/50-60 |
Dimensions HxWxD | mm | 482x44x208 |
Power consumption | W | 54(51) |
Current consumption | A | 0.39(0.33) |
Overcurrent protection | – | impedance |
Electric connection | – | 3-pole terminal 2.5 mm² |
Duty cycle | – | 100% |
Operating temperature | °C | -10/+70 |
Protection degree/class | – | IP30/Class I |
Noise level | dB(A) | 51(52) |
Flow direction | – | bottom to top |
Bearing | – | ball |
Service life (at 40°C) | hr | 50.000 |
Material | – | PC-ABS UL94V-0 Color RAL7035 |
Weight (with packaging) | kg | 2.60(2.80) |
Package dimensions | mm | 510x220x65 |
Mounting | – | Screws |
Conformity/Approvals | – | CE |
