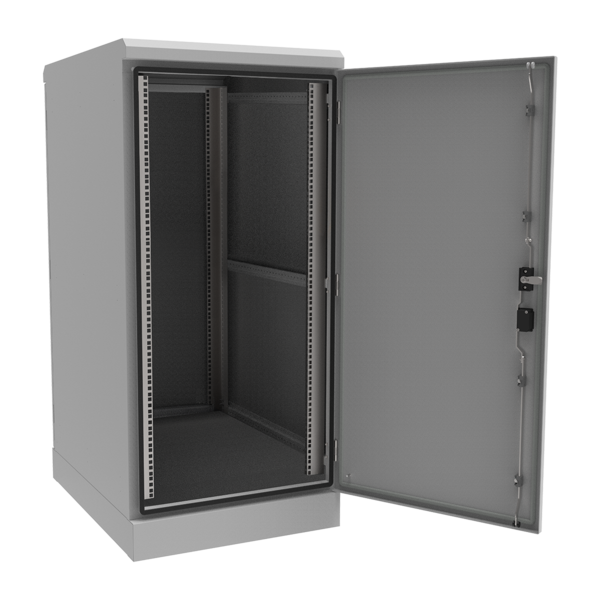

19" HD Data Rack 16RU x 800D IP66 Grey With Heavy Duty Data Rails
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
19" HD Data Rack 16RU x 800D IP66 Grey With Heavy Duty Data Rails
IP Enclosures IP66 19” data racks are designed for heavy-duty outdoor applications to house sensitive data network equipment in harsh environments. They are suitable for internal and external installations. This specific model is a 19" Data Rack 16RU x 800D IP66 Grey with a heavy-duty rail system, capable of accommodating 1–3 VAULTA batteries.
Features and Specifications
Protection: IP66 IK10, NEMA 4
Standard: AS60529, EIA-310-D, RoHS
Rack Unit Size: 16RU
Material:
Enclosure Body: 1.5mm galvanised steel sheet
Enclosure Door: 1.5mm galvanised steel sheet
19” Data Rack Rails: 1.5mm galvanised steel sheet
Enclosure Seal: Polyurethane
Body:
The monoblock body is fabricated using 1.5mm galvanised steel sheet. Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. A galvanised steel gland plate is incorporated into the bottom face.
Door:
The surface-mounted door is fabricated using 1.5mm galvanised steel sheet. It incorporates concealed removable hinges with captive pins and is designed for a 110° opening. Each door includes integral cable management rail studs and an M6 earth stud. The cable management rails are removable to provide additional space for control components. The standard range includes a front door with a fixed rear panel, while the extra heavy-duty range includes both front and rear doors.
19″ Data Rack Rails:
Front and rear 19″ data rack rails are fabricated from 1.5mm galvanised steel sheet and are reinforced to accommodate heavy loads such as batteries.
Door Seals:
A high-quality full perimeter seal provides excellent sealing over a long life. It is machine-applied Polyurethane foamed in place (FIP).
Locks:
3 point locking system with key-lock swing handle.
Gland Plate:
Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.
Surface Treatment:
UL approved epoxy polyester powder-coated with a textured finish, 80–120 micron average thickness. Colour: RAL7035 Grey.
