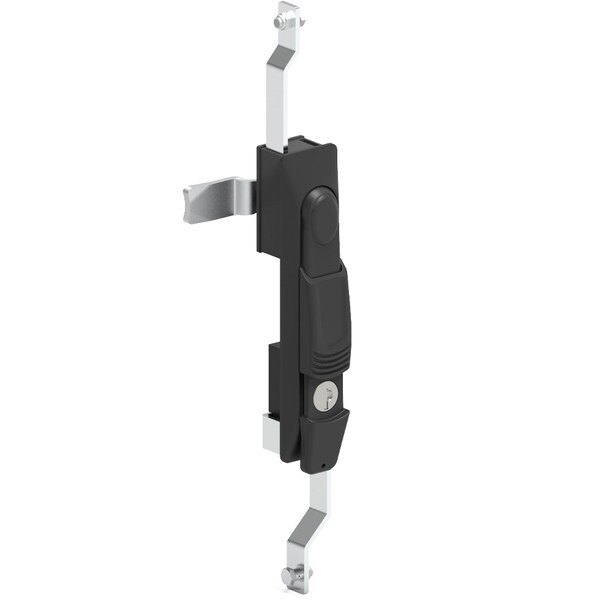

Black Polyamide Swing Handle for Electrical Cabinets - 3 Point Locking, 5mm Double Bit Barrel

Images are for reference only. Refer to datasheets and drawings for accurate specifications.

$‎59.66 (ex. GST)
SKU: IP-L036
Back

Details

Black Polyamide Swing Handle for Electrical Cabinets - 3 Point Locking, 5mm Double Bit Barrel

Body: Polyamide

Handle: Zamak

Gasket: Polyurethane

Cam: Steel

Cylinder: 5mm Double Bit

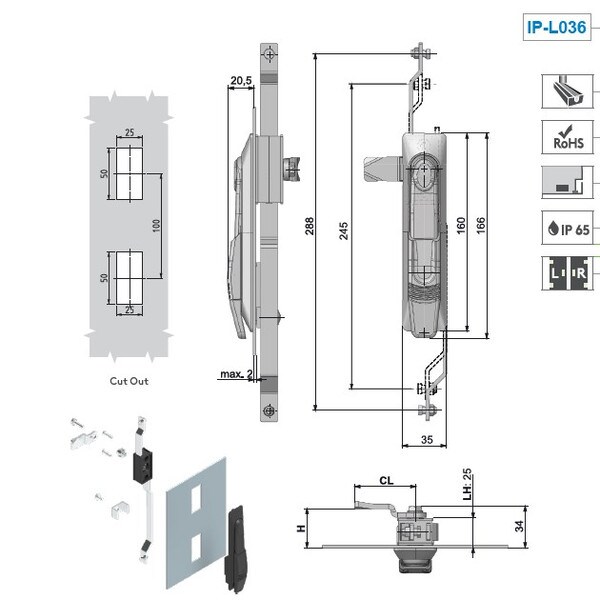

DIMENSIONS

H=32mm

CL=49mm

Suits IP Enclosures Cabinets with an Existing 3 Point Locking System
