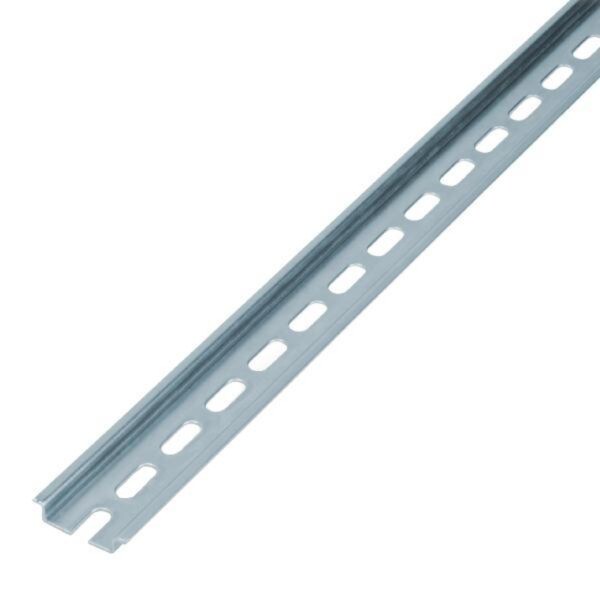

Slotted DIN Rail 430 Long to suit 500W Enclosures, 10 Pack
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
Slotted DIN Rail 430 Long to suit 500W Enclosures, 10 Pack
High quality DIN Rail manufactured from electrogalvanized steel for increased corrosion resistance.
This electrogalvanised finish is superior to the yellow-colored zinc-dichromate plating that is seen on other DIN Rail. This DIN Rail is finished with an environmentally friendly, RoHS-compliant (Restriction of Hazardous Substances) silver-colored plating.
7.5 mm-high rails are primarily used to mount terminal blocks, relays, timers, circuit breakers and small PLCs.
Standard 35mm wide symmetrical TS35 DIN Rail compatible with EN50022 and DIN46277-3.
Material: Steel
Plating: ALKALI ZINC Cr+3 TOP COAT (10-12 Microns)
Standards: DIN5022, DIN5033, EN60715. RoHS Compliant.
Dimensions: 7.5 mm deep x 35 mm wide
Colour: Silver
Type: TS35 Slotted
