Viewing Window Kit 125 x 125 IP66
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details

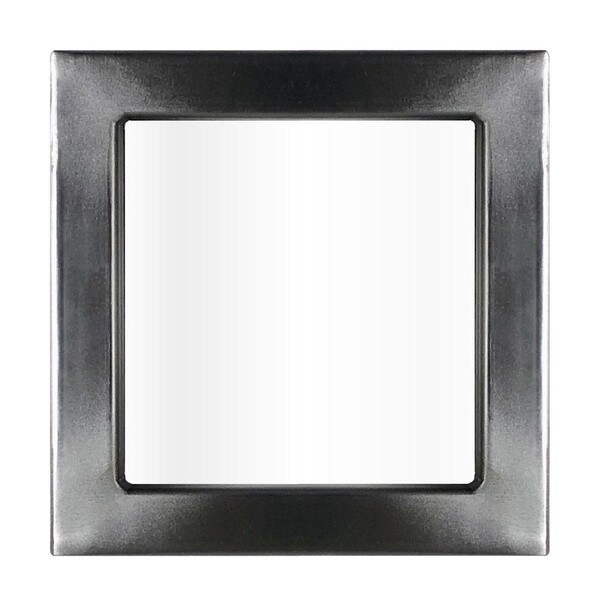

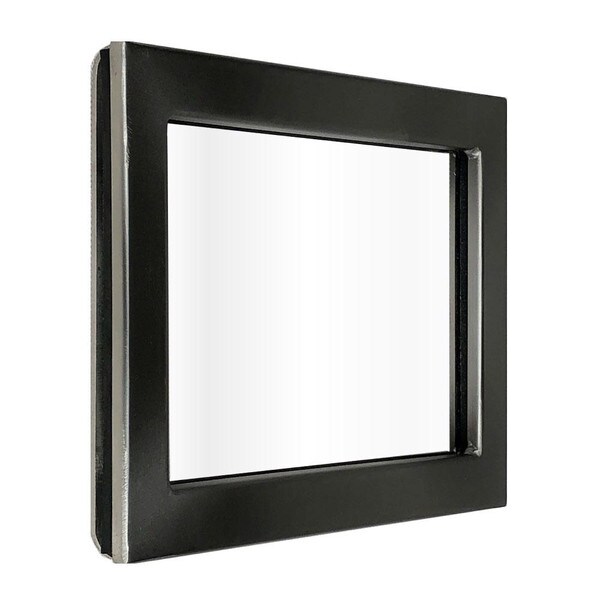

Viewing Window Kit 125 x 125 IP66
Inspection windows provide safe visibility to view and monitor equipment and components mounted inside an electrical enclosure without opening the enclosure door. This enhances safety, reduces downtime, and allows for quick visual inspections in demanding environments.
Key features
- IP66 Protection: Provides excellent protection against dust ingress and powerful water jets, ensuring reliability in harsh environments.
- Clear Visibility: Allows safe inspection of internal components without opening the enclosure.
- Robust Construction: Designed for durability in industrial and outdoor applications.
- Corrosion Resistant: Manufactured from high-grade stainless steel for long-term performance.
Technical specifications
- Opening Size: 125 H x 125 W
- Protection Rating: IP66
- Frame Material: Grade 316/316L Stainless Steel
- Window Material: 4mm Tempered Glass
- Surface Finish: 0.4 micron Ra brushed finish
Construction details
- Frame: The frame and backing flange are fabricated using Grade 316/316L Stainless Steel. A gasket is provided to ensure sealing and protection.
- Window: The window is manufactured from 4mm tempered glass for strength and safety.
