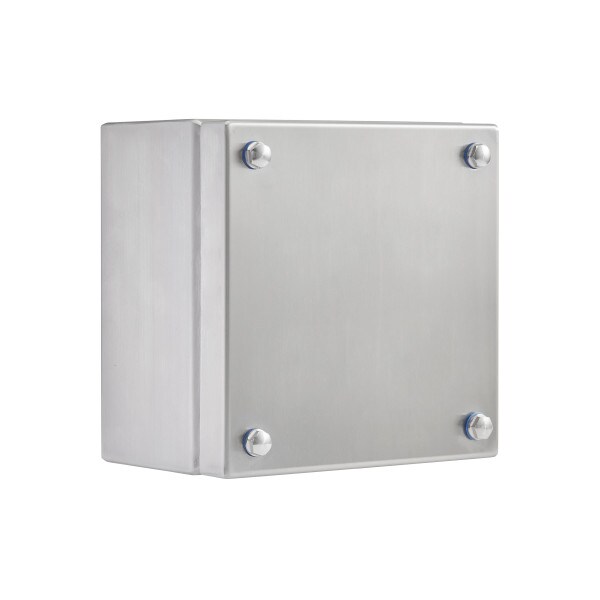

Terminal Box 316 Stainless Steel 400H x 400W x 120D
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
Terminal Box 316 Stainless Steel 400H x 400W x 120D
The IP Enclosures SSTB Range of grade 316 stainless steel terminal boxes are designed for use even in the most demanding industrial environments.
Protection: Complies with IP66, IP67, NEMA 4x
Standard: UL508A Certified
Features and Specifications
Material:
– Body: 1.0mm. Grade 316 stainless steel
– Door: 1.0mm. Grade 316 stainless steel
– Seal: Silicone
Body:
The robust body is fabricated using 1.0mm Grade 316 Stainless Steel and incorporates a high quality
Silicone seal.

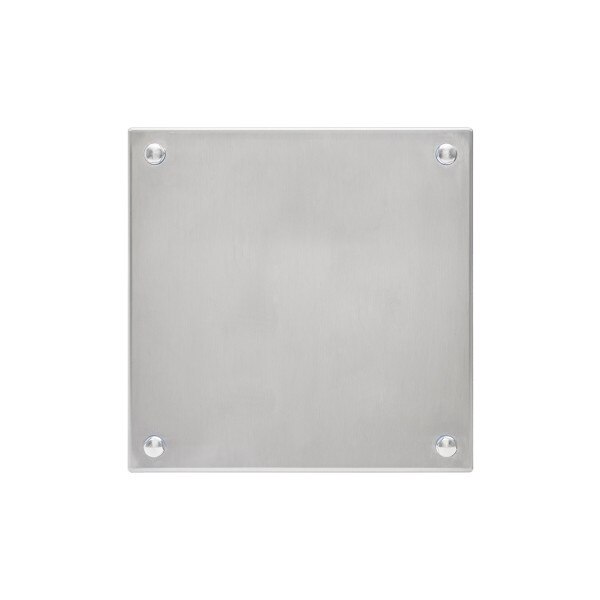

Lid/Door:
The robust pre-drilled lid/door is fabricated using 1.00mm. Grade 316 Stainless Steel and is fastened using screws.
Seal:
A high quality Silicone seal.
Internal Plate:
The inner plate is fabricated using 2.5mm sheet steel, supplied pre-fitted into the terminal box as standard.
