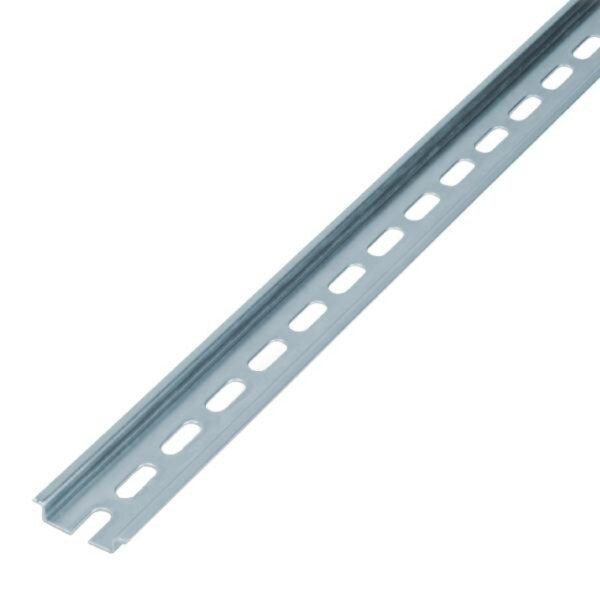

Slotted DIN Rail 240 Long to suit 300W Terminal Boxes, 10 Pack

$‎43.25
 inc. GST
SKU: IP-DINRAIL7.5X35-240
BRAND: IP Enclosures

Order In - Contact Us for lead time

QLD: 0 in stock
NSW: 0 in stock
VIC: 0 in stock

Details

Slotted DIN Rail 240 Long to suit 300W Terminal Boxes, 10 Pack

High quality DIN Rail manufactured from electrogalvanized steel for increased corrosion resistance.

This electrogalvanised finish is superior to the yellow-colored zinc-dichromate plating that is seen on other DIN Rail. This DIN Rail is finished with an environmentally friendly, RoHS-compliant (Restriction of Hazardous Substances) silver-colored plating.

7.5 mm-high rails are primarily used to mount terminal blocks, relays, timers, circuit breakers and small PLCs.

Standard 35mm wide symmetrical TS35 DIN Rail compatible with EN50022 and DIN46277-3.

Material: Steel

Plating: ALKALI ZINC Cr+3 TOP COAT (10-12 Microns)

Standards: DIN5022, DIN5033, EN60715. RoHS Compliant.

Dimensions: 7.5 mm deep x 35 mm wide

Colour: Silver

Type: TS35 Slotted
