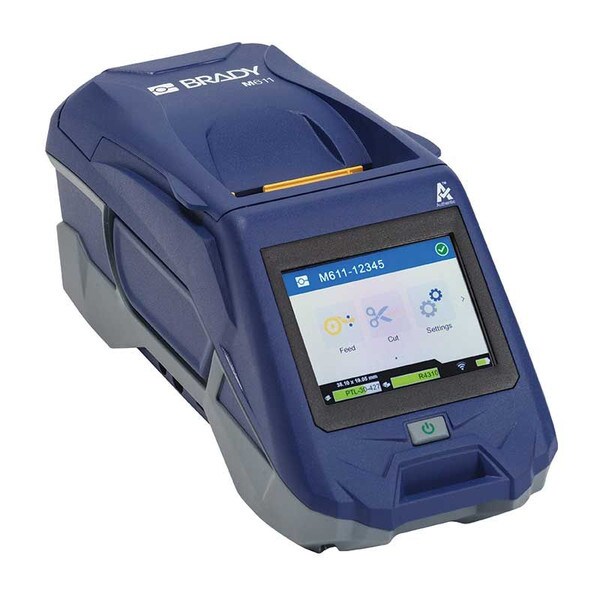

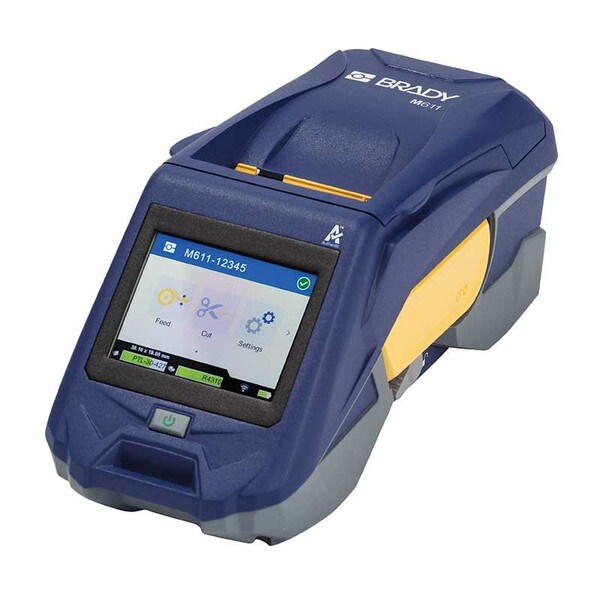

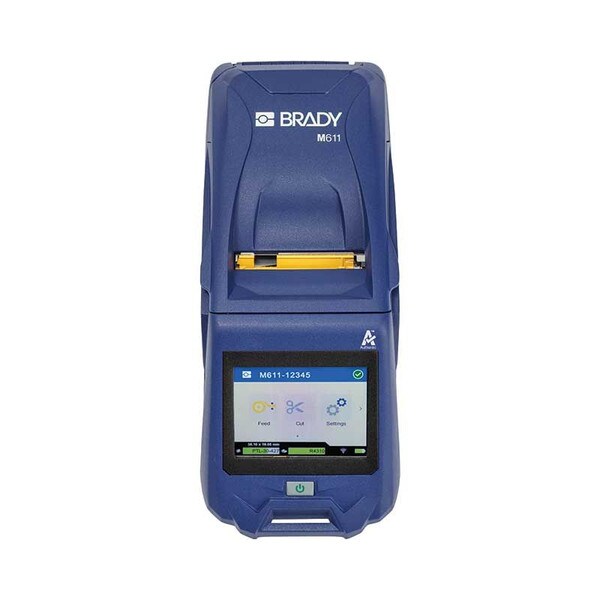

M611 Bluetooth Printer with Wifi, Auto Cutter + PWID Software
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
M611 Bluetooth Printer with Wifi, Auto Cutter + PWID Software
- Blazing Fast Print Speeds - Print up to 50.8 mm per second
- Stronger Connection, Multiple Devices - Bluetooth Low Energy
- Built To Work - Military Grade Shock Resistance up to 1.2m
- Print 2500 Labels On A Single Charge- Li-ION Battery
Overview
- Store more than 1,000 labels on board, then print in the field
- 50.8mm print width
- Compact and lightweight
- Connect to computer using Wi-Fi or USB cable
- Create labels in office or shop. Save for easy sharing.
- Share via email to field, print right from printer touch screen or phone
- Connect up to 5 devices via bluetooth
| Unit of Measure | Each |
|---|---|
| Printer Application | Asset tracking, Circuit board labelling, Component and equipment labelling, Data and telecommunications labelling, Electrical labelling, Facility identification, General identification, Laboratory labelling, Safety identification, Wire and cable labelling |
| Compliance & Agency Approvals | Compliant with Directive 2011/65/EU and 2015/863 |
| Brand | Brady |
| Includes | Brady M611 Label Printer, AC adapter and power cord, Black Ribbon (M61-R4310), Self Lam Label Roll (M6-11-427), USB Flash Drive, Quick Start Guide, Brady Workstation Product & Wire ID Suite |
| Weight (Kg) | 1.6 |
| Height (mm) | 115.66 |
| Width (mm) | 113.28 |
| Depth (mm) | 278.75 |
| Display Size (mm) | 88.90 |
| Size | 113.28 mm (W) x 115.66 mm (H) x 278.75 mm (D) |
| Connectivity Type | Bluetooth, Wi-Fi, USB 2.0 |
| Power Supply Options | AC Power/battery changer, Li-ion Rechargeable Battery |
| Power Source Voltage | 110 - 240 V |
| Memory Capacity (MB) | 256 MB Flash, 512 MB RAM |
| Cutter Type | Automatic |
| Keyboard Style | None |
| Warranty Period | 2 years |
| PC Compatibility | Stand Alone |
| Software Compatibility | Brady Workstation, Labelmark™ Software, Brady Mobile Apps, Windows Based Driver for Third Party Software Use |
| Model | M611 |
| Print Technology | Thermal Transfer |
| Labels Per Day | 750 |
| Maximum Label Width (mm) | 50.80 |
| Maximum Print Width (mm) | 50.80 |
| Continuous vs Die Cut | Continuous and Die-cut |
| Recommended Ribbon | M6-11-427, M61-R4310 ribbon. |
| Print Speed (mm/sec) | 50.80 |
| Print Resolution (dpi) | 300 |
| Compatible Media | BM-, BMC-, M6-, M6C- |
| Supported Material Formats | FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Metallised Polyester, Metallised Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyethylene, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallised Polyester, Tamper-evident Polyester, Tamper-resistant Metallised Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth |
| Print & Colour Capabilities | Monocolour |
| Barcodes | Code 39, Code 128, Yes - With Software |
| Printer Barcode Type | Code 128A, Code 128B, Code 128C, Code 39, GS1 DataBar, HIBC, Interleaved 2 of 5, More through Brady WorkStation, UPC-A, UPC-E |
| Number of Symbols | Determined by software |
| Font Types Available | Determined by software |
| Text Sizes | Determined by software |
| Stand Alone Printing | Mobile device connected |
