LB63HW 3P+N C40 30mA A-TYPE | RCBO 40A 3P+N 10kA C Curve
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
LB63HW 3P+N C40 30mA A-TYPE | RCBO 40A 3P+N 10kA C Curve

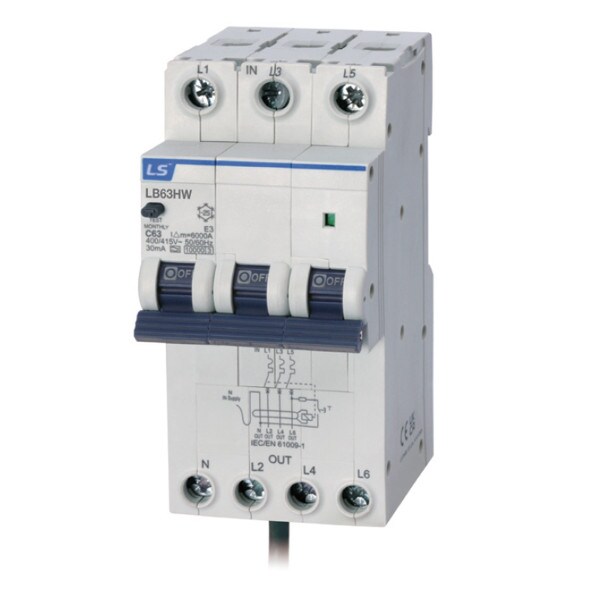

The LS Electric LB63HW 3P+N RCBO is engineered for robust protection in industrial and commercial applications. Rated at 40A with a 10kA short-circuit capacity, it features a C-curve tripping profile, A-type RCD sensitivity at 30mA, and supports electronic trip mechanisms. Designed to IEC/EN 61009-1 standards, this RCBO provides integrated overload, short-circuit, and residual current protection. Its 500V insulation voltage, IP20 rating, and 35mm DIN rail compatibility make it ideal for panel installations requiring compact multi-pole protection. Supports cable terminations up to 25mm² with a 2Nm tightening torque.
