Transparent Door 600H x 600W IP66 Black

$244.29
 inc. GST
SKU: IP-6060WINDOOR-BLK
BRAND: IP Enclosures

This item is IN STOCK

Current Stock: 26

QLD: 22 in stock
NSW: 0 in stock
VIC: 4 in stock

Details

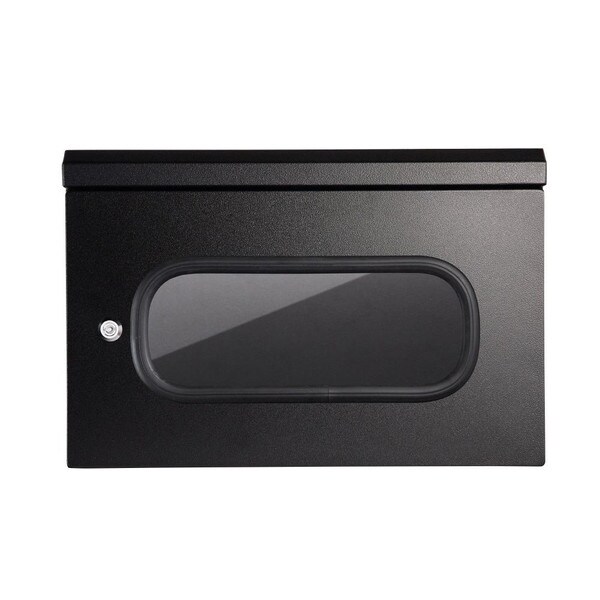

Transparent Door 600H/12RU x 600W IP66 Black

IP Enclosures range of transparent doors are rated for protection up to IP66 and can be easily fitted to the IP Enclosures range of electrical enclosures. Transparent Doors are provided as a standard accessory. Simply remove the existing door and replace with a transparent door.

Features and Specifications

Protection: IP66

Standard: IEC/EN/AS60529, RoHS

Material:

Enclosure Door: 1.5mm galvanised steel sheet
Enclosure Seal: Polyurethane
Windows: 4mm Transparent tempered glass

Door:

The surface mounted door is 1.5mm galvanised steel sheet. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening. The is provided with recessed windows manufactured using 4mm transparent tempered glass with seal.

Seal:

A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Lock:

Chrome 5mm Double Bit Quarter Turn Lock.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour RAL9005.

Window Dimensions:

390mmH x 390mmW
