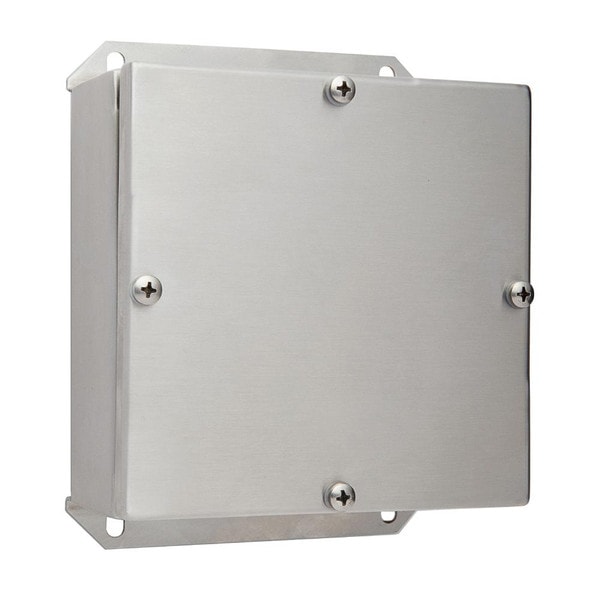

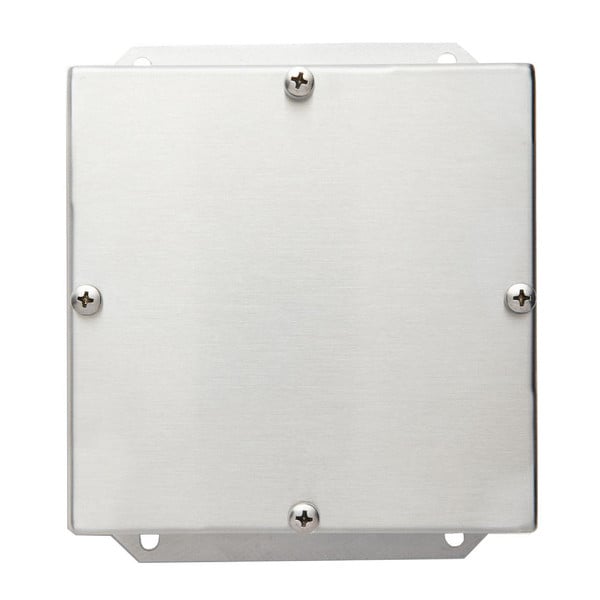

316 Stainless Steel Terminal Box 400H x 200W x 80D IP67
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
316 Stainless Steel Terminal Box 400H x 200W x 80D IP67
The IP Enclosures SSTB range of grade 316/316L stainless steel terminal boxes are designed to withstand immersion to 1.5m depth.
Protection: Complies width IP67 (Max. Depth 1.5m)
Standard: IEC/EN/AS60529
Feature and Specifications
Material:
- Housing: 1.5mm Grade 316/316L Stainless Steel
- Lid/Door: 1.5mm Grade 316/316L Stainless Steel
- Device Mounting Plate: 1.5mm Galvanised Steel Sheet
- Seal: EPDM
Surface Finish: 0.4 micron Ra surface brushed finish
Housing:
The robust housing is fabricated using 1.5mm Grade 316/316L Stainless Steel and incorporates a high-quality EPDM seal. A Device mounting plate is provided fitted. Integral mounting flanges with slotted mounting holes are incorporated for ease of installation.
Lid/Door:
The robust screwed Lid/Door is fabricated using 1.5mm Grade 316/316L Stainless Steel and incorporates an earth stud.
Seal:
High quality full perimeter EPDM seal. Temperature resistance -35°C to 130°C. (RoHS & REACH compliant)
Device Mounting Plate:
Fabricated using 1.5mm galvanised steel sheet, pressed to provide additional strength and supplied pre-fitted. DIN Rail sized to suit can be supplied as an optional accessory.
