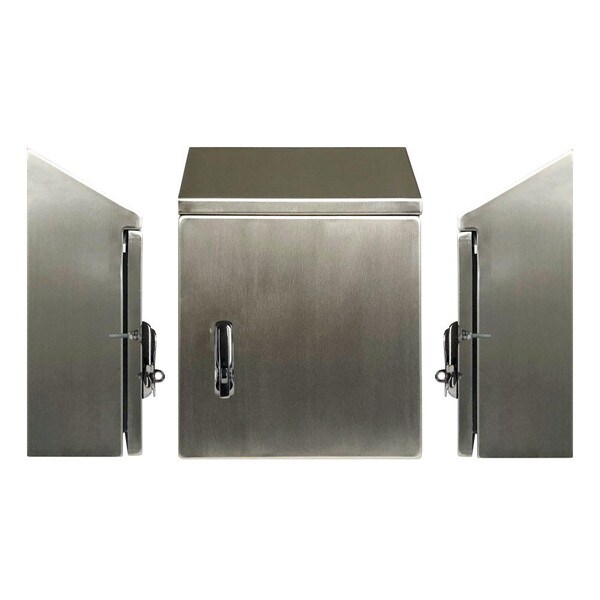

316 Stainless Steel Sloping Roof Electrical Enclosure with Padlockable Handle 300H x 300W x 150D IP65
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
300H x 300W x 150D 316ss Sloping Roof Electrical Enclosure Assembly fitted with 10333PS-S 316ss Padlockable Swing Handle
IP Enclosures SSSR range of grade 316/316L stainless steel sloping roof enclosures are designed for extreme duty applications.
Features & Specifications
Protection: IP65 IK10, NEMA 4x (Independent accredited test laboratory).
Standard: IEC 62208, IEC/EN/AS60529, (UL 508A Optional), RoHS
Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switchgear and controlgear assemblies’.
Material:
Enclosure Body: 1.5mm Grade 316/316L Stainless Steel
Enclosure Door: 1.5mm Grade 316/316L Stainless Steel
Enclosure Seal: Polyurethane
Surface Finish:
0.4 micron Ra surface brushed finish
Enclosure Body:
The monoblock body with sloping roof is fabricated using 1.5mm Grade 316/316L Stainless Steel. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounting and accessories. The roof consists of a sloped roof design that protrudes past the seal, flush with the front of the door face.
Enclosure Door:
The surface mounted door is fabricated using 1.5mm Grade 316/316L Stainless Steel and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.
Enclosure Seal:
A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).
Enclosure Lock:
Grade 316 Stainless Steel 8mm square drive quarter turn lock with key.
Device Mounting Plate:
The device mounting plate is fabricated using galvanised steel sheet, pressed to provide additional strength and supplied pre-fitted into enclosure as standard.
