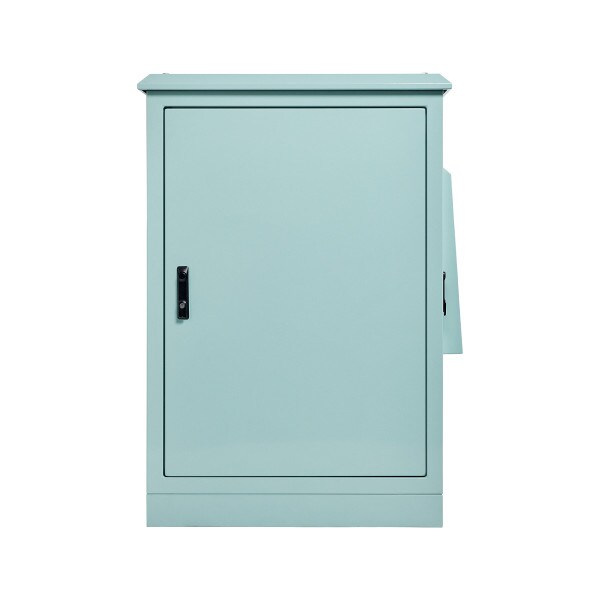

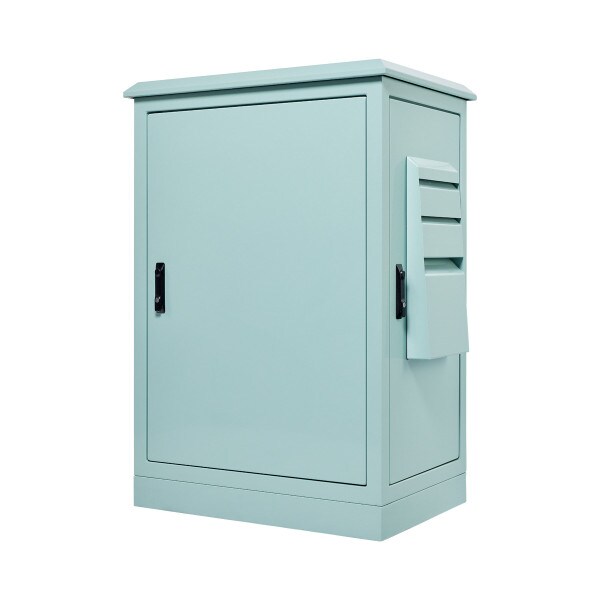

24RU Field Cabinet 1375H x 900W x 620D Fitted with 0.85kW Air Conditioner

Features and Specifications

Protection: IP55 IK10 NEMA 4.

Standard: IEC62208, IEC/EN/AS60529, EIA-310-D, RoHS, CE, UKCA

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’. For more information regarding design verification for switchboard assemblies, refer to AS/NZS 61439.

Material:

– Body and Plinth: 2.0mm galvanised steel sheet
– Doors: 2.0mm galvanised steel sheet
– 19” Data Rack Rails: 1.5mm galvanised steel sheet
– Gland Plate: 3.0mm aluminium
– Enclosure Seal: Polyurethane

Body:

The robust monoblock body is fabricated using 2.0mm galvanised steel sheet. The body is fitted with rain hood/sunshield, plinth and 4 x lifting eye bolts. Flat face sealing surfaces are provided to increase seal life. A 3.0 mm galvanised steel split gland plate is also incorporated into the bottom face. A segmented compartment is provided to house the air-conditioner. Precision automated manufacturing equipment ensures accuracy and consistent high quality.

Doors:

The front and rear doors are fabricated using 2.0mm galvanised steel sheet and are designed to provide flush recessed mounting to prevent vandalism and unauthorised access. The doors incorporate concealed removable hinges with captive pins. They are designed for a 110° opening and are provided with heavy duty door stays.

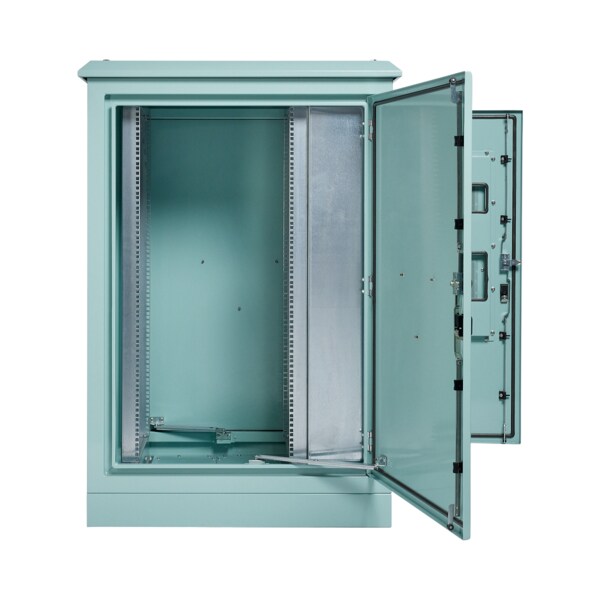

19″ Data Rack Rails:

Front and rear 19″ data rack rails are fabricated from 1.5mm galvanised steel sheet.

Seals:

High quality Polyurethane foamed in place (FIP) full perimeter door seals provide excellent sealing over a long life.

Locks:

Each door includes a 3 point locking system with key-lock swing handle. A full range of locking solutions are available upon request.

Gland Plate:

3mm aluminium split gland plates are incorporated into the bottom of the enclosure for cable management.

Surface Treatment:

UL approved epoxy polyester powder coated with a smooth finish. 80-120 micron average thickness.

Colour:

T33 Smoke Blue. (A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.)

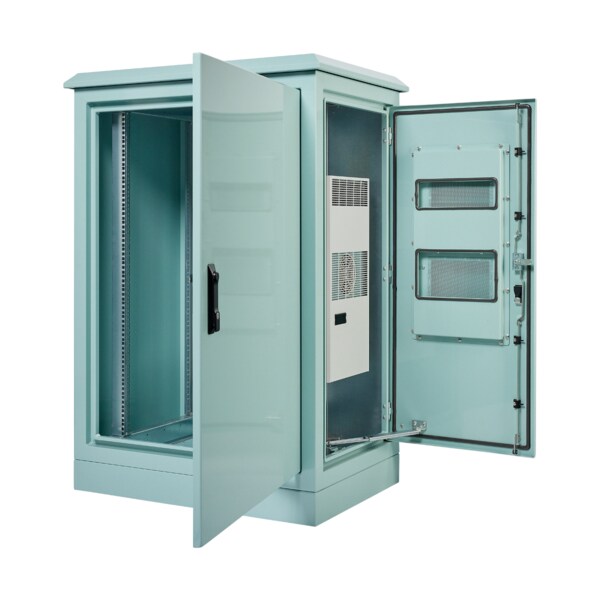

Air Conditioner:

IP Enclosures SAA approved compact air conditioners are designed for the cooling needs of outdoor electrical cabinets. They have been designed for high efficiency and low maintenance and include a condenser fan controller and pressure controller for the compressor.

Standards: AS/NZS 60335.2.40:2019, AS/NZS 60335.1:2020.

Approval Marks: SAA203165
