Yellow LED Pilot Light 22mm 220V AC/DC IP65 — Telergon
Yellow LED Pilot Light 22mm 220V AC/DC IP65 — Telergon

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Telergon

Yellow LED Pilot Light 22mm 220V AC IP65

SKU
$4.23 ex. GST $4.65 inc. GST
Restocking
0 in stockUpdated 4 minutes agoShipping & pickup →
  • Type LED Pilot Light
  • Series LA1
  • Panel Cut-Out Ø22.3mm ±0.2 (M22×1)
  • Mounting Panel Mount
  • Material PC lens, PA66 housing
  • Colour Yellow
  • IP Rating IP65
  • Operating Temp -20°C to +60°C
  • Standards
    • IEC 60947-1
    • IEC 60947-5-1
  • Certifications
    • CE
    • RoHS
    • IP65
  • Voltage 220V AC

Standards & certifications

IP65Dust-tight · water jets CEEU conformity RoHSHazard-free IEC/EN 609471 · 6094751 Tested standards
Product Brochure PDF Declaration of Conformity PDF

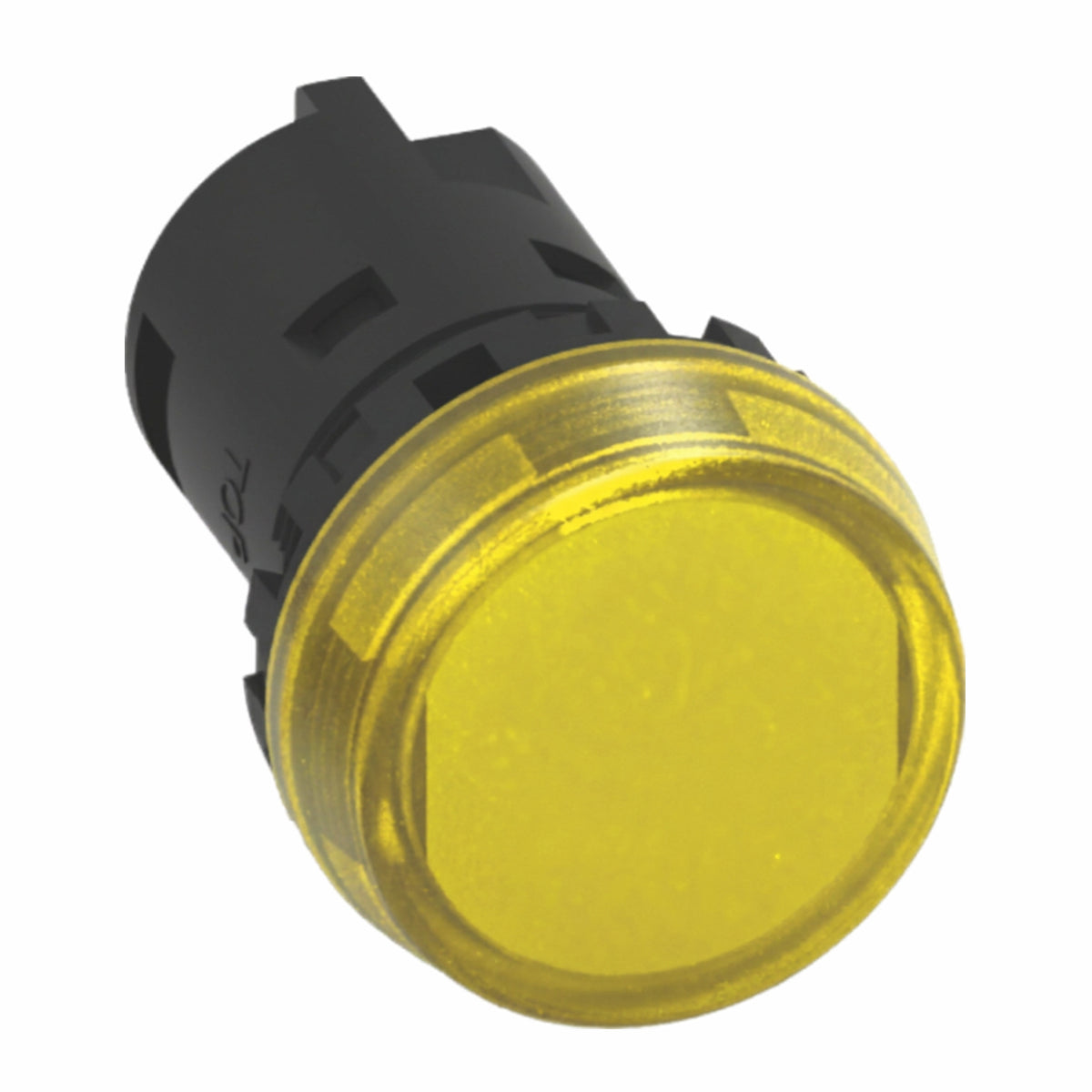

Yellow LED Pilot Light 220V AC, 22mm Flat

The LA1AI00Y220 is a flat-lens yellow LED pilot light operating at 220V AC, mounting into a standard 22mm panel cut-out. Solid-state LED illumination draws minimal current and removes the lamp-replacement maintenance that filament indicators carry.

Features and Specifications

Protection: IP65. Operating range -20°C to +60°C.

Supply: 220V AC only. Telergon rates the 110V and 220V LED indicators for AC supply; the 6.3V, 12V and 24V versions are AC/DC.

Standards (& Conformities): IEC 60947-1, IEC 60947-5-1, CE, RoHS.

Mounting:

Panel cut-out: Ø22.3mm ±0.2 (M22×1)
Panel thickness: 0.8–6 mm

Materials:

PC lens, PA66 housing

Manufacturer: Telergón, S.A.U., Zaragoza, Spain — European-engineered, CE marked to the Low Voltage (2014/35/EU) and RoHS (2011/65/EU) Directives.


Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements.
