630A 21 Pole Encapsulated MCCB Chassis, Single-Sided RHS, Top Feed
Regular price
$1,519.40
ex. GST
$1,671.34
inc. GST
Out of stock
Contact us for lead time
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock

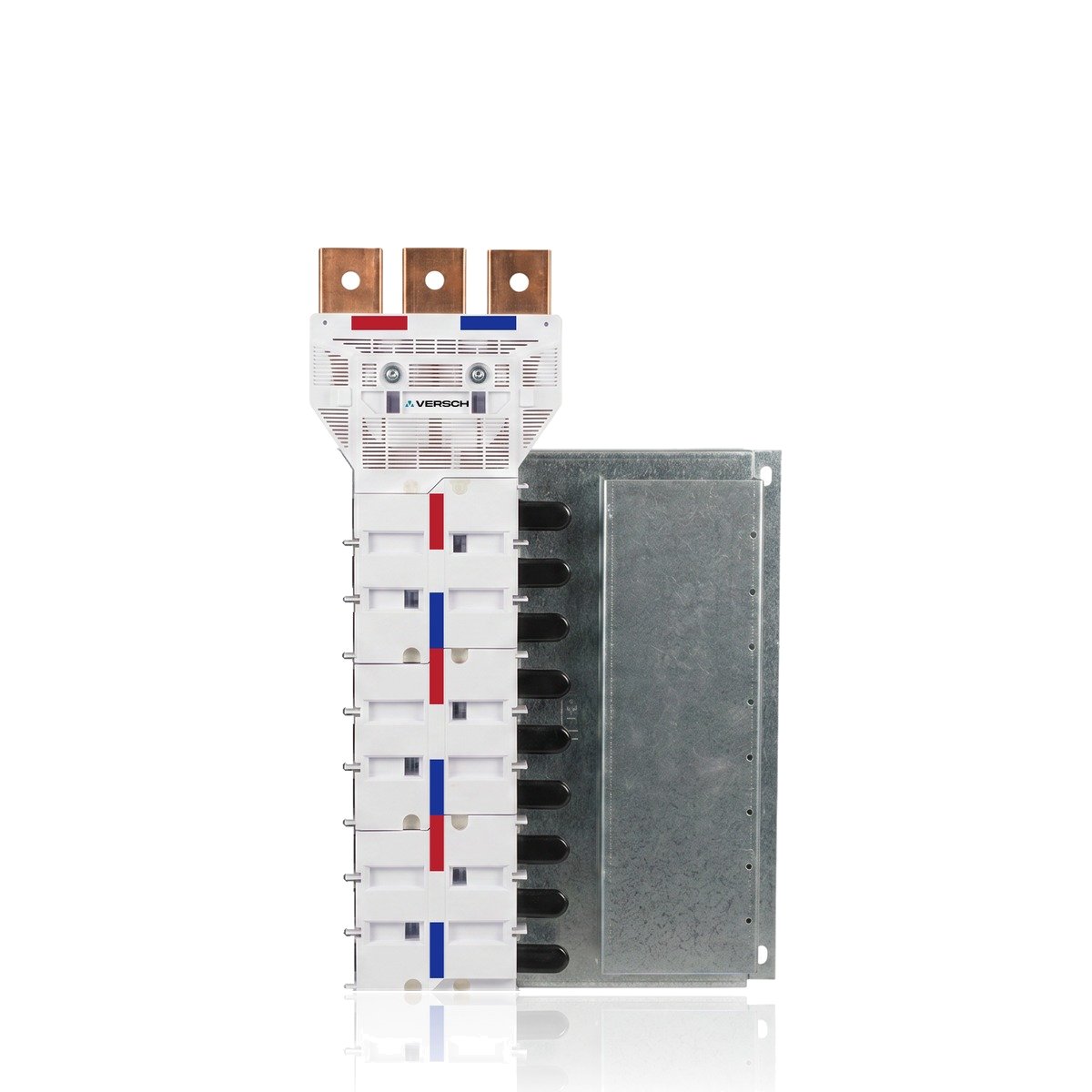

Versch TRO630SS3521RHTF NYBUS 630A 21 Pole Encapsulated MCCB Chassis, Single-Sided RHS, Top Feed
The Versch TRO630SS3521RHTF is a NYBUS 630 A encapsulated MCCB chassis with 21 outgoing poles at 35 mm pitch in a single-sided RHS layout with top feed. It carries 6.35 × 40 mm copper busbars rated for 50 kA for 0.5 s, giving a compact, pre-assembled MCCB distribution section for switchboards.
| Brand | Versch |
|---|---|
| Part number | TRO630SS3521RHTF |
| Range | NYBUS 630 encapsulated MCCB chassis |
| Rated busbar current | 630 A |
| Outgoing poles | 21 |
| Pole pitch | 35 mm |
| Configuration | Single-Sided, Right-Hand (RHS) Pan |
| Feed arrangement | Top Feed |
| Main busbar | 6.35 × 40 mm copper (C110, half-hard) |
| Mounting pan and rail | 1.6 mm galvanised steel |
| Short-circuit withstand | 50 kA for 0.5 s |
| Overall length | 898 mm |
| Dimension drawing | TRO-63035-SSXX Rev A |
- 630 A rated 6.35 × 40 mm copper busbars
- 21 outgoing poles at 35 mm pitch
- Single-Sided RHS layout, top feed
- Short-circuit withstand 50 kA for 0.5 s
- 1.6 mm galvanised steel pan and rail
