630A 48 Pole Encapsulated MCCB Chassis, Double-Sided, Top Feed
Regular price
$1,864.27
ex. GST
$2,050.70
inc. GST
Out of stock
Contact us for lead time
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock

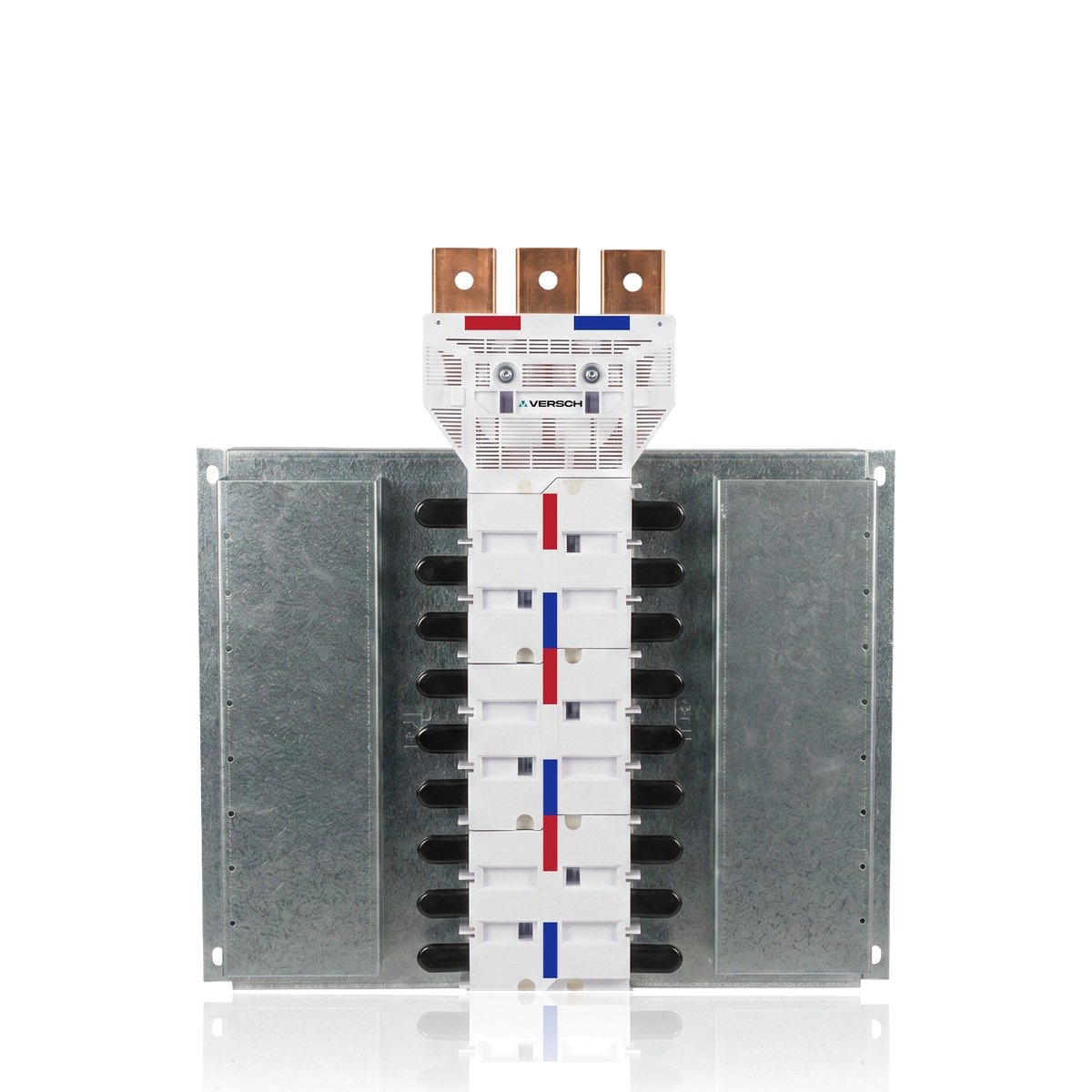

Versch TRO6303548TF NYBUS 630A 48 Pole Encapsulated MCCB Chassis, Double-Sided, Top Feed
The Versch TRO6303548TF is a NYBUS 630 A encapsulated MCCB chassis with 48 outgoing poles at 35 mm pitch in a double-sided layout with top feed. It carries 6.35 × 40 mm copper busbars rated for 50 kA for 0.5 s, giving a compact, pre-assembled MCCB distribution section for switchboards.
| Brand | Versch |
|---|---|
| Part number | TRO6303548TF |
| Range | NYBUS 630 encapsulated MCCB chassis |
| Rated busbar current | 630 A |
| Outgoing poles | 48 |
| Pole pitch | 35 mm |
| Configuration | Double-Sided |
| Feed arrangement | Top Feed |
| Main busbar | 6.35 × 40 mm copper (C110, half-hard) |
| Mounting pan and rail | 1.6 mm galvanised steel |
| Short-circuit withstand | 50 kA for 0.5 s |
| Overall length | 1003 mm |
| Dimension drawing | TRO-63035-XX Rev A |
- 630 A rated 6.35 × 40 mm copper busbars
- 48 outgoing poles at 35 mm pitch
- Double-Sided layout, top feed
- Short-circuit withstand 50 kA for 0.5 s
- 1.6 mm galvanised steel pan and rail
Order online from TROPAC or contact our sales team for pricing and lead time.
TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
