96P 400A Encapsulated MCB Chassis, 18mm Pitch
Regular price
$1,144.53
ex. GST
$1,258.98
inc. GST
Out of stock
Contact us for lead time
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock

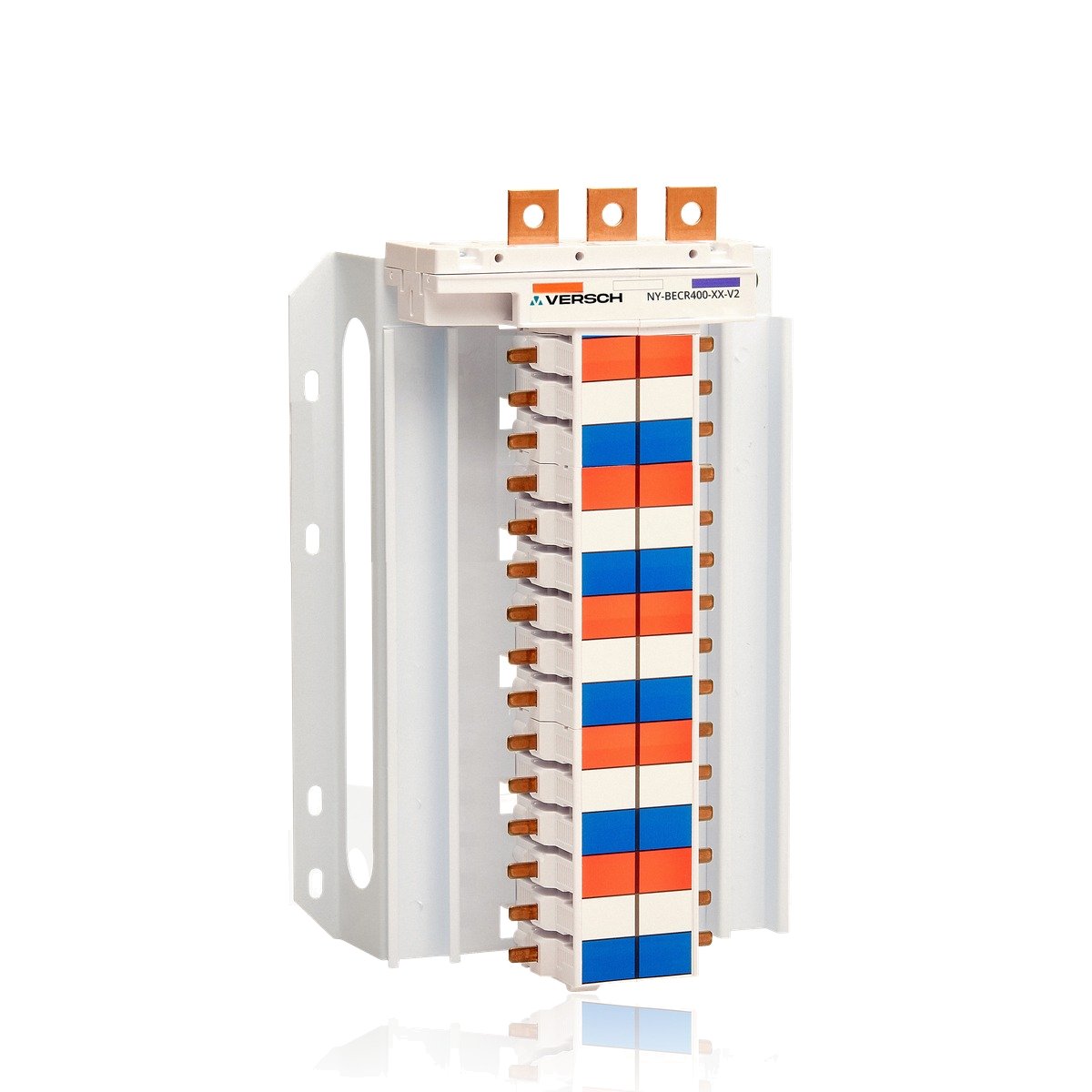

Versch NY-BECR400-96-v2 96P 400A Encapsulated MCB Chassis, 18mm Pitch
The Versch NY-BECR400-96-v2 is a 400 A V2 encapsulated MCB chassis with 96 outgoing poles at 18 mm pitch and top feed. It suits LS Electric BKN-b, BKJ and RKS-b MCBs and gives a compact, pre-assembled MCB distribution section for switchboards.
| Brand | Versch |
|---|---|
| Part number | NY-BECR400-96-v2 |
| Range | V2 encapsulated MCB chassis |
| Rated busbar current | 400 A |
| Outgoing poles | 96 |
| Pitch | 18 mm |
| Feed arrangement | Top Feed |
| Suits | LS Electric BKN-b, BKJ and RKS-b MCBs |
| Busbar | Copper (C110, half-hard), heavier section than 250 A |
| Mounting pan | 1.2 mm Zincseal steel, pearl white powder coat |
| Overall length | 927 mm |
| DIN rail length | 862 mm |
| Dimension drawing | NY-BECR250XXV2 (250 A outline) |
- 400 A rated encapsulated copper busbar
- 96 outgoing poles at 18 mm pitch
- Suits LS Electric BKN-b, BKJ and RKS-b MCBs
- Top feed arrangement
Order online from TROPAC or contact our sales team for pricing and lead time.
TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
