72P 400A Encapsulated MCB Chassis, 18mm Pitch
Regular price
$927.29
ex. GST
$1,020.02
inc. GST
Restocking
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock
Updated
2 minutes ago
Shipping & pickup →72P 400A Encapsulated MCB Chassis, 18mm Pitch

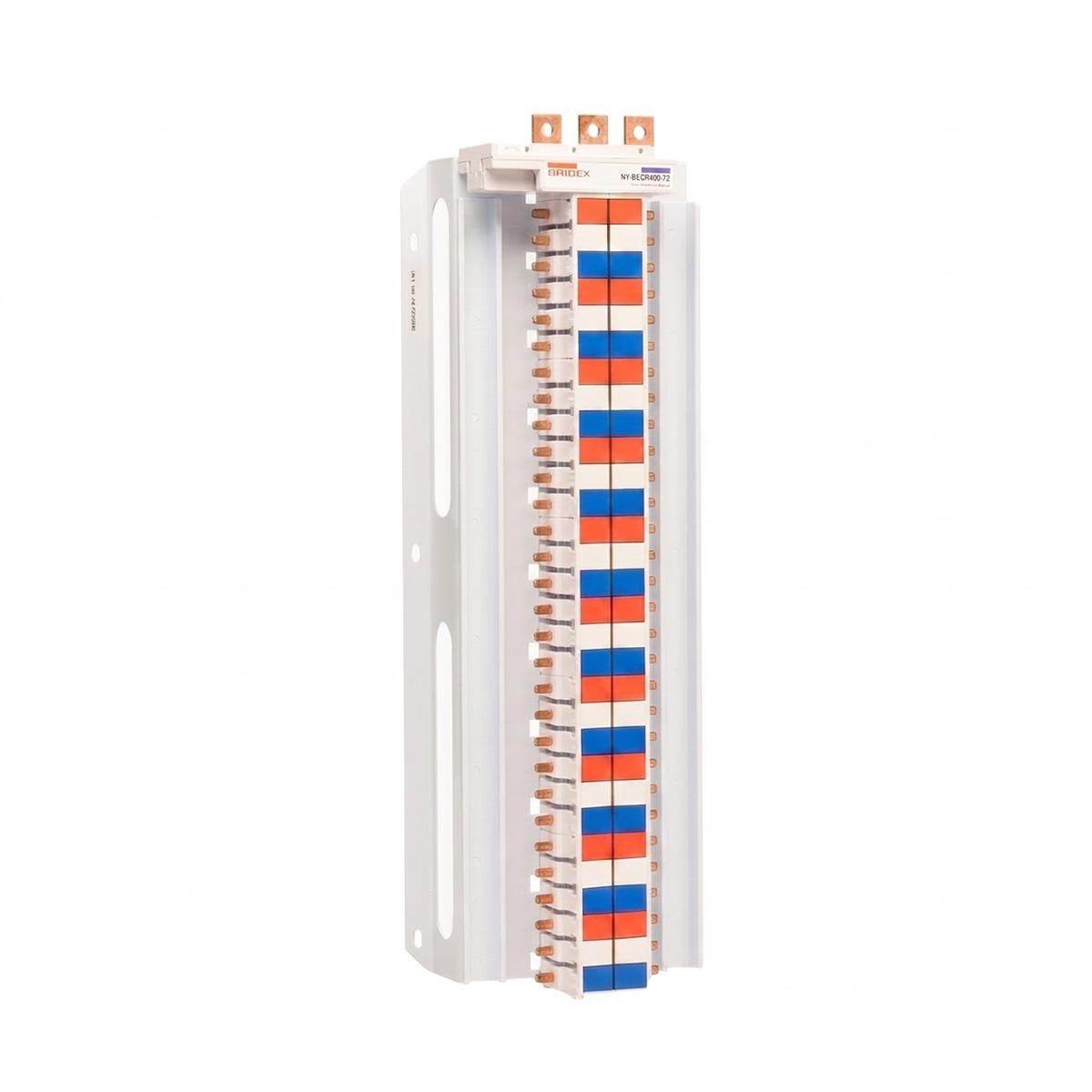

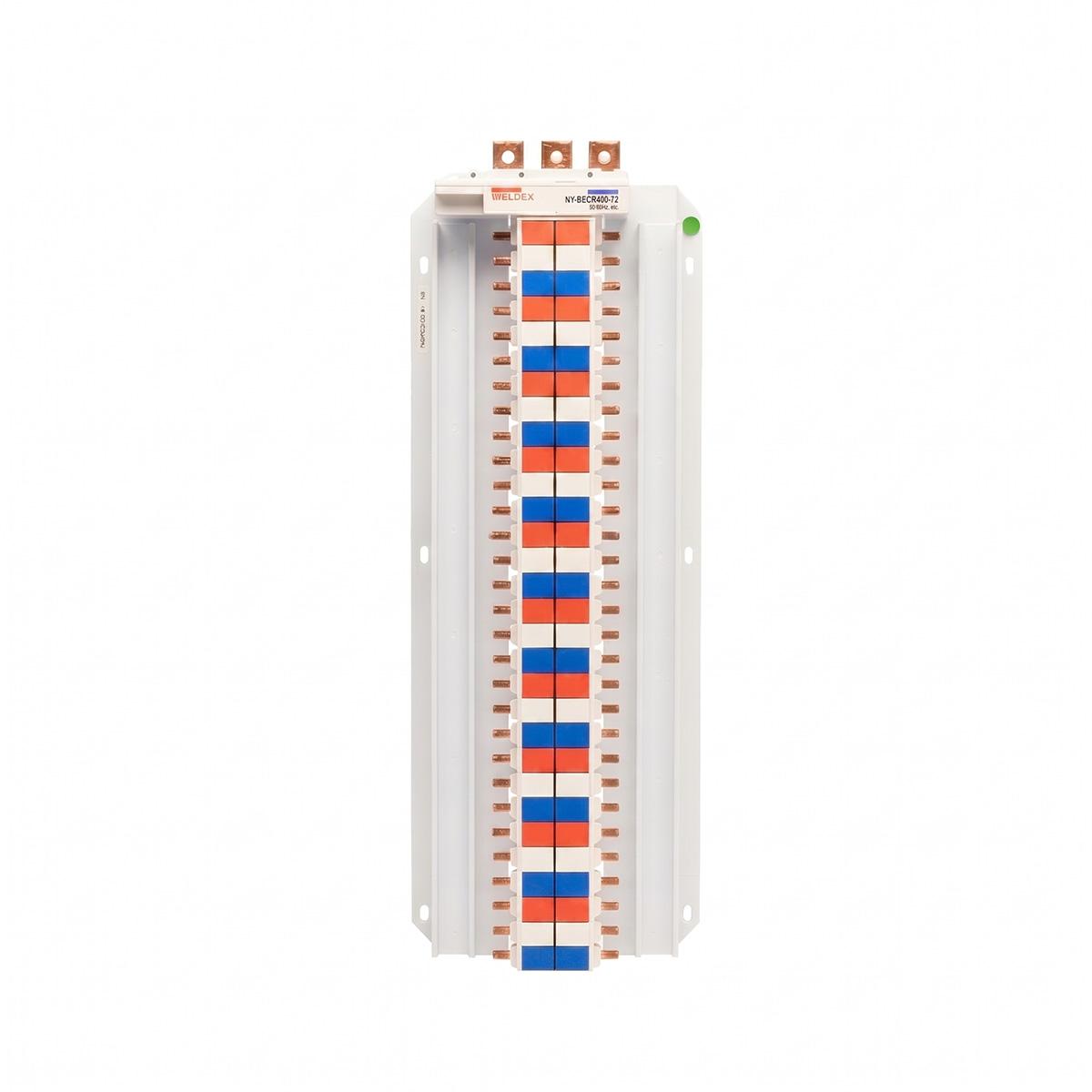

The Versch NY-BECR400-72-V2 is a 400 A top-feed encapsulated MCB chassis with 72 poles at 18 mm pitch, designed to take LS Electric BKN-b, BKJ and RKS-b MCBs in distribution boards and switchboards.
| Brand | Versch |
|---|---|
| Part number | NY-BECR400-72-V2 |
| Range | V2 encapsulated MCB chassis |
| Rated busbar current | 400 A |
| Outgoing poles | 72 |
| Pitch | 18 mm |
| Feed arrangement | Top Feed |
| Suits | LS Electric BKN-b, BKJ and RKS-b MCBs |
| Busbar | Copper (C110, half-hard), heavier section than 250 A |
| Mounting pan | 1.2 mm Zincseal steel, pearl white powder coat |
| Overall length | 711 mm |
| DIN rail length | 646 mm |
| Dimension drawing | NY-BECR250XXV2 (250 A outline) |
- Rated 400 A copper busbar (heavier section than the 250 A range)
- Suits LS Electric BKN-b, BKJ and RKS-b MCBs
- Finger caps fitted to all exposed busbar fingers
- Top-feed as standard
- V2 design with a raised DIN rail compared with the original chassis
Order online from TROPAC or contact our team for switchboard-builder pricing and lead times.
