Versch NY-BECR400-48-LS MCB Chassis 400A, 18mm Pitch, Top Feed, for LS L-Series MCBs
Versch NY-BECR400-48-LS MCB Chassis 400A, 18mm Pitch, Top Feed, for LS L-Series MCBs

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Versch

48P 400A Encapsulated MCB Chassis, 18mm Pitch, L-Series

SKU
$741.97 ex. GST $816.17 inc. GST
In stock
2 in stock across 3 warehouses
Dimensional Drawing PDF

Versch NY-BECR400-48-LS 48P 400A Encapsulated MCB Chassis, 18mm Pitch, L-Series

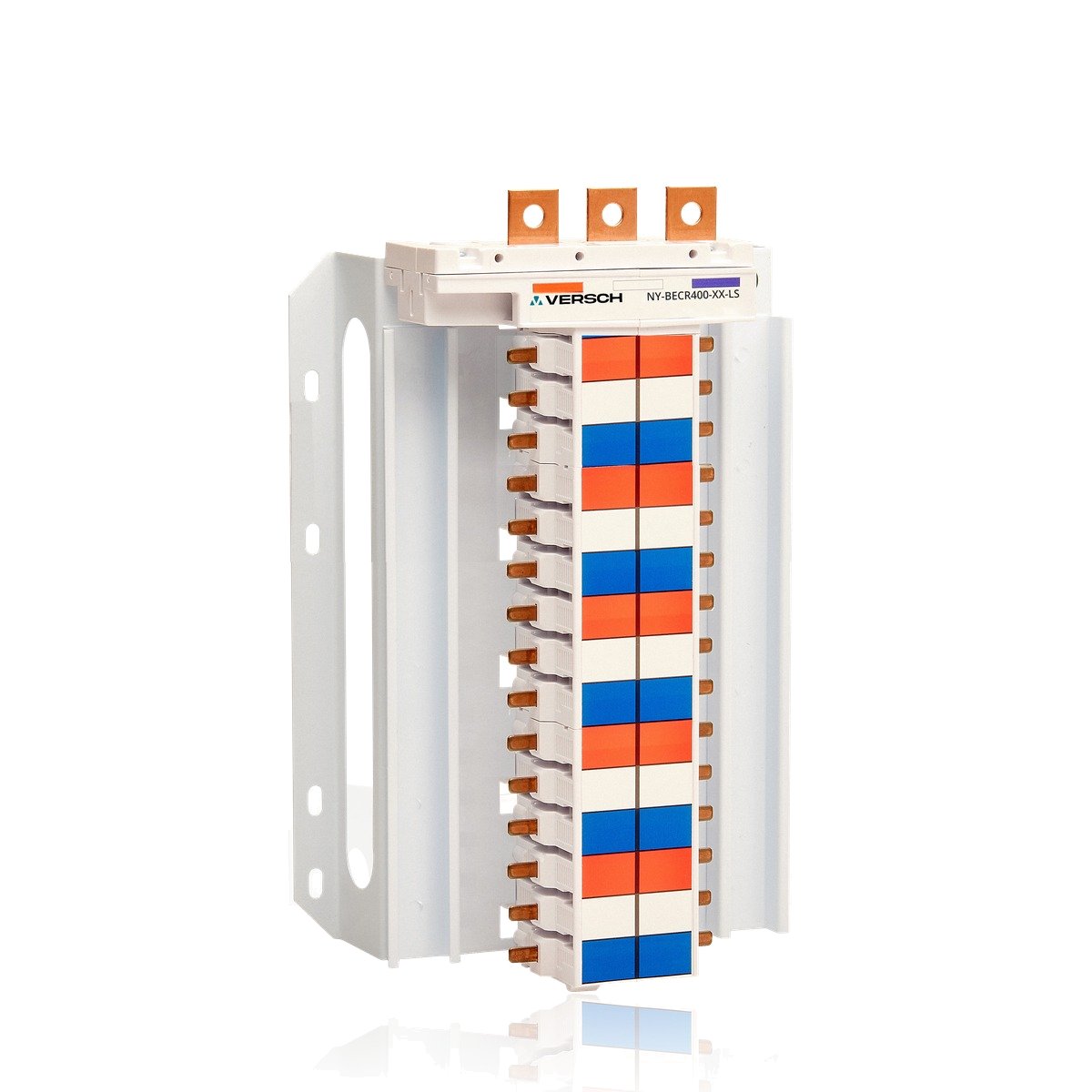

The Versch NY-BECR400-48-LS is a 400 A encapsulated MCB chassis with 48 outgoing poles at 18 mm pitch and top feed, built to suit LS Electric L-Series MCBs, including LB63HW. It gives a compact, pre-assembled MCB distribution section for switchboards.

Brand Versch
Part number NY-BECR400-48-LS
Range LS encapsulated MCB chassis (L-Series)
Rated busbar current 400 A
Outgoing poles 48
Pitch 18 mm
Feed arrangement Top Feed
Suits LS Electric L-Series MCBs, including LB63HW
Busbar Copper (C110, half-hard), heavier section than 250 A
Overall length 495 mm
DIN rail length 430 mm
Dimension drawing NY-BECR250-XX-LS Rev C
  • 400 A rated encapsulated copper busbar
  • 48 outgoing poles at 18 mm pitch
  • Suits LS Electric L-Series MCBs, including LB63HW
  • Top Feed arrangement

Order online from TROPAC or contact our sales team for pricing and availability.

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
