24P 400A Encapsulated MCB Chassis, 27mm Pitch, L-Series

Standards & Conformities

Documents

Full Description

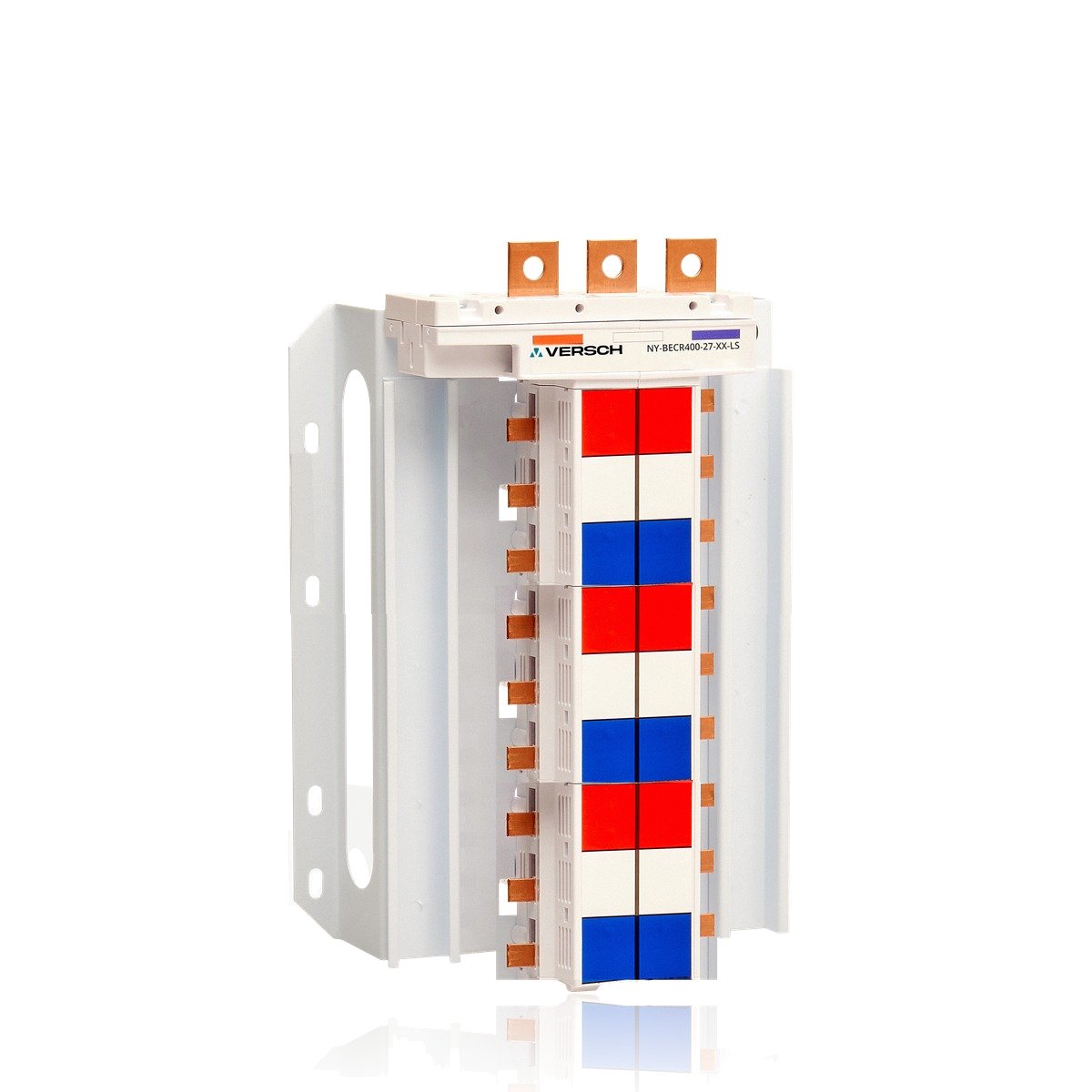

Versch NY-BECR400-27-24-LS 24P 400A Encapsulated MCB Chassis, 27mm Pitch, L-Series

The Versch NY-BECR400-27-24-LS is a 400 A encapsulated MCB chassis with 24 outgoing poles at 27 mm pitch and top feed, built to suit LS Electric L-Series MCBs, including LB63HW. It gives a compact, pre-assembled MCB distribution section for switchboards.

Brand	Versch
Part number	NY-BECR400-27-24-LS
Range	LS encapsulated MCB chassis (L-Series)
Rated busbar current	400 A
Outgoing poles	24
Pitch	27 mm
Feed arrangement	Top Feed
Suits	LS Electric L-Series MCBs, including LB63HW
Busbar	Copper (C110, half-hard), heavier section than 250 A

• 400 A rated encapsulated copper busbar
• 24 outgoing poles at 27 mm pitch
• Suits LS Electric L-Series MCBs, including LB63HW
• Top Feed arrangement

Order online from TROPAC or contact our sales team for pricing and availability.
