Home » Online Clearance » 24P 400A 18mm Pitch Encapsulated MCB Chassis, Dual Feed

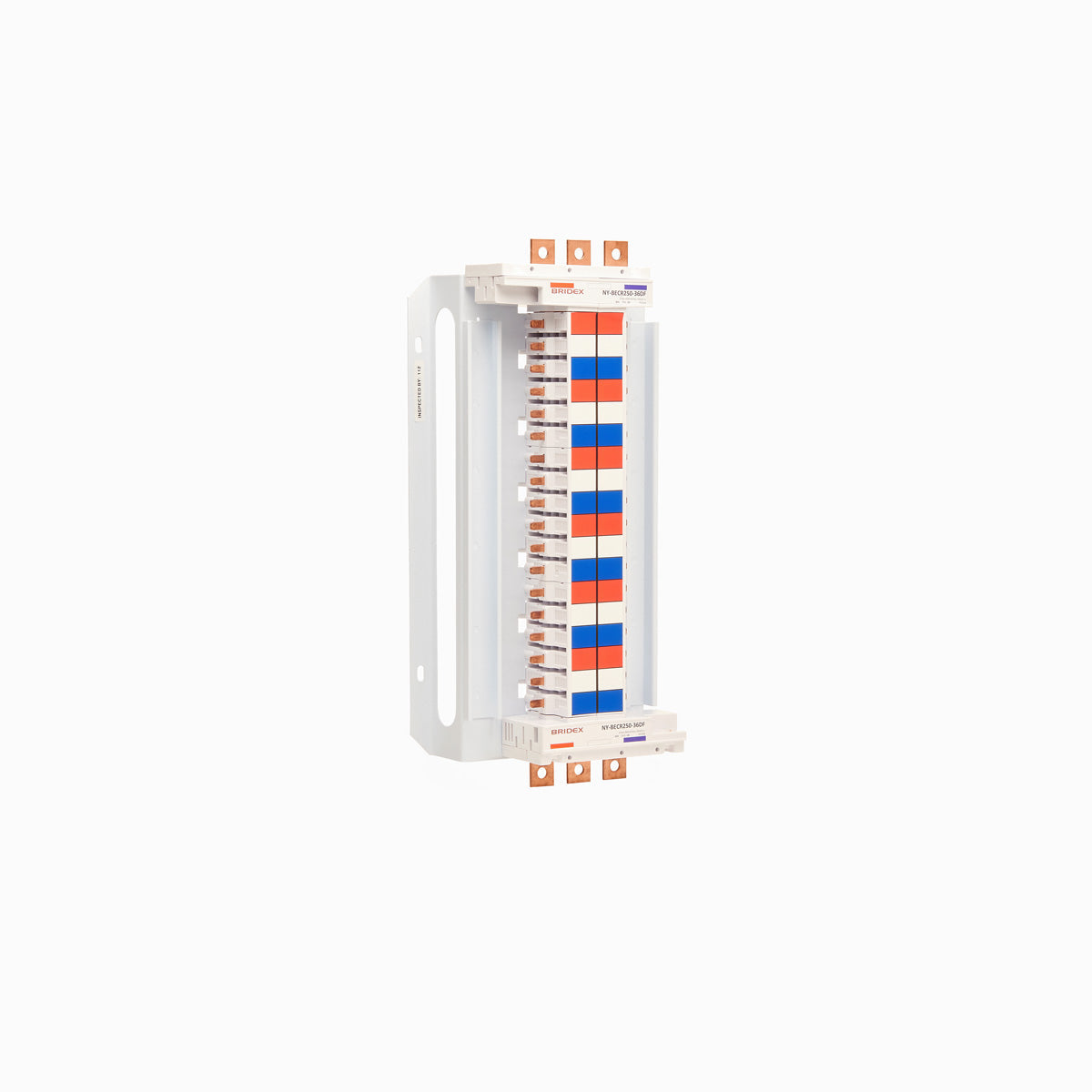

Versch NY-BECR400-24DF 24P 400A 18mm Pitch Encapsulated MCB Chassis, Dual Feed – End of Life Clearance – image 1
Versch NY-BECR400-24DF 24P 400A 18mm Pitch Encapsulated MCB Chassis, Dual Feed – End of Life Clearance – image 2
Versch NY-BECR400-24DF 24P 400A 18mm Pitch Encapsulated MCB Chassis, Dual Feed – End of Life Clearance – image 1
Versch NY-BECR400-24DF 24P 400A 18mm Pitch Encapsulated MCB Chassis, Dual Feed – End of Life Clearance – image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Versch

24P 400A 18mm Pitch Encapsulated MCB Chassis, Dual Feed

SKU
$300 ex. GST $330 inc. GST
-40% Clearance $499.79 AUD
$300 ex. GST $330 inc. GST

Online Clearance Pricing only. Non-cancellable and non-returnable.

In stock
1 in stock across 3 warehouses
Dimensional Drawing PDF

Versch NY-BECR400-24DF 24P 400A 18mm Pitch Encapsulated MCB Chassis, Dual Feed

The Versch NY-BECR400-24DF is a 400 A dual-feed encapsulated MCB chassis with 24 outgoing poles at 18 mm pitch. It provides a compact, pre-assembled MCB distribution section for switchboards and distribution boards, with a supply connection at each end.

Brand Versch
Part number NY-BECR400-24DF
Range Standard (V1) encapsulated MCB chassis
Rated busbar current 400 A
Outgoing poles 24
Pitch 18 mm
Feed arrangement Dual Feed
Suits LS Electric BKN MCBs (original series)
  • 400 A rated encapsulated copper busbar
  • 24 outgoing poles at 18 mm pitch
  • Dual Feed arrangement
  • Suits LS Electric BKN MCBs (original series)

Order online from TROPAC or contact our sales team for pricing and availability.

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
