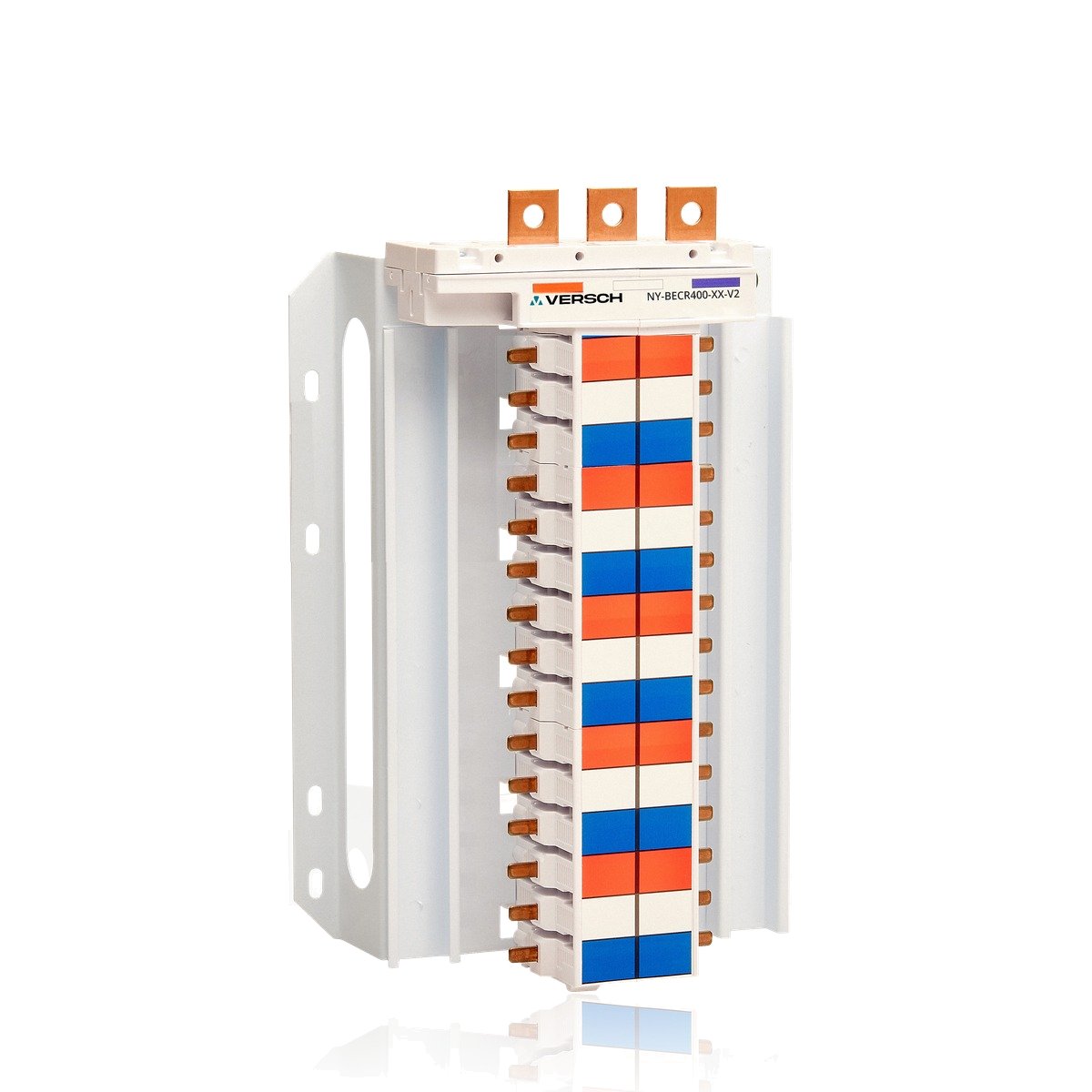

Versch NY-BECR400-12-V2 12P 400A Encapsulated MCB Chassis, 18mm Pitch
The Versch NY-BECR400-12-V2 is a 400 A V2 encapsulated MCB chassis with 12 outgoing poles at 18 mm pitch and top feed. It suits LS Electric BKN-b, BKJ and RKS-b MCBs and gives a compact, pre-assembled MCB distribution section for switchboards.
| Brand | Versch |
|---|---|
| Part number | NY-BECR400-12-V2 |
| Range | V2 encapsulated MCB chassis |
| Rated busbar current | 400 A |
| Outgoing poles | 12 |
| Pitch | 18 mm |
| Feed arrangement | Top Feed |
| Suits | LS Electric BKN-b, BKJ and RKS-b MCBs |
| Busbar | Copper (C110, half-hard), heavier section than 250 A |
| Mounting pan | 1.2 mm Zincseal steel, pearl white powder coat |
| Overall length | 171 mm |
| DIN rail length | 106 mm |
| Dimension drawing | NY-BECR250XXV2 (250 A outline) |
- 400 A rated encapsulated copper busbar
- 12 outgoing poles at 18 mm pitch
- Suits LS Electric BKN-b, BKJ and RKS-b MCBs
- Top feed arrangement
