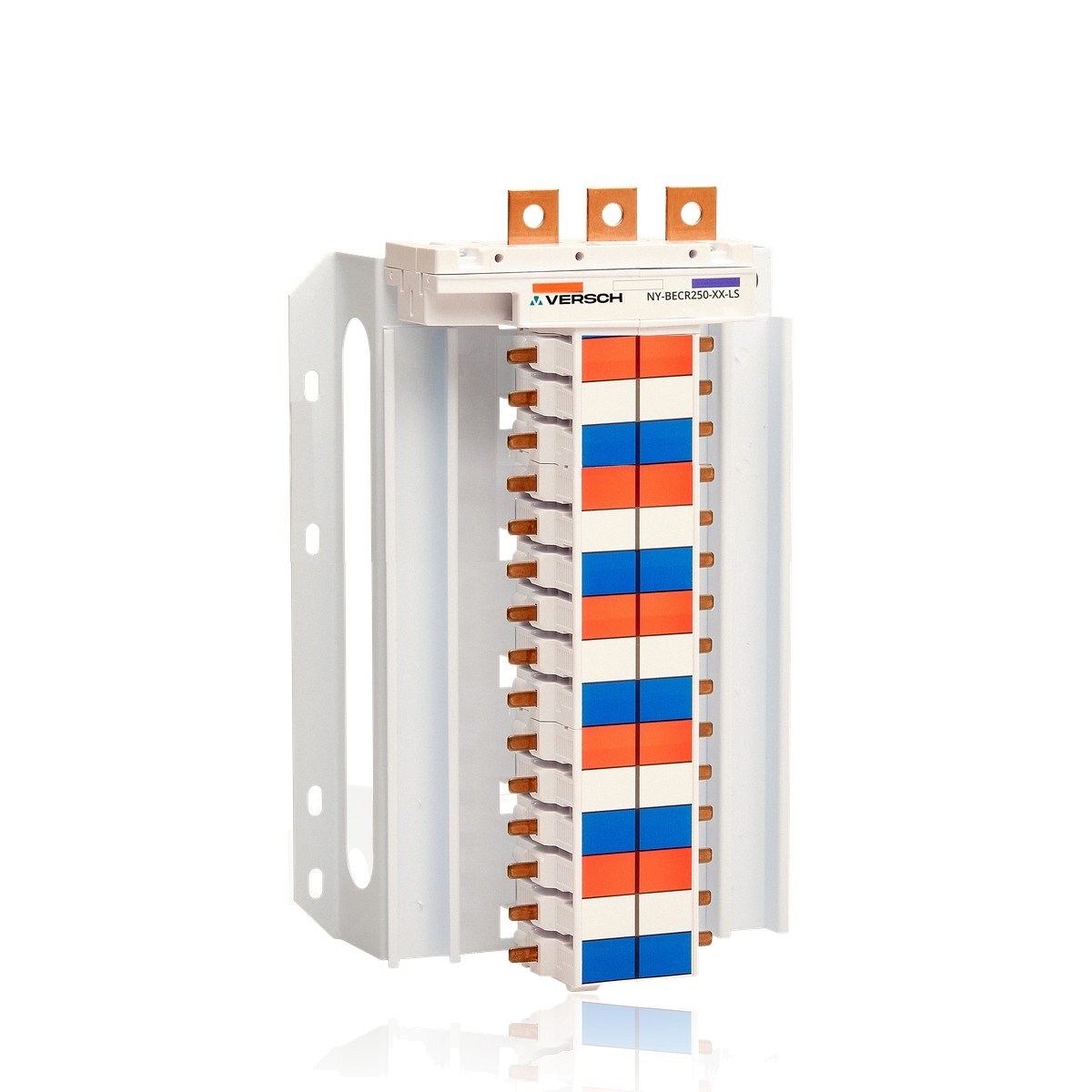

Versch NY-BECR250-72-LS MCB Chassis 250A, 18mm Pitch, Top Feed, for LS L-Series MCBs
Versch NY-BECR250-72-LS MCB Chassis 250A, 18mm Pitch, Top Feed, for LS L-Series MCBs

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Versch

72P 250A Encapsulated MCB Chassis, 18mm Pitch, L-Series

SKU
$614.17 ex. GST $675.59 inc. GST
In stock
24 in stock across 3 warehouses
Dimensional Drawing PDF

Versch NY-BECR250-72-LS 72P 250A Encapsulated MCB Chassis, 18mm Pitch, L-Series

The Versch NY-BECR250-72-LS is a 250 A encapsulated MCB chassis with 72 outgoing poles at 18 mm pitch and top feed, built to suit LS Electric L-Series MCBs, including LB63HW. It gives a compact, pre-assembled MCB distribution section for switchboards.

Brand Versch
Part number NY-BECR250-72-LS
Range LS encapsulated MCB chassis (L-Series)
Rated busbar current 250 A
Outgoing poles 72
Pitch 18 mm
Feed arrangement Top Feed
Suits LS Electric L-Series MCBs, including LB63HW
Busbar Copper (C110, half-hard)
Overall length 711 mm
DIN rail length 646 mm
Dimension drawing NY-BECR250-XX-LS Rev C
  • 250 A rated encapsulated copper busbar
  • 72 outgoing poles at 18 mm pitch
  • Suits LS Electric L-Series MCBs, including LB63HW
  • Top Feed arrangement

Order online from TROPAC or contact our sales team for pricing and availability.

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
