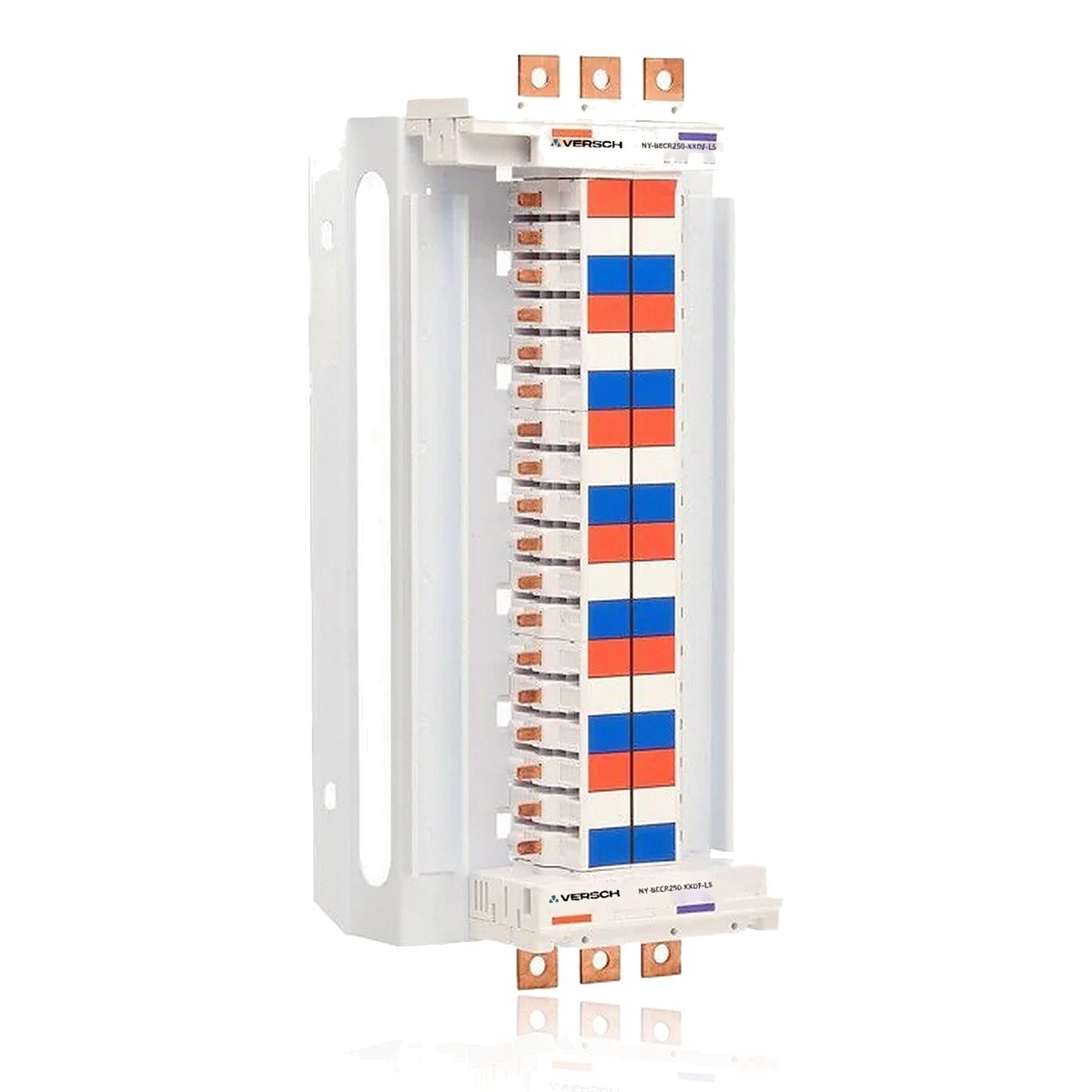

Versch NY-BECR250-48DF-LS MCB Chassis 250A, 18mm Pitch, Dual Feed, for LS L-Series MCBs
Versch NY-BECR250-48DF-LS MCB Chassis 250A, 18mm Pitch, Dual Feed, for LS L-Series MCBs

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Versch

48P 250A Encapsulated MCB Chassis, 18mm Pitch, Dual Feed, L-Series

SKU
$446.51 ex. GST $491.16 inc. GST
In stock
6 in stock across 3 warehouses

Versch NY-BECR250-48DF-LS 48P 250A Encapsulated MCB Chassis, 18mm Pitch, Dual Feed, L-Series

The Versch NY-BECR250-48DF-LS is a 250 A encapsulated MCB chassis with 48 outgoing poles at 18 mm pitch and dual feed, built to suit LS Electric L-Series MCBs, including LB63HW. It gives a compact, pre-assembled MCB distribution section for switchboards, with a supply connection at each end.

Brand Versch
Part number NY-BECR250-48DF-LS
Range LS encapsulated MCB chassis (L-Series)
Rated busbar current 250 A
Outgoing poles 48
Pitch 18 mm
Feed arrangement Dual Feed
Suits LS Electric L-Series MCBs, including LB63HW
Busbar Copper (C110, half-hard)
  • 250 A rated encapsulated copper busbar
  • 48 outgoing poles at 18 mm pitch
  • Suits LS Electric L-Series MCBs, including LB63HW
  • Dual Feed arrangement
