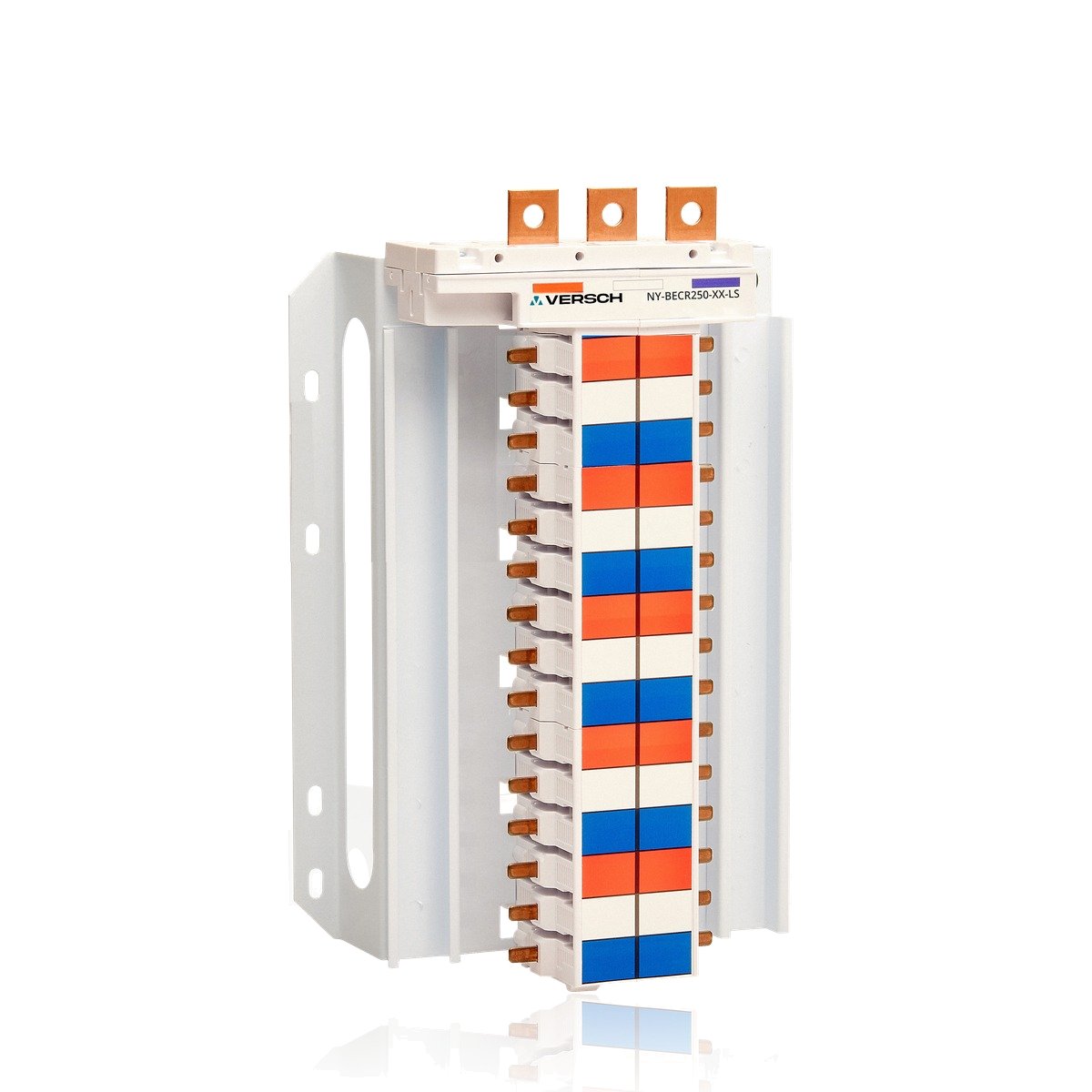

Versch NY-BECR250-42-LS MCB Chassis 250A, 18mm Pitch, Top Feed, for LS L-Series MCBs
Versch NY-BECR250-42-LS MCB Chassis 250A, 18mm Pitch, Top Feed, for LS L-Series MCBs

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Versch

42P 250A Encapsulated MCB Chassis, 18mm Pitch, L-Series

SKU
$397.62 ex. GST $437.38 inc. GST
In stock
3 in stock across 3 warehouses
Dimensional Drawing PDF

Versch NY-BECR250-42-LS 42P 250A Encapsulated MCB Chassis, 18mm Pitch, L-Series

The Versch NY-BECR250-42-LS is a 250 A encapsulated MCB chassis with 42 outgoing poles at 18 mm pitch and top feed, built to suit LS Electric L-Series MCBs, including LB63HW. It gives a compact, pre-assembled MCB distribution section for switchboards.

Brand Versch
Part number NY-BECR250-42-LS
Range LS encapsulated MCB chassis (L-Series)
Rated busbar current 250 A
Outgoing poles 42
Pitch 18 mm
Feed arrangement Top Feed
Suits LS Electric L-Series MCBs, including LB63HW
Busbar Copper (C110, half-hard)
Overall length 441 mm
DIN rail length 376 mm
Dimension drawing NY-BECR250-XX-LS Rev C
  • 250 A rated encapsulated copper busbar
  • 42 outgoing poles at 18 mm pitch
  • Suits LS Electric L-Series MCBs, including LB63HW
  • Top Feed arrangement
