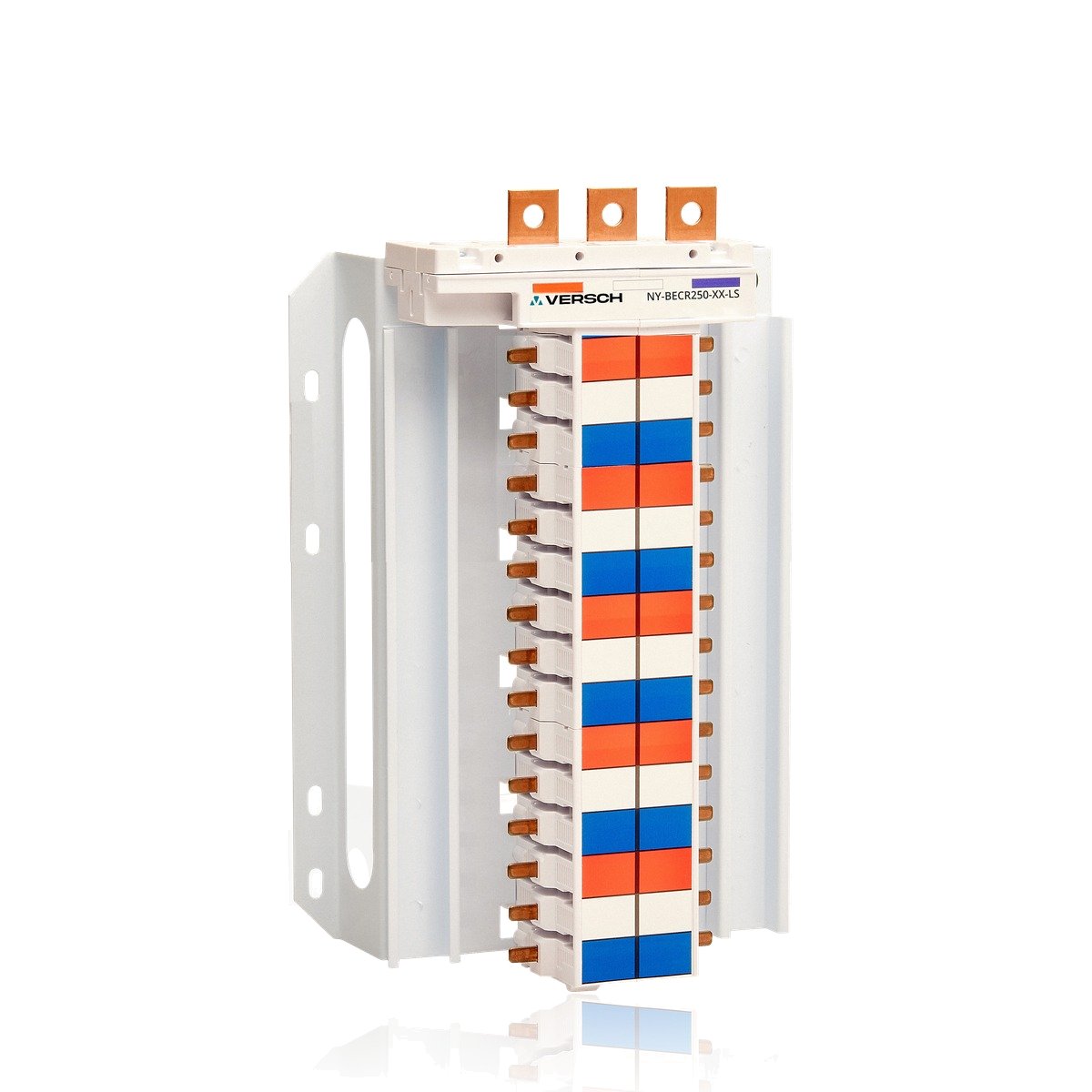

Versch NY-BECR250-30-LS MCB Chassis 250A, 18mm Pitch, Top Feed, for LS L-Series MCBs
Versch NY-BECR250-30-LS MCB Chassis 250A, 18mm Pitch, Top Feed, for LS L-Series MCBs

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Versch

30P 250A Encapsulated MCB Chassis, 18mm Pitch, L-Series

SKU
$313.67 ex. GST $345.04 inc. GST
In stock
8 in stock across 3 warehouses
Dimensional Drawing PDF

Versch NY-BECR250-30-LS 30P 250A Encapsulated MCB Chassis, 18mm Pitch, L-Series

The Versch NY-BECR250-30-LS is a 250 A encapsulated MCB chassis with 30 outgoing poles at 18 mm pitch and top feed, built to suit LS Electric L-Series MCBs, including LB63HW. It gives a compact, pre-assembled MCB distribution section for switchboards.

Brand Versch
Part number NY-BECR250-30-LS
Range LS encapsulated MCB chassis (L-Series)
Rated busbar current 250 A
Outgoing poles 30
Pitch 18 mm
Feed arrangement Top Feed
Suits LS Electric L-Series MCBs, including LB63HW
Busbar Copper (C110, half-hard)
Overall length 333 mm
DIN rail length 268 mm
Dimension drawing NY-BECR250-XX-LS Rev C
  • 250 A rated encapsulated copper busbar
  • 30 outgoing poles at 18 mm pitch
  • Suits LS Electric L-Series MCBs, including LB63HW
  • Top Feed arrangement
