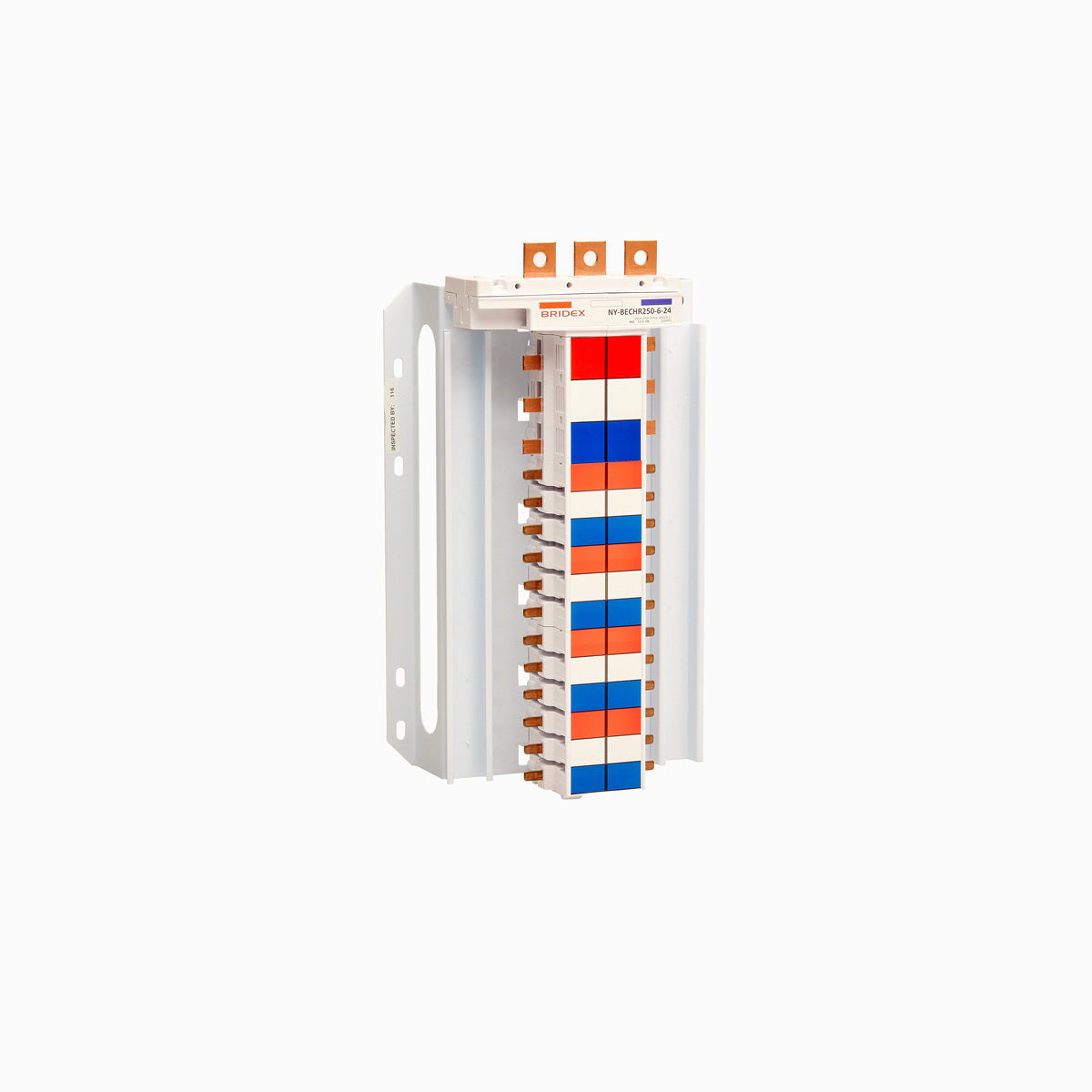

Versch NY-BECHR400-6-18 24P 400A Hybrid MCB Chassis (6P @ 27mm + 18P @ 18mm) – End of Life Clearance – image 1

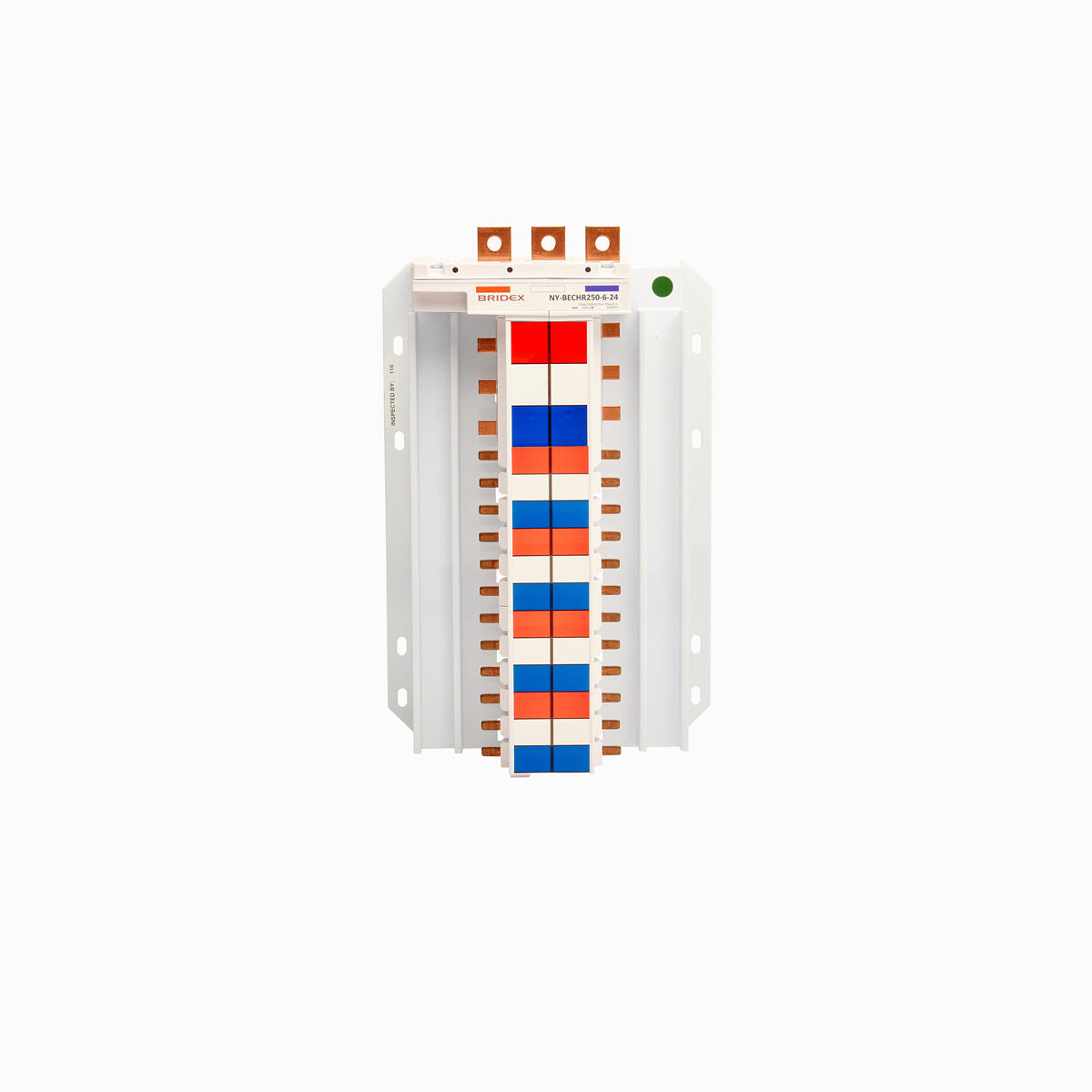

Versch NY-BECHR400-6-18 24P 400A Hybrid MCB Chassis (6P @ 27mm + 18P @ 18mm) – End of Life Clearance – image 2
Versch NY-BECHR400-6-18 24P 400A Hybrid MCB Chassis (6P @ 27mm + 18P @ 18mm) – End of Life Clearance – image 1
Versch NY-BECHR400-6-18 24P 400A Hybrid MCB Chassis (6P @ 27mm + 18P @ 18mm) – End of Life Clearance – image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Versch

24P 400A Hybrid MCB Chassis (6P @ 27mm + 18P @ 18mm)

SKU
$273 ex. GST $300.30 inc. GST
-40% Clearance $455.34 AUD
$273 ex. GST $300.30 inc. GST

Online Clearance Pricing only. Non-cancellable and non-returnable.

In stock
1 in stock across 3 warehouses

Versch NY-BECHR400-6-18 24P 400A Hybrid MCB Chassis (6P @ 27mm + 18P @ 18mm)

The Versch NY-BECHR400-6-18 is a 400 A hybrid encapsulated MCB chassis with 24 outgoing poles: 6 at 27 mm pitch for larger frame MCBs and 18 at 18 mm pitch. It provides a compact, pre-assembled MCB distribution section for switchboards and distribution boards.

Brand Versch
Part number NY-BECHR400-6-18
Range Hybrid encapsulated MCB chassis (27 mm + 18 mm pitch)
Rated busbar current 400 A
Outgoing poles 24
Pitch 6 poles @ 27 mm + 18 poles @ 18 mm
Feed arrangement Top Feed
Suits LS Electric BKN MCBs (original series)
  • 400 A rated encapsulated copper busbar
  • 24 outgoing poles (6 @ 27 mm + 18 @ 18 mm)
  • Top Feed arrangement
  • Suits LS Electric BKN MCBs (original series)
