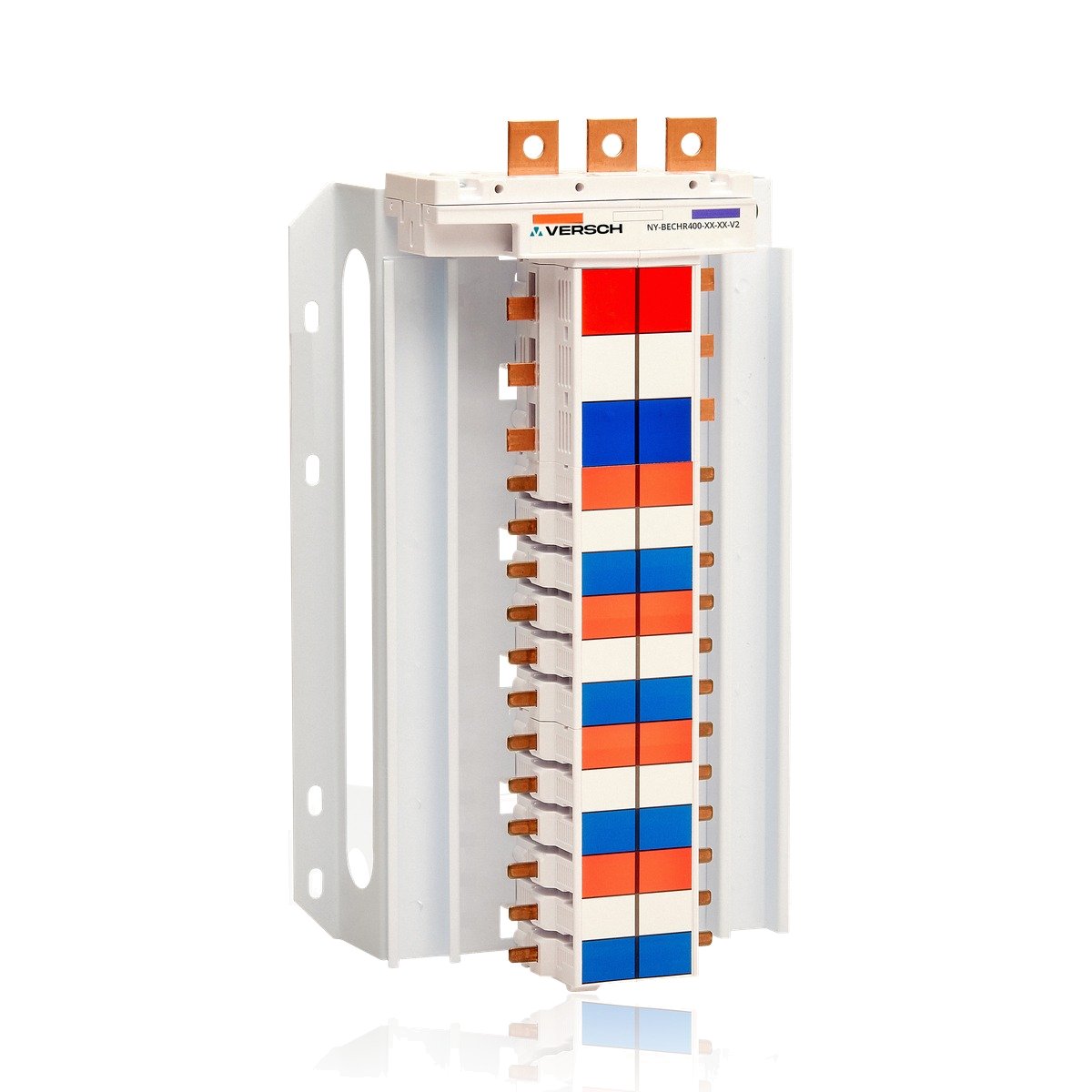

Versch NY-BECHR400-12-60-V2 72P 400A Hybrid Encapsulated MCB Chassis, 12P @ 27mm + 60P @ 18mm

The Versch NY-BECHR400-12-60-V2 is a 400 A V2 hybrid encapsulated MCB chassis with 72 outgoing poles: 12 at 27 mm pitch for LS Electric BKH MCBs and 60 at 18 mm pitch for BKN-b, BKJ and RKS-b MCBs. It combines larger-frame and standard MCBs on one pre-assembled chassis.

Brand	Versch
Part number	NY-BECHR400-12-60-V2
Range	V2 encapsulated MCB chassis (hybrid pitch)
Rated busbar current	400 A
Outgoing poles	72 (12 @ 27 mm + 60 @ 18 mm)
Pitch	12 poles @ 27 mm + 60 poles @ 18 mm
Feed arrangement	Top Feed
Suits	27 mm section: LS Electric BKH MCBs; 18 mm section: LS Electric BKN-b, BKJ and RKS-b MCBs
Busbar	Copper (C110, half-hard), heavier section than 250 A

• 400 A rated encapsulated copper busbar
• 12 poles at 27 mm pitch for LS BKH MCBs
• 60 poles at 18 mm pitch for LS BKN-b, BKJ and RKS-b MCBs
• Top feed arrangement

Order online from TROPAC or contact our sales team for pricing and lead time.
