42P 250A Hybrid Encapsulated MCB Chassis, 6P @ 27mm + 36P @ 18mm
Regular price
$391.18
ex. GST
$430.30
inc. GST
Out of stock
Contact us for lead time
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock

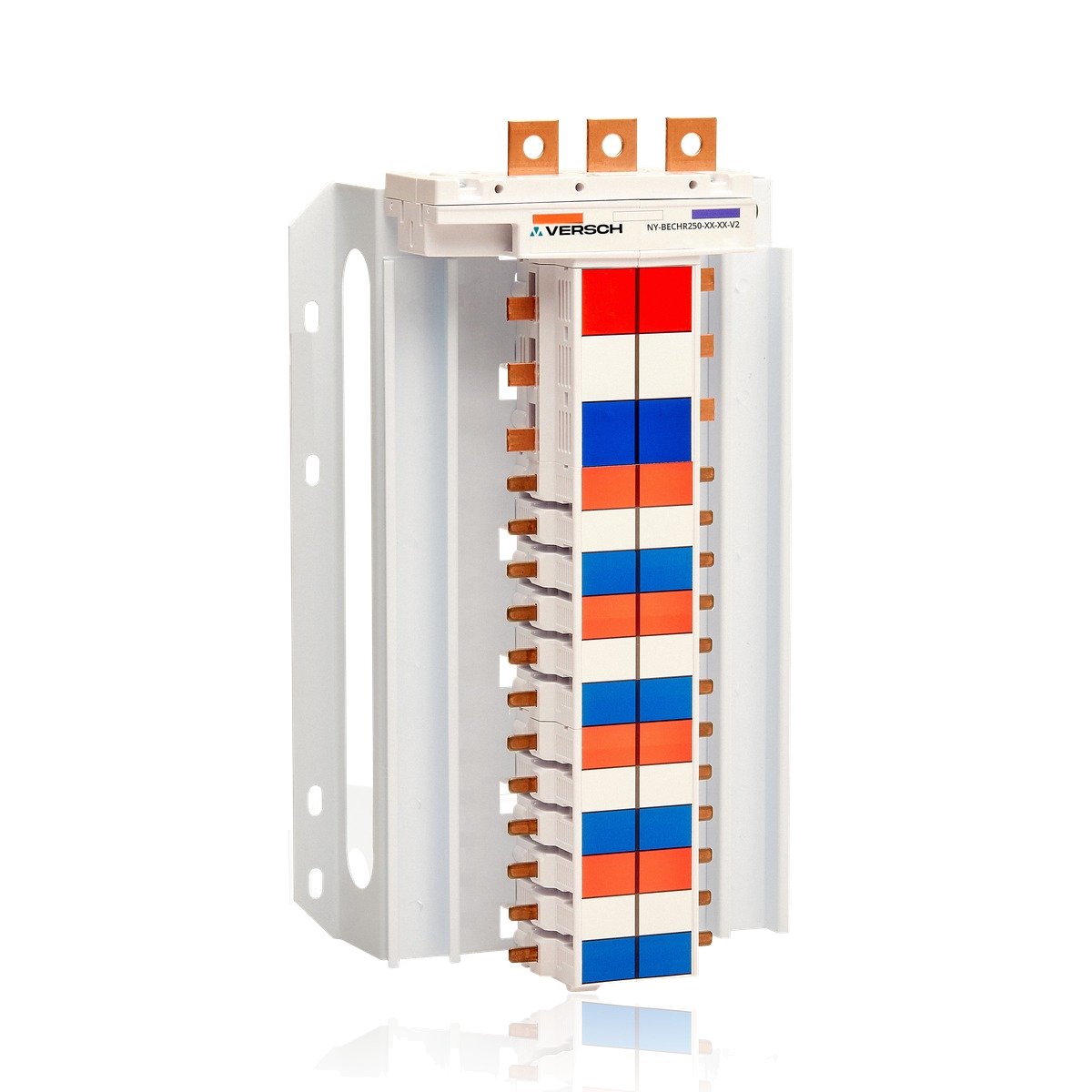

Versch NY-BECHR250-6-36-V2 42P 250A Hybrid Encapsulated MCB Chassis, 6P @ 27mm + 36P @ 18mm
The Versch NY-BECHR250-6-36-V2 is a 250 A V2 hybrid encapsulated MCB chassis with 42 outgoing poles: 6 at 27 mm pitch for LS Electric BKH MCBs and 36 at 18 mm pitch for BKN-b, BKJ and RKS-b MCBs. It combines larger-frame and standard MCBs on one pre-assembled chassis.
| Brand | Versch |
|---|---|
| Part number | NY-BECHR250-6-36-V2 |
| Range | V2 encapsulated MCB chassis (hybrid pitch) |
| Rated busbar current | 250 A |
| Outgoing poles | 42 (6 @ 27 mm + 36 @ 18 mm) |
| Pitch | 6 poles @ 27 mm + 36 poles @ 18 mm |
| Feed arrangement | Top Feed |
| Suits | 27 mm section: LS Electric BKH MCBs; 18 mm section: LS Electric BKN-b, BKJ and RKS-b MCBs |
| Busbar | Copper (C110, half-hard) |
- 250 A rated encapsulated copper busbar
- 6 poles at 27 mm pitch for LS BKH MCBs
- 36 poles at 18 mm pitch for LS BKN-b, BKJ and RKS-b MCBs
- Top feed arrangement
Order online from TROPAC or contact our sales team for pricing and lead time.
TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
