Flat Terminal Protection Cover to Suit S5 & S5F 250A - 400A Switches (1 per Side)

SKU
$29.55 ex. GST $32.51 inc. GST
In stock
110 in stock across 2 warehouses

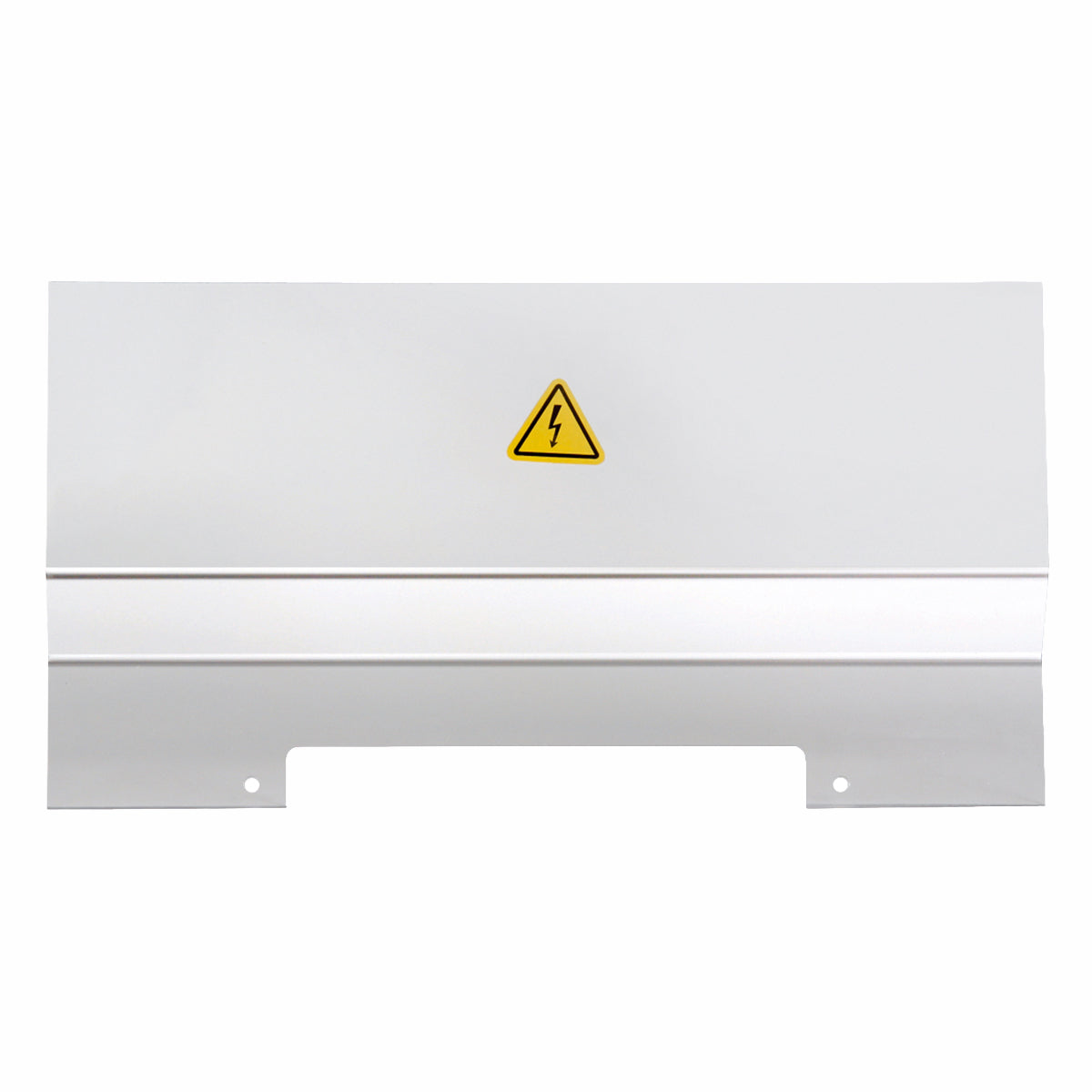

Telergon flat terminal protection cover for Size 1 S5 switch disconnectors and S5F changeover switches, 250A - 400A. Fits over the front of the terminals on one side of the switch to protect against accidental contact with live parts.

1 unit per side - order 2 to protect both the input and output terminals.

Flat cover, not a boxed shroud. It covers the front of the terminals but has no side walls or phase separation. For a boxed terminal shroud on 250A - 315A switches, see DS-CU11.

The S5 400A has offset terminals, so the boxed DS-CU11 shroud does not fit it and DS-CU12 is Telergon's terminal protection for the 400A. Where phase separation is required at 400A, specify the S6 400A (S6-04003PD0 3P / S6-04003ND0 3P+N), which takes DR-CU12/DR-CU13 terminal shrouds and DR-SF12/DR-SF13 phase barriers.
