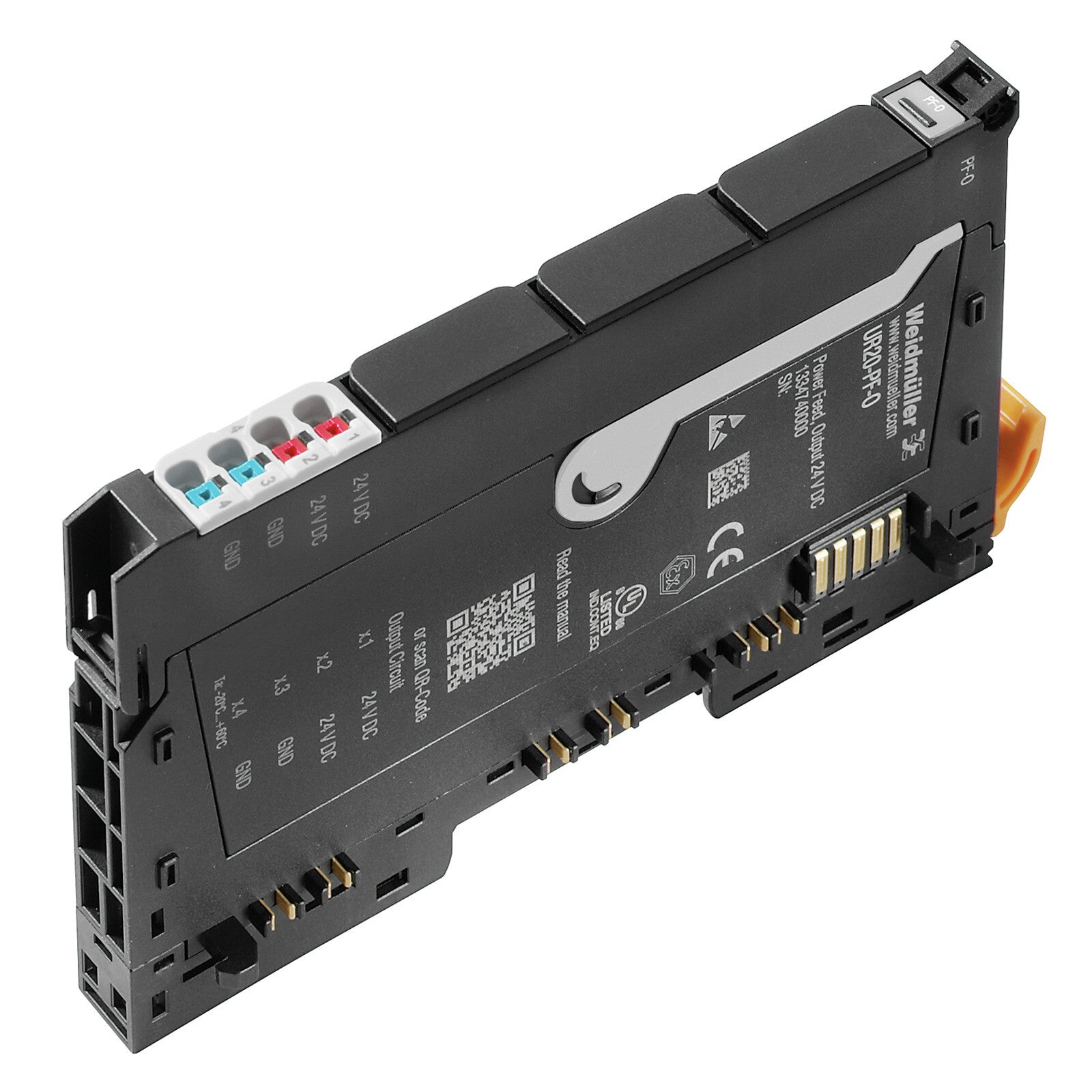

Remote I/O module, IP20, Power supply unit, 24 VDC-Output - UR20-PF-O

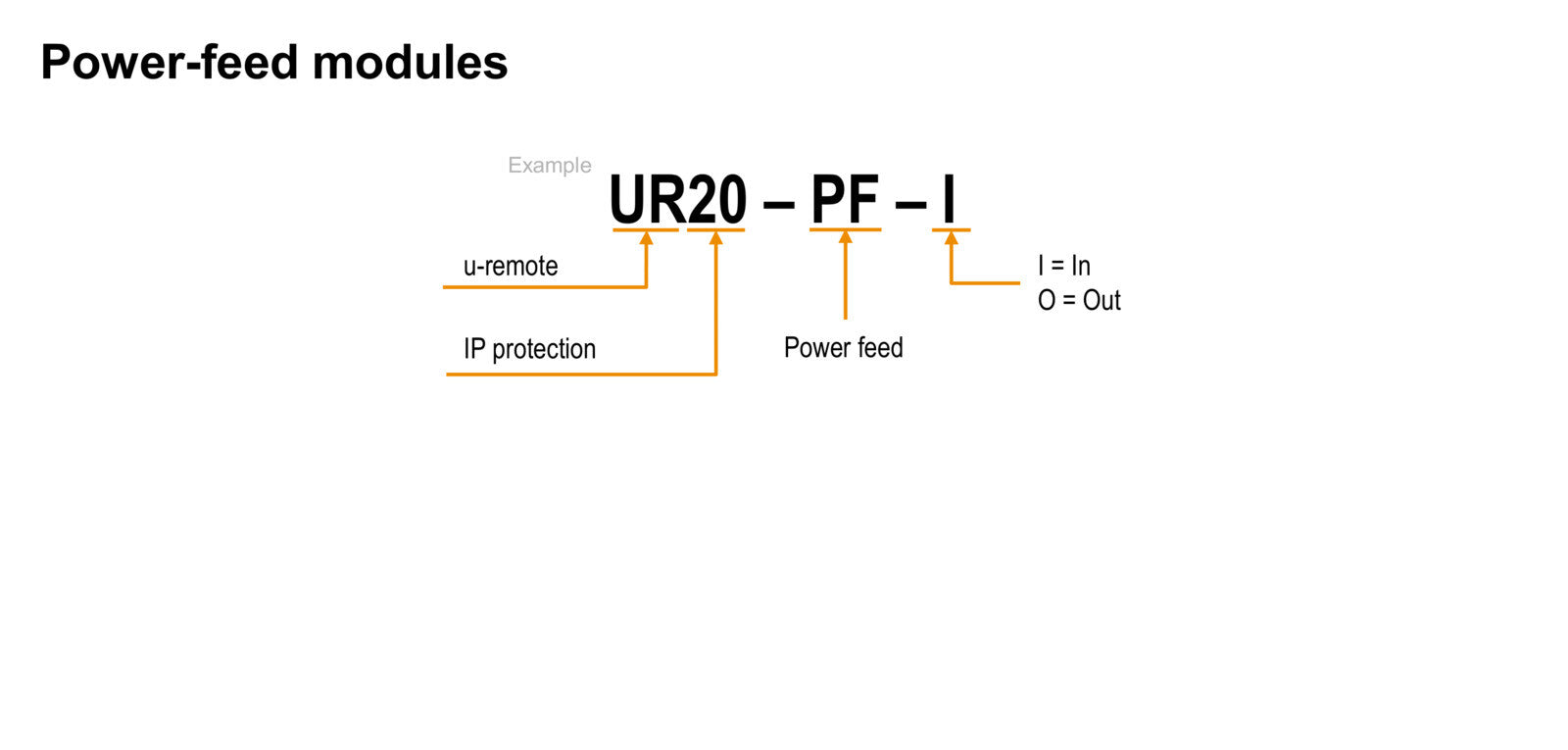

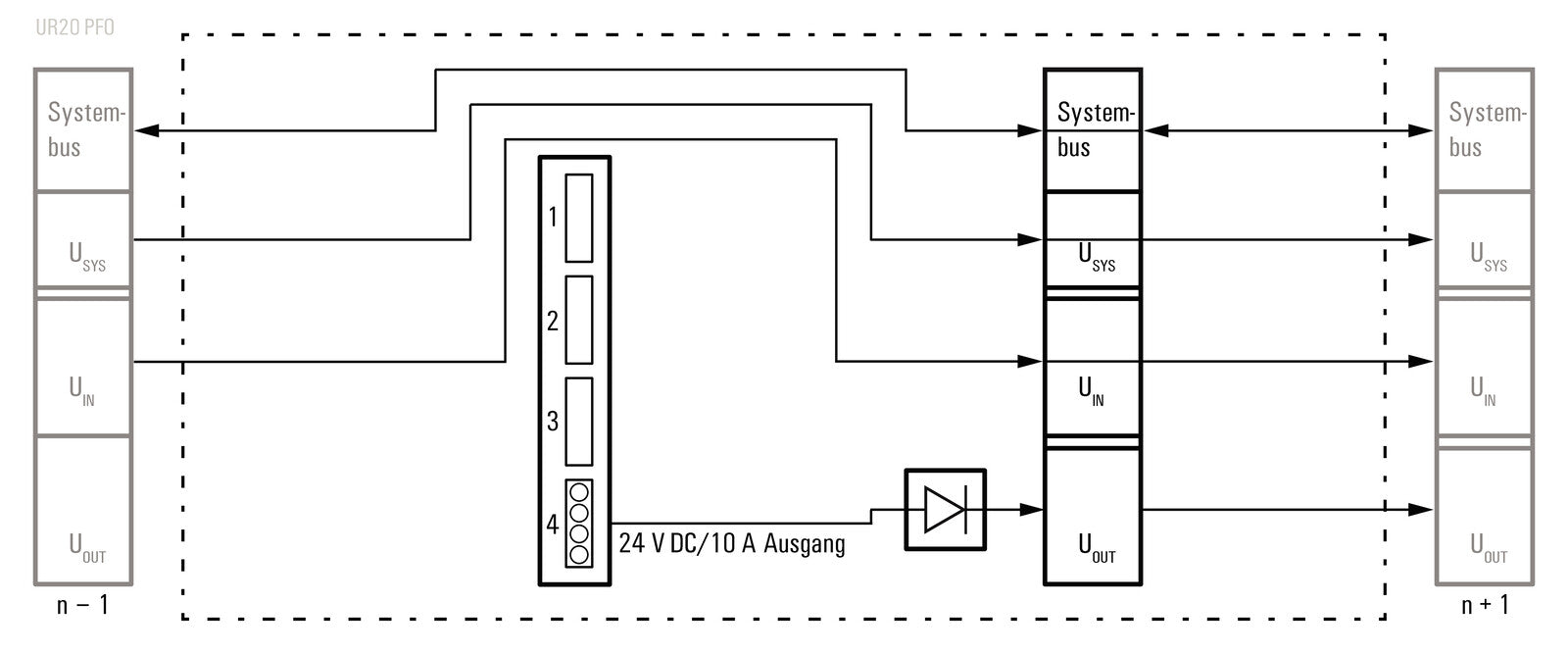

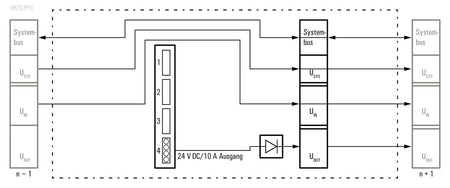

Weidmüller UR20-PF-O is the power feed module that starts a new output current path (IOUT) segment in a u-remote station, refreshing the 24 V DC supply to the actuator side with up to 10,000 mA of feed current. Fit it when the accumulated load of the digital and analogue output modules to its right would exceed the current available in the existing output segment, or when you want those outputs on a separately switched or separately fused supply. Note the pairing: UR20-PF-O feeds IOUT for output modules, while UR20-PF-I (order no. 1334710000) feeds IIN for input modules and sensor supply — the two are not interchangeable.
- Function: Power feed — refreshes and starts a new output current path (IOUT) segment
- Segment feed current: max. 10,000 mA for IOUT
- Supply voltage: 24 V DC +20 % / −15 %
- Current consumption: <10 mA from IOUT (the respective power segment)

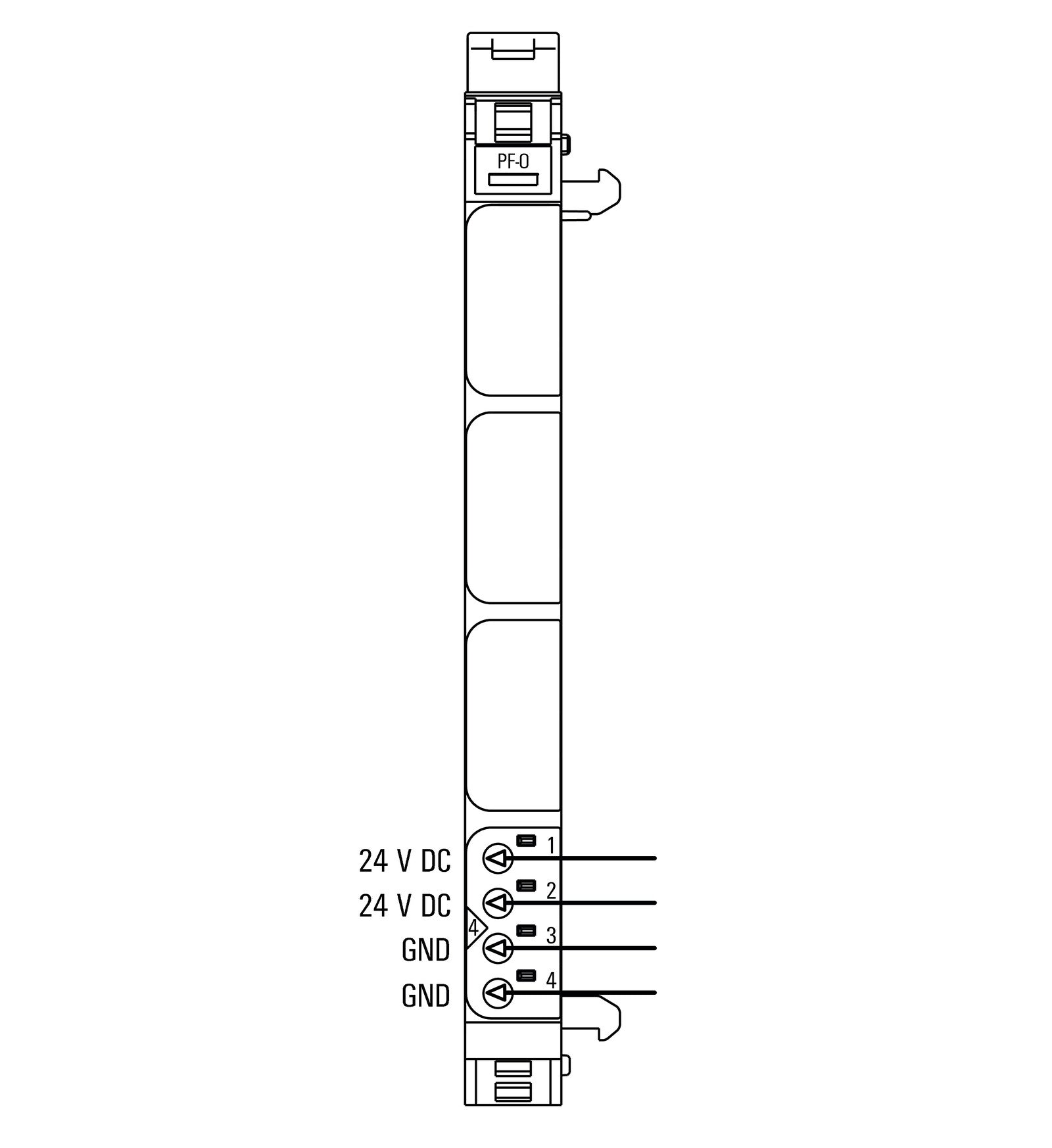

- Connection: PUSH IN, 0.14 mm² to 1.5 mm²; TS 35 mounting rail
- Operating temperature: −20 °C to +60 °C
- Dimensions (W x H x D): 11.5 x 120 x 76 mm
- Protection degree: IP20
- Approvals: RoHS, UL E141197 (cULus), E223527 (cULusEX)
