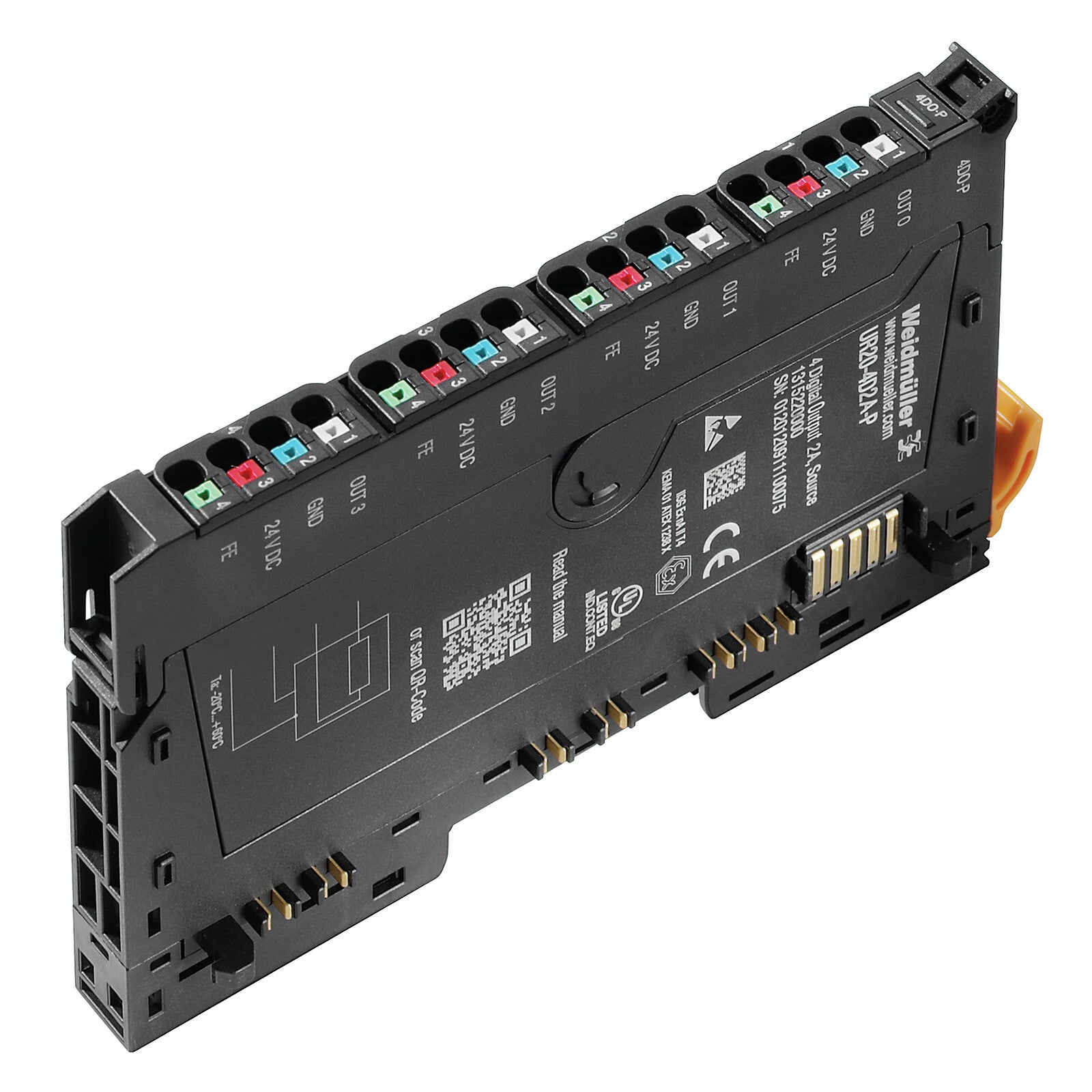

Remote I/O module, Digital signals, Output, 4-channel, 2 A per channel - UR20-4DO-P-2A

Weidmüller UR20-4DO-P-2A is a 4-channel digital output module for the u-remote I/O system with PNP (sourcing) solid-state outputs rated 2 A per channel — four times the 500 mA of a standard u-remote output module. Use it for valves, contactors or lamp loads that exceed a general-purpose channel, without stepping up to a relay module.

• Channels: 4 digital outputs, PNP (sourcing), solid state
• Output rating per channel: 2 A (2,000 mA) maximum
• Output current per module: 8 A (8,000 mA) maximum
• Supply voltage: 24 V DC +20 % / −15 % via the system bus
• Current consumption: 8 mA typical from the system supply, plus 10 mA from the load power segment
• Isolation: 500 V DC between the current paths

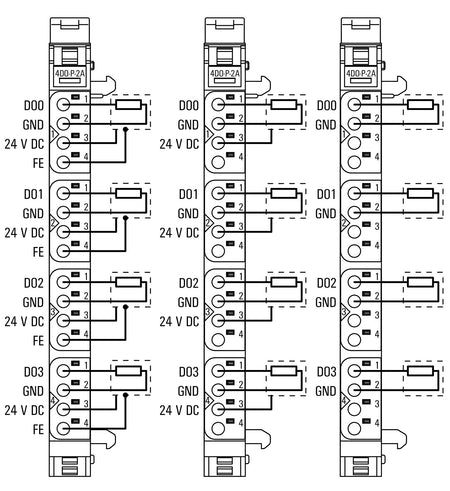

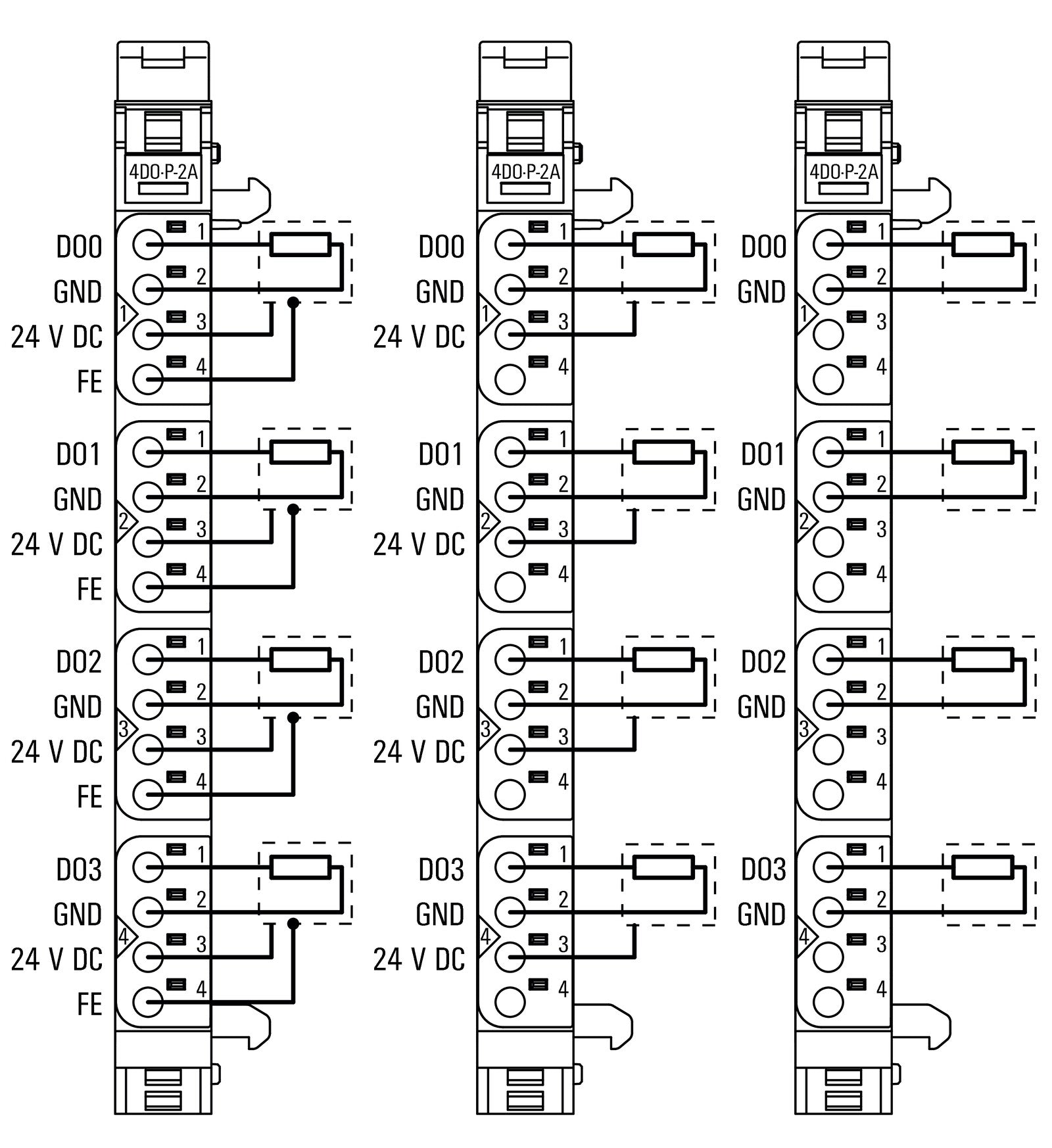

• Connection: PUSH IN, solid or stranded 0.14 mm² to 1.5 mm² (AWG 26–16)
• Response time: 100 µs maximum low to high, 250 µs maximum high to low
• Diagnostics: Module diagnosis, 1 bit diagnostic data; no individual channel diagnosis
• Operating temperature: −20 °C to +60 °C
• Dimensions (W x H x D): 11.5 x 120 x 76 mm
• Protection degree: IP20
• Approvals: cULus E141197, cULusEX E223527, RoHS compliant
