Remote I/O module, Digital signals, Input, PUSH IN connection, Counter, Single channel - UR20-1CNT-500

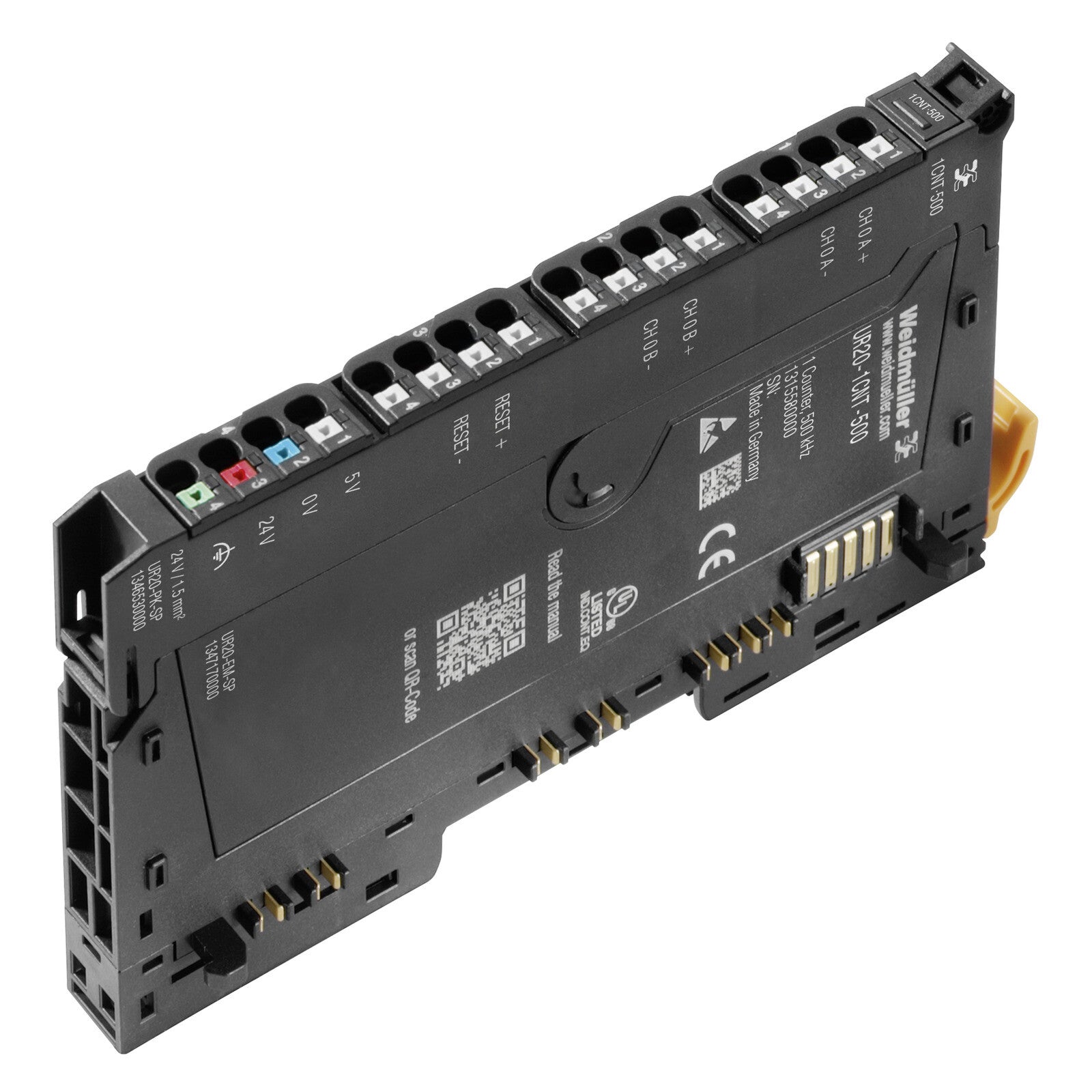

Weidmüller UR20-1CNT-500 is a single-channel high-speed counter module for the u-remote I/O system, accepting input frequencies up to 500 kHz with 32-bit counter resolution. It reads incremental and absolute encoders and is the fastest counter in the u-remote range — specify it where the 100 kHz UR20-2CNT-100 cannot keep up with the encoder pulse rate.

• Channels: 1 counter input
• Counter frequency: Up to 500 kHz
• Counter width: 32 bit

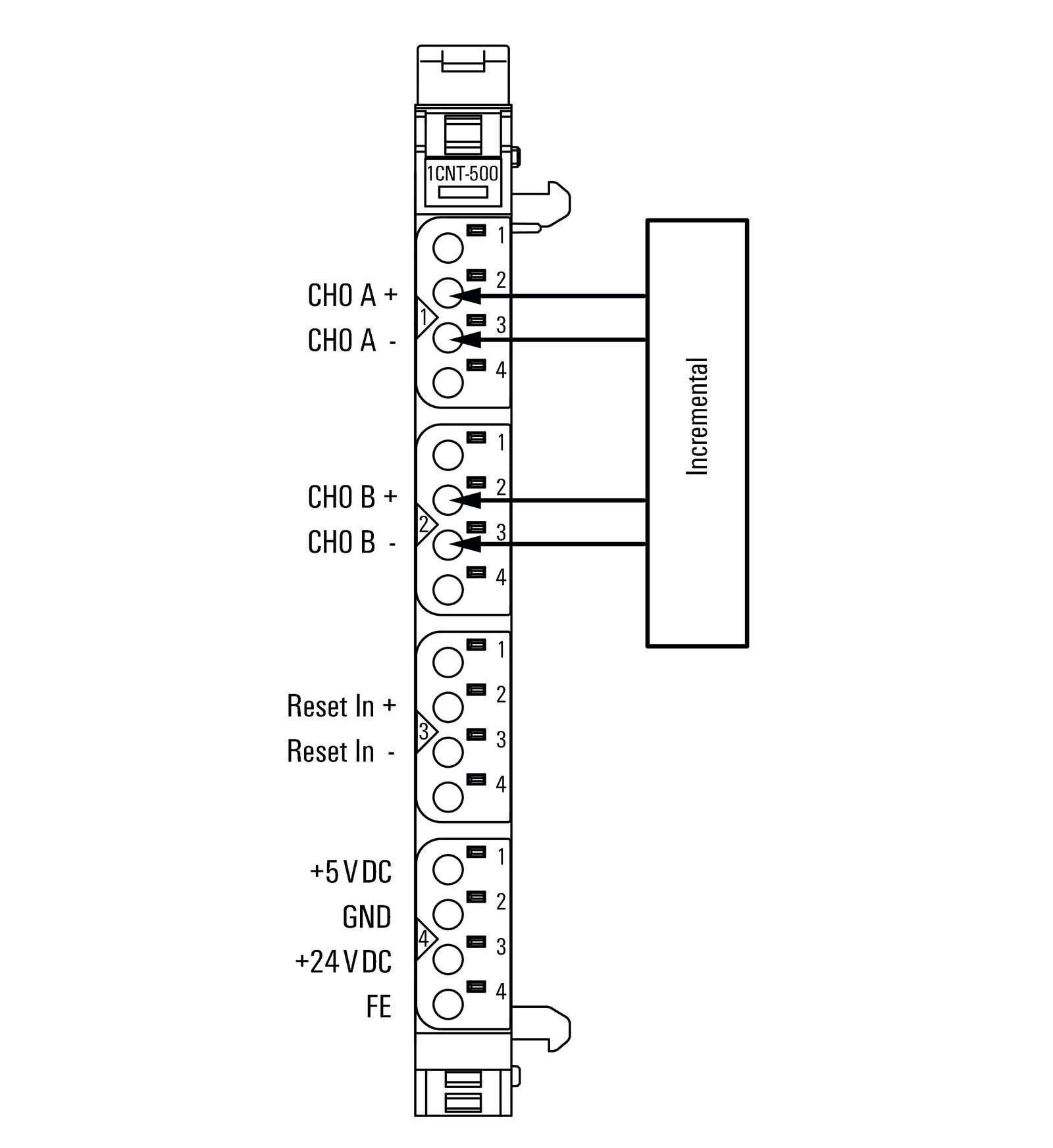

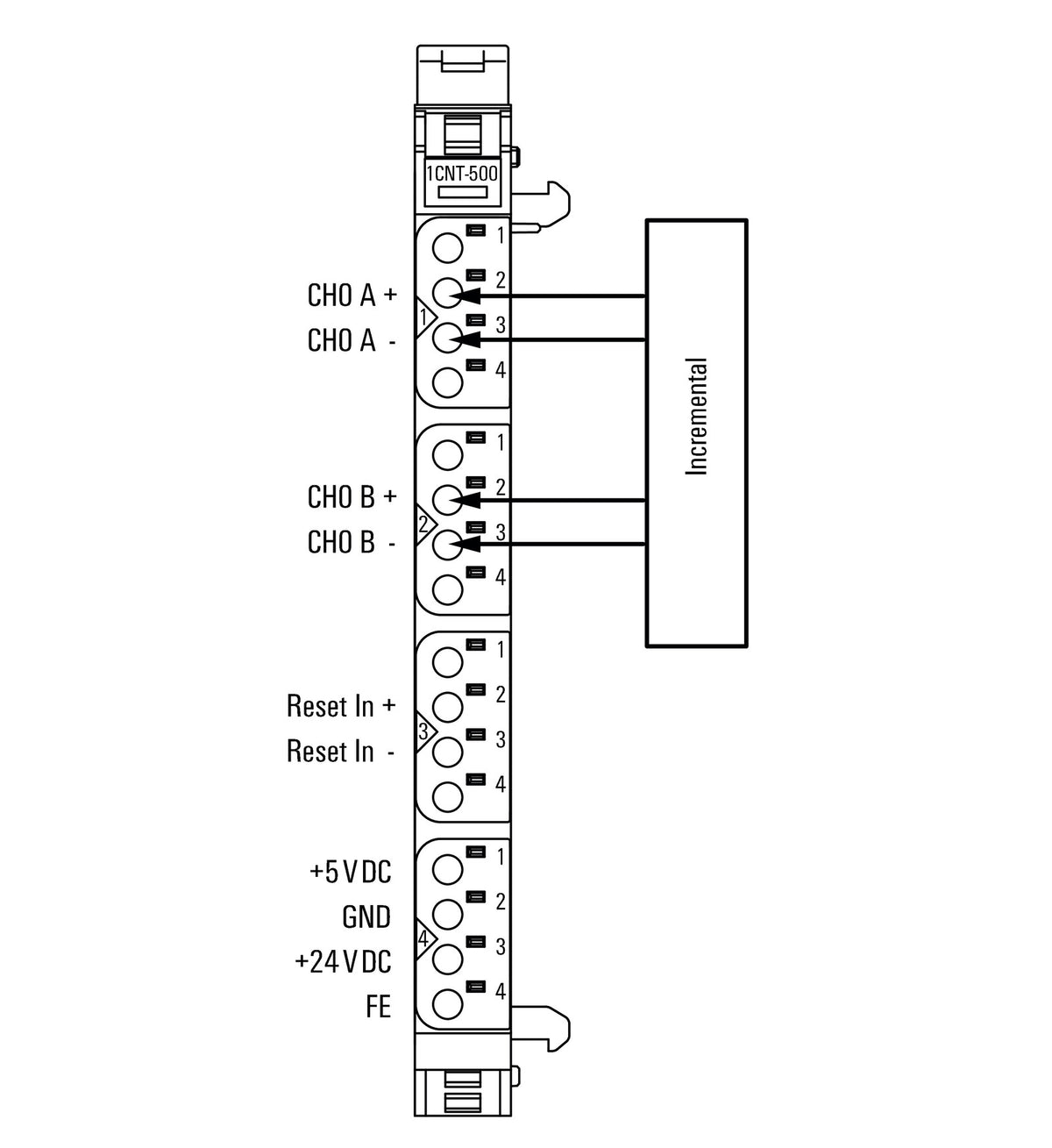

• Signal type: Digital input signals from incremental and absolute encoders
• Supply voltage: 24 V DC +20 % / −15 % via the system bus
• Current consumption: 8 mA typical from the system supply; input current < 20 mA
• Isolation: 500 V DC between the current paths
• Connection: PUSH IN, 0.14 mm² to 1.5 mm² (AWG 26–16); TS 35 rail
• System bus: u-remote backplane, 48 Mbit/s maximum; PROFINET IRT, EtherCAT and Modbus/TCP couplers supported
• Operating temperature: −20 °C to +60 °C (storage −40 °C to +85 °C)
• Humidity: 10 % to 95 %, non-condensing
• Dimensions (W x H x D): 11.5 x 120 x 76 mm, 87.6 g
• Protection degree: IP20
• Approvals: cULus E141197, cULusEX E223527, RoHS compliant
