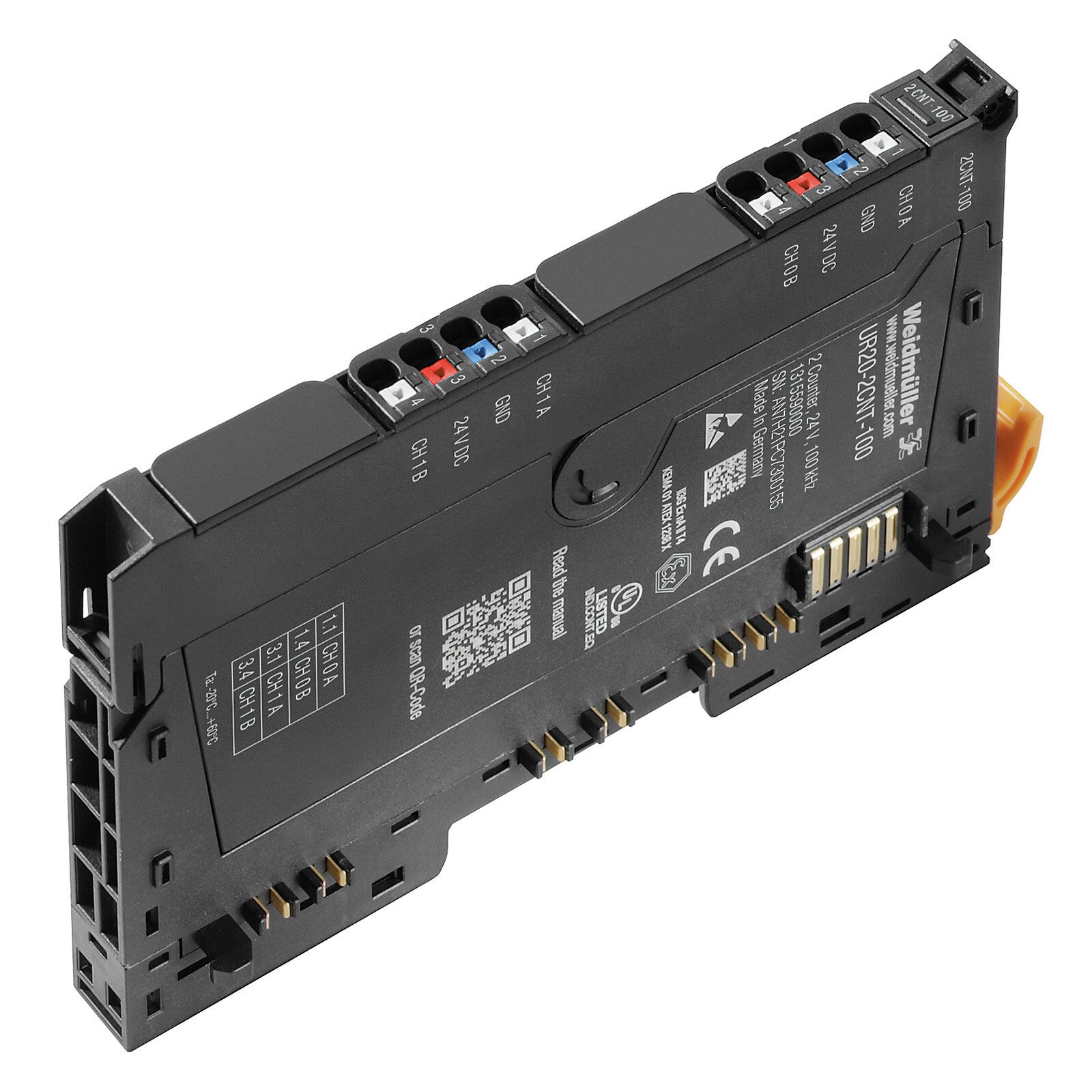

Remote I/O module, Digital signals, Input, PUSH IN connection, Counter, dual channel - UR20-2CNT-100

Weidmüller UR20-2CNT-100 is a dual-channel counter module for the u-remote I/O system with two independent counter inputs, each accepting frequencies up to 100 kHz. It reads incremental and absolute encoders and gives two counters in one 11.5 mm slice — step up to the single-channel UR20-1CNT-500 if you need 500 kHz.

• Channels: 2 independent counter inputs
• Counter frequency: Up to 100 kHz per channel

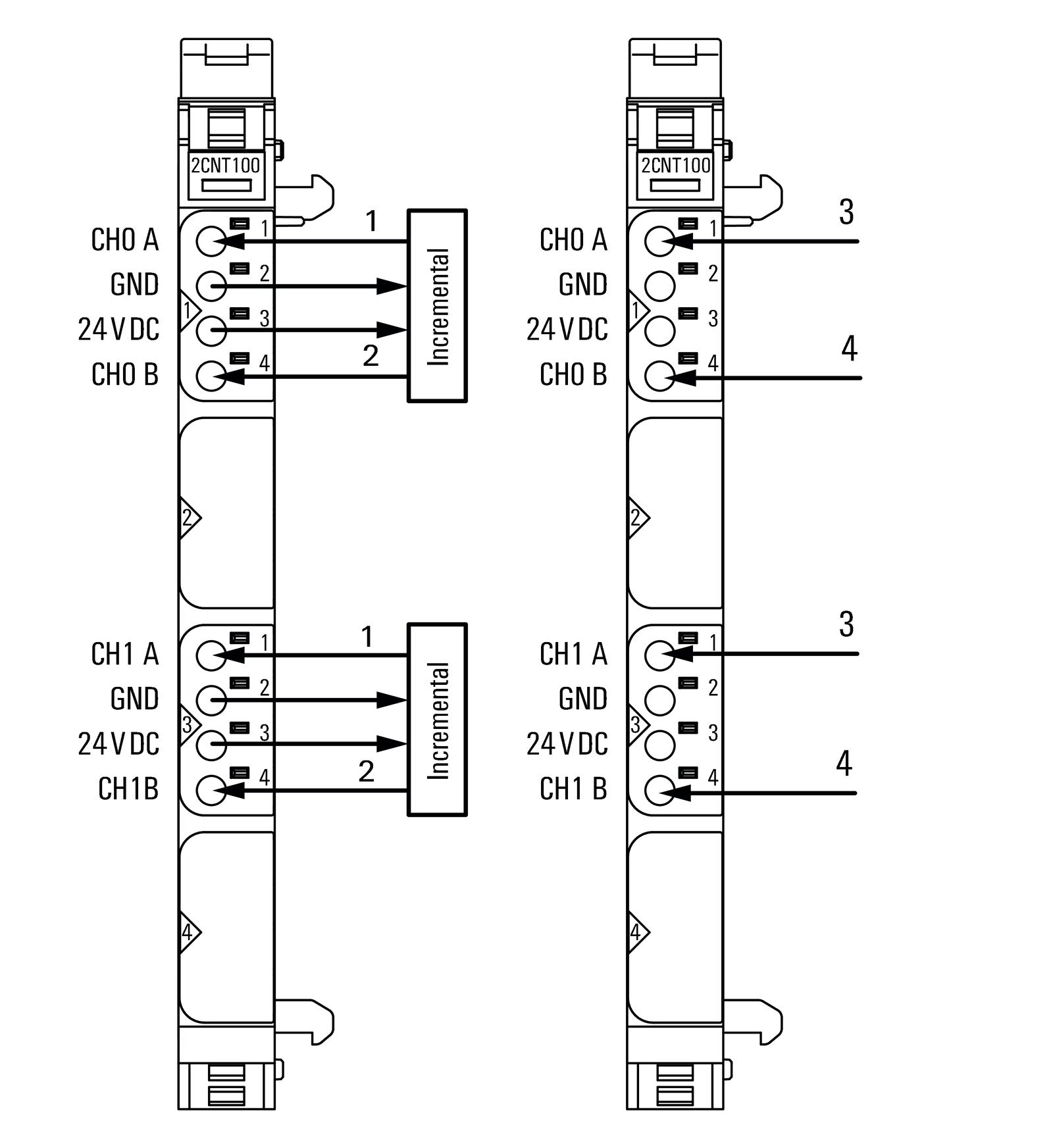

• Signal type: Digital input signals from incremental and absolute encoders
• Supply voltage: 24 V DC +20 % / −15 % via the system bus
• Current consumption: 8 mA typical from the system supply; 35 mA plus output current from the power segment
• Isolation: 500 V DC between the current paths; 500 V test voltage
• Protection: Reverse polarity protection
• Connection: PUSH IN, solid or finely stranded 0.14 mm² to 1.5 mm² (AWG 26–16); TS 35 rail
• System bus: u-remote backplane, 48 Mbit/s maximum; PROFINET IRT/RT, EtherCAT, PROFIBUS, Modbus/TCP, EtherNet/IP and CANopen couplers supported
• Operating temperature: −20 °C to +60 °C (storage −40 °C to +85 °C)
• Dimensions (W x H x D): 11.5 x 120 x 76 mm, 85 g
• Protection degree: IP20
• Approvals: cULus E141197, cULusEX E223527, RoHS compliant
