Remote I/O module, Digital signals, Input, PLC - UR20-16DI-P-PLC-INT

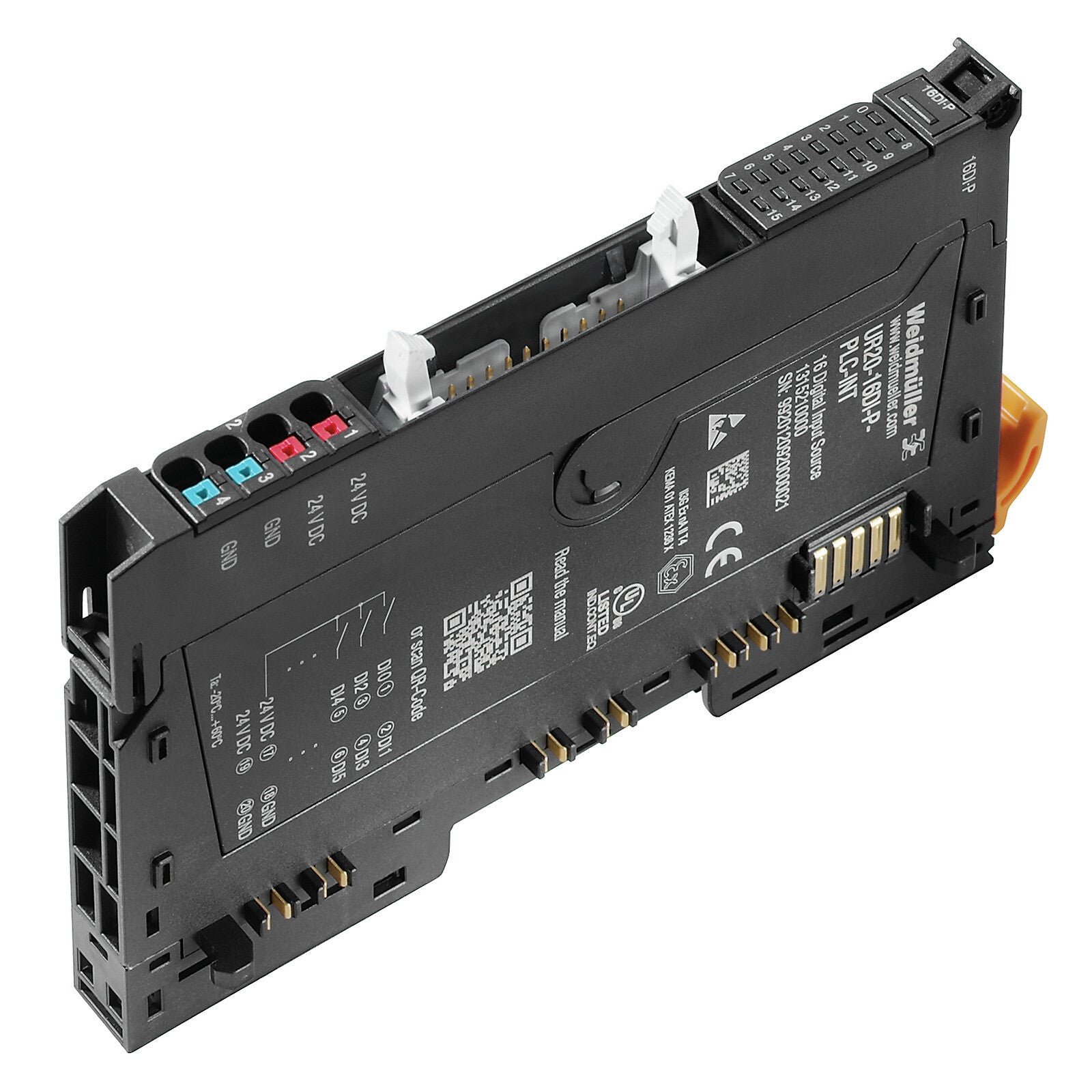

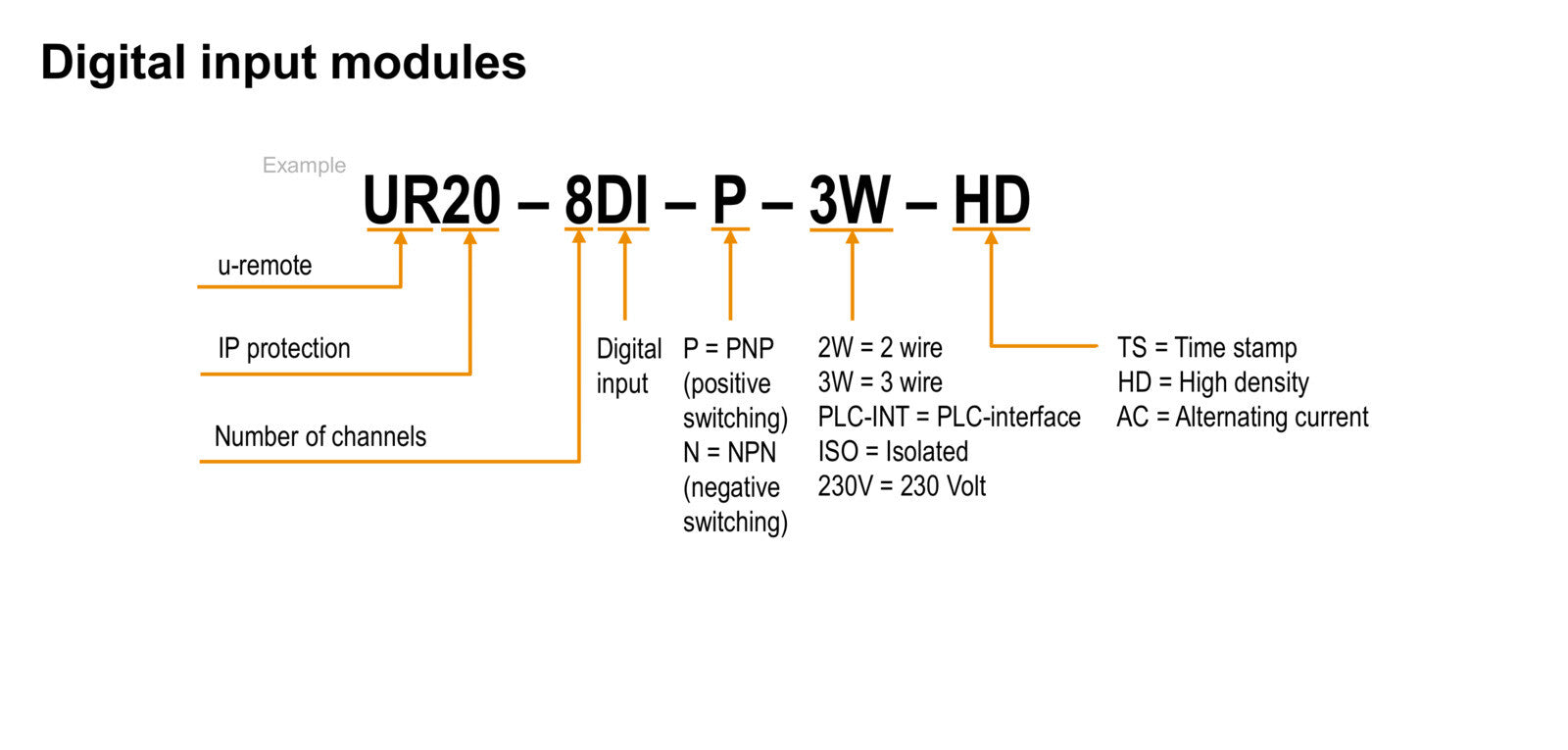

Weidmüller UR20-16DI-P-PLC-INT is a 16-channel digital input module for the u-remote I/O system with PNP (sourcing) inputs to EN 61131-2 types 1 and 3. The PLC-INT variant replaces individual field terminals with a 20-pin ribbon-cable front connector for pre-assembled system cabling, so it suits panel builds where field wiring is already terminated on a Weidmüller interface module.

• Channels: 16 digital inputs, PNP (sourcing)
• Signal type: EN 61131-2 types 1 and 3; input high > 11 V, input low < 5 V
• Input current: < 15 mA from the input power segment
• Supply voltage: 24 V DC +20 % / −15 % via the system bus
• Current consumption: 8 mA typical from the system supply (Isys)
• Isolation: 500 V DC between the current paths

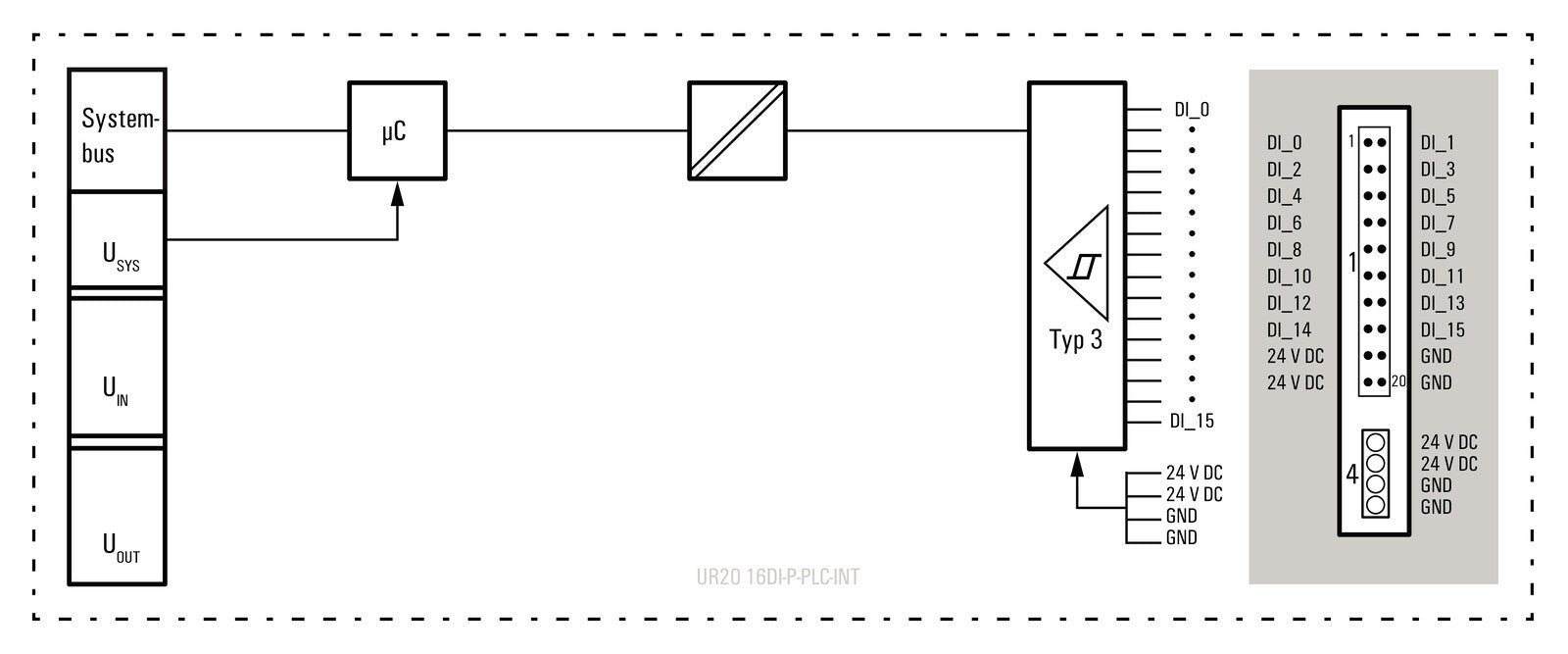

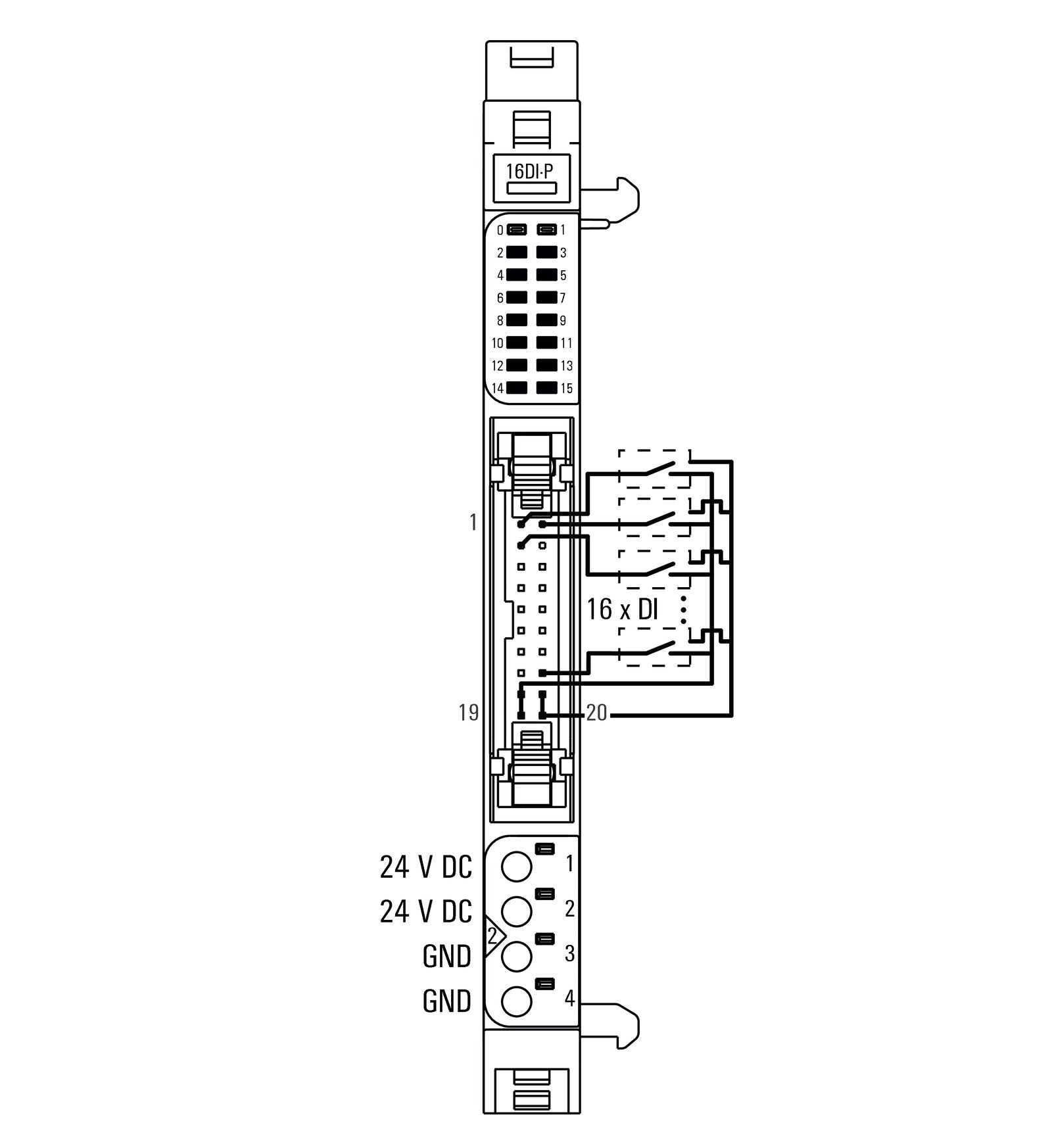

• Connection: 20-pin ribbon-cable connector for PLC system cabling; PUSH IN, 0.14 mm² to 1.5 mm² (AWG 26–16)
• Input filter: 3 ms
• Diagnostics: Module diagnosis; no individual channel diagnosis
• Operating temperature: −20 °C to +60 °C
• Dimensions (W x H x D): 11.5 x 120 x 76 mm
• Protection degree: IP20
• Approvals: cULus E141197, cULusEX E223527, RoHS compliant
