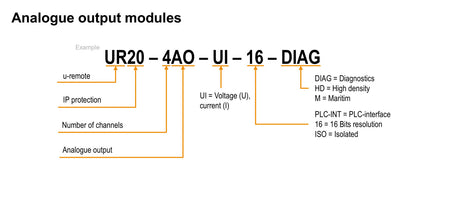

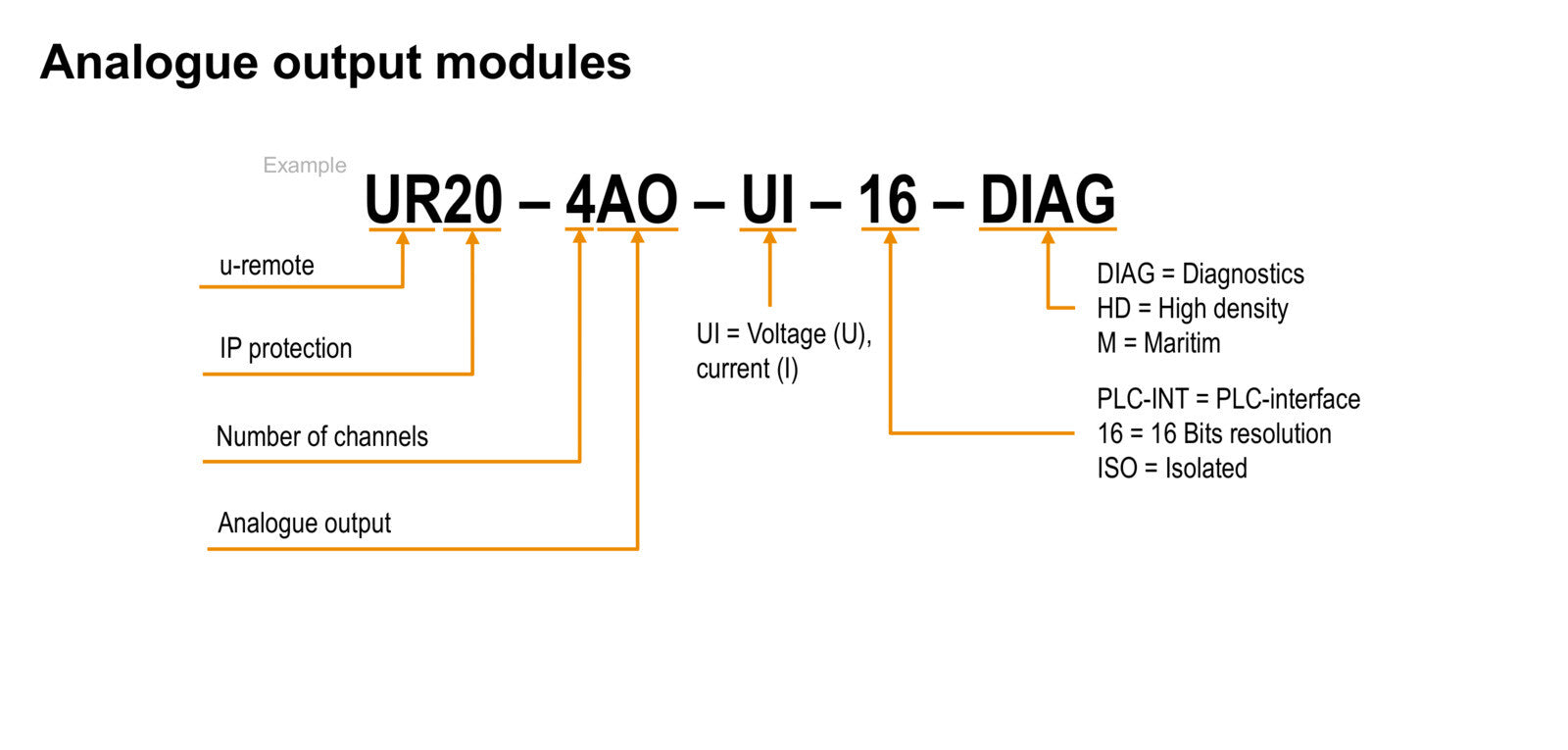

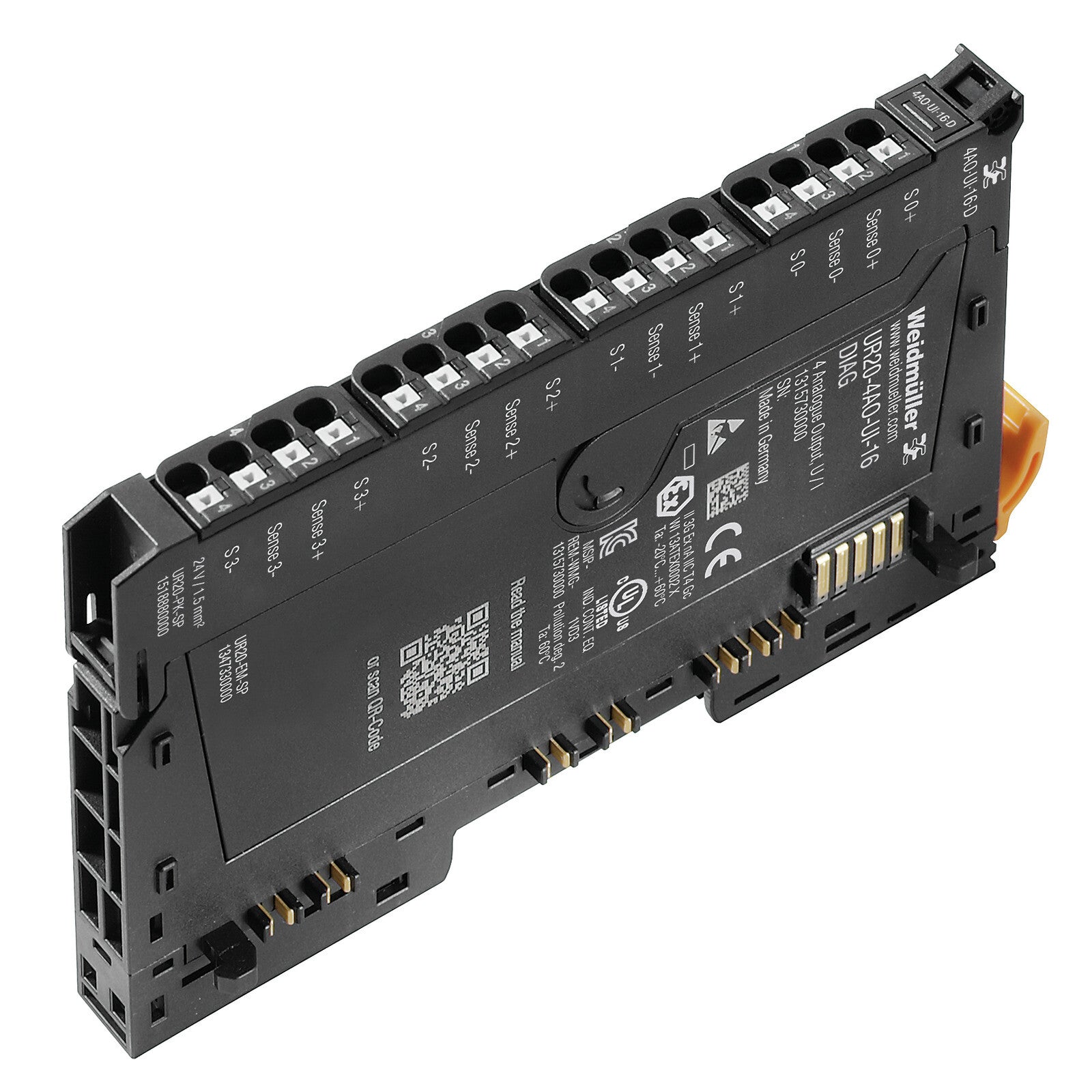

Remote I/O module, Analog signals, Output, 4-channel, Current/Voltage - UR20-4AO-UI-16-DIAG

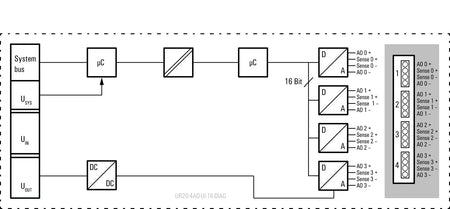

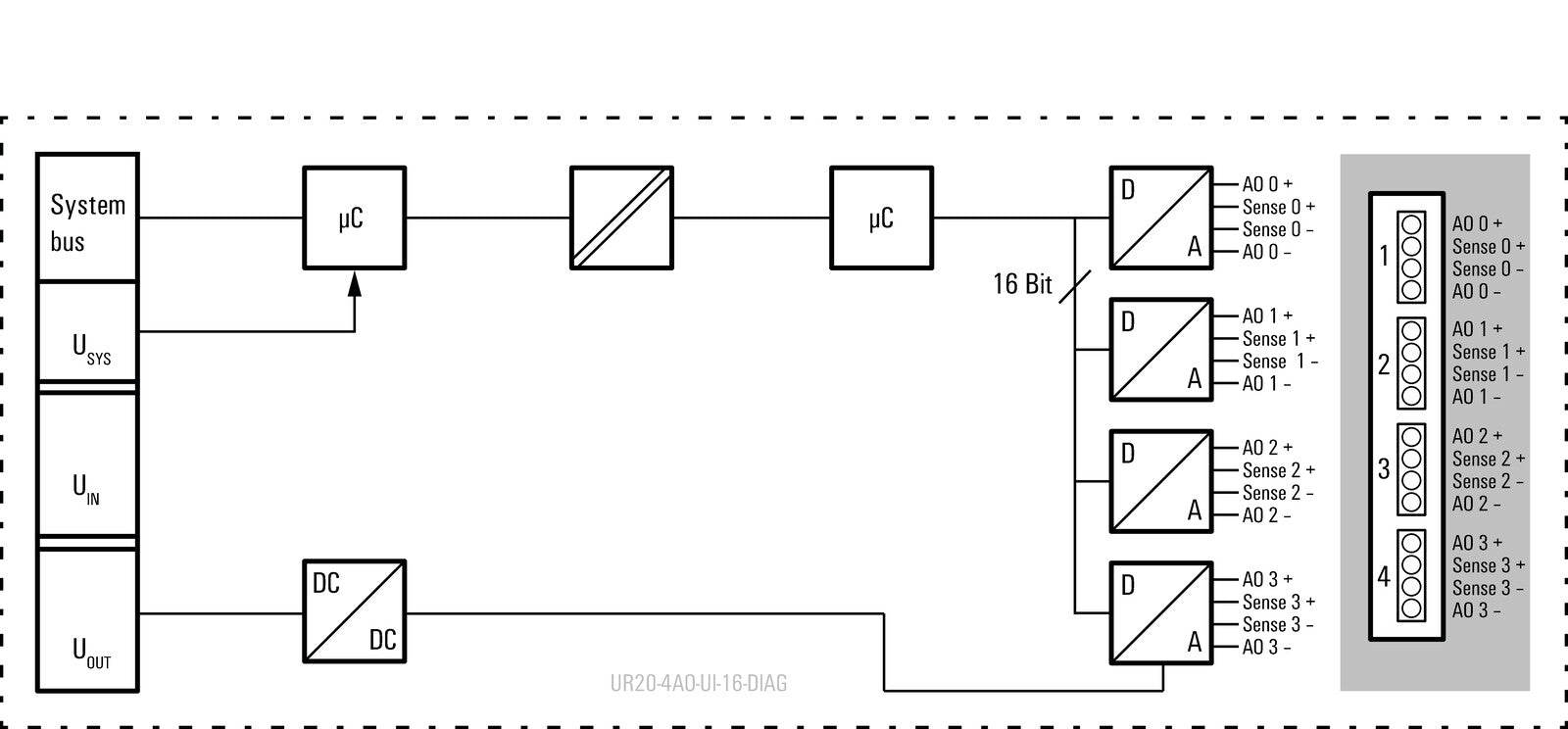

Weidmüller UR20-4AO-UI-16-DIAG four-channel analog output module for the u-remote system, with per-channel diagnostics — the DIAG variant reports faults on each channel individually rather than as a single module alarm, which is what you want when a loop has to be diagnosed without a trip to the field station.

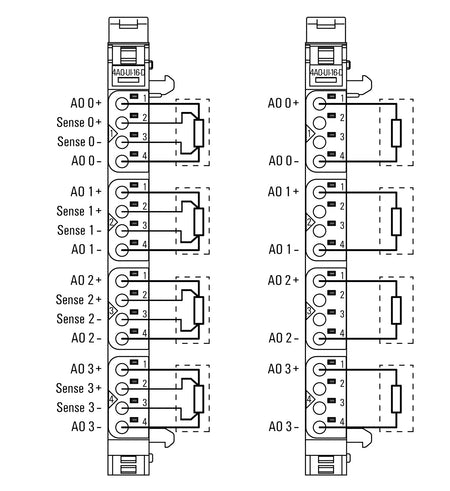

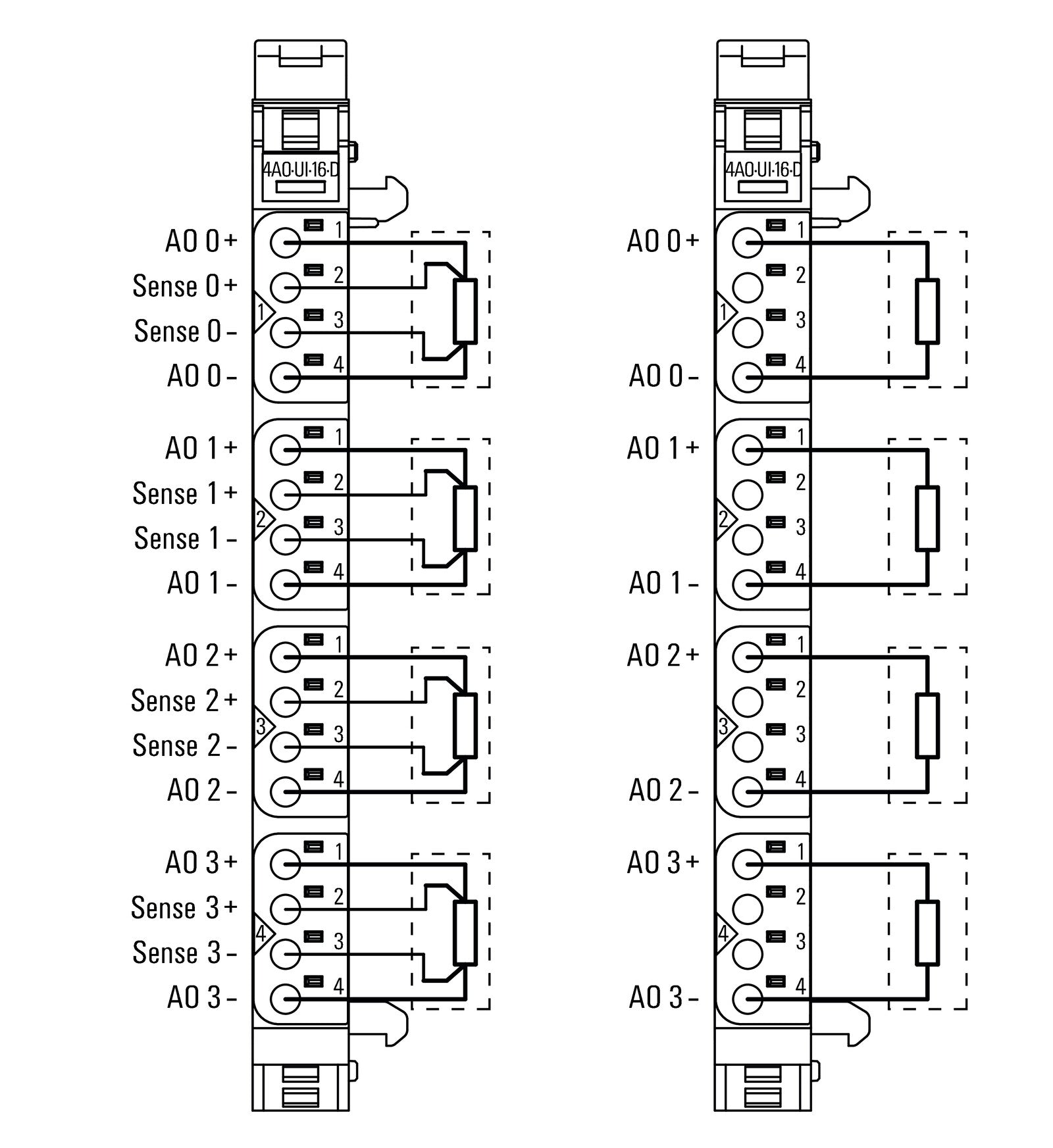

• Channels: 4 analog outputs
• Signal range: voltage 0–5 V, 0–10 V, 1–5 V, 2–10 V, ±5 V, ±10 V; current 0–20 mA or 4–20 mA
• Resolution: 16 bit
• Response time: 1 ms for 4 channels
• Supply voltage: 24 V DC (+20 % / −15 %) via the system bus
• Current consumption: 85 mA output power segment, 8 mA typical system
• Isolation: 500 V DC between the current paths
• Connection: PUSH IN, 0.14–1.5 mm² (AWG 26–16)
• Operating temperature: −20 °C to +60 °C
• Dimensions (W x H x D): 11.5 x 120 x 76 mm
• Protection degree: IP20
• Approvals: UL E141197, RoHS
