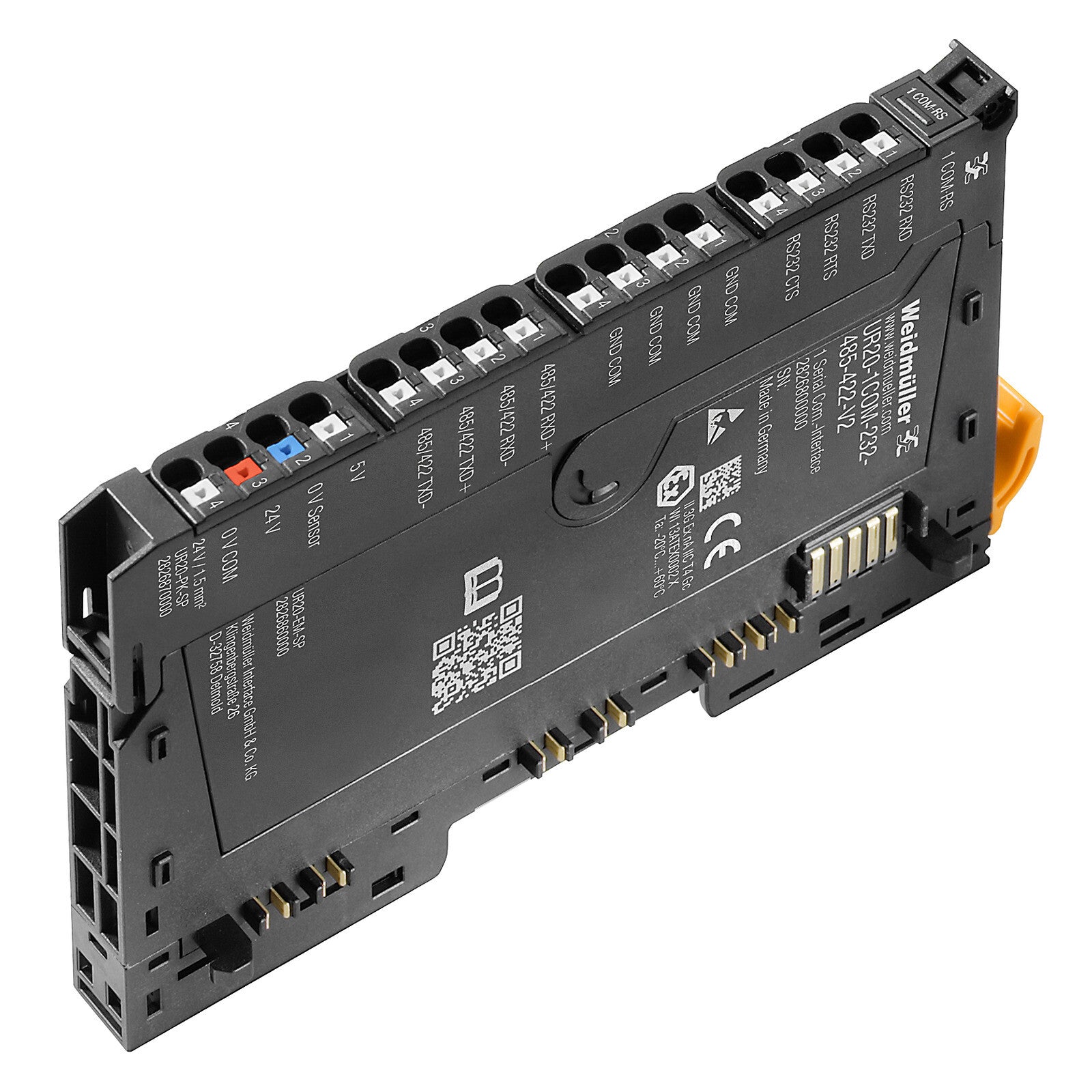

REMOTE I/O MODULE 1-CHANNEL, RS232/RS485/RS422 COMMUNICATION PUSH IN CONNECTION | UR20-1COM-232-485-422-V2

Weidmüller UR20-1COM-232-485-422-V2 is the V2 generation single-channel serial communication module for the u-remote IP20 remote I/O system, providing one interface switchable between RS232, RS485 and RS422. It lets serial devices such as barcode scanners, weighing terminals and drives be read through the u-remote station on any supported coupler, including PROFINET IRT/RT, EtherCAT, PROFIBUS DP-V1, Modbus TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK and CC-Link.

• Function: serial communication module, V2 generation
• Channels: 1 serial interface

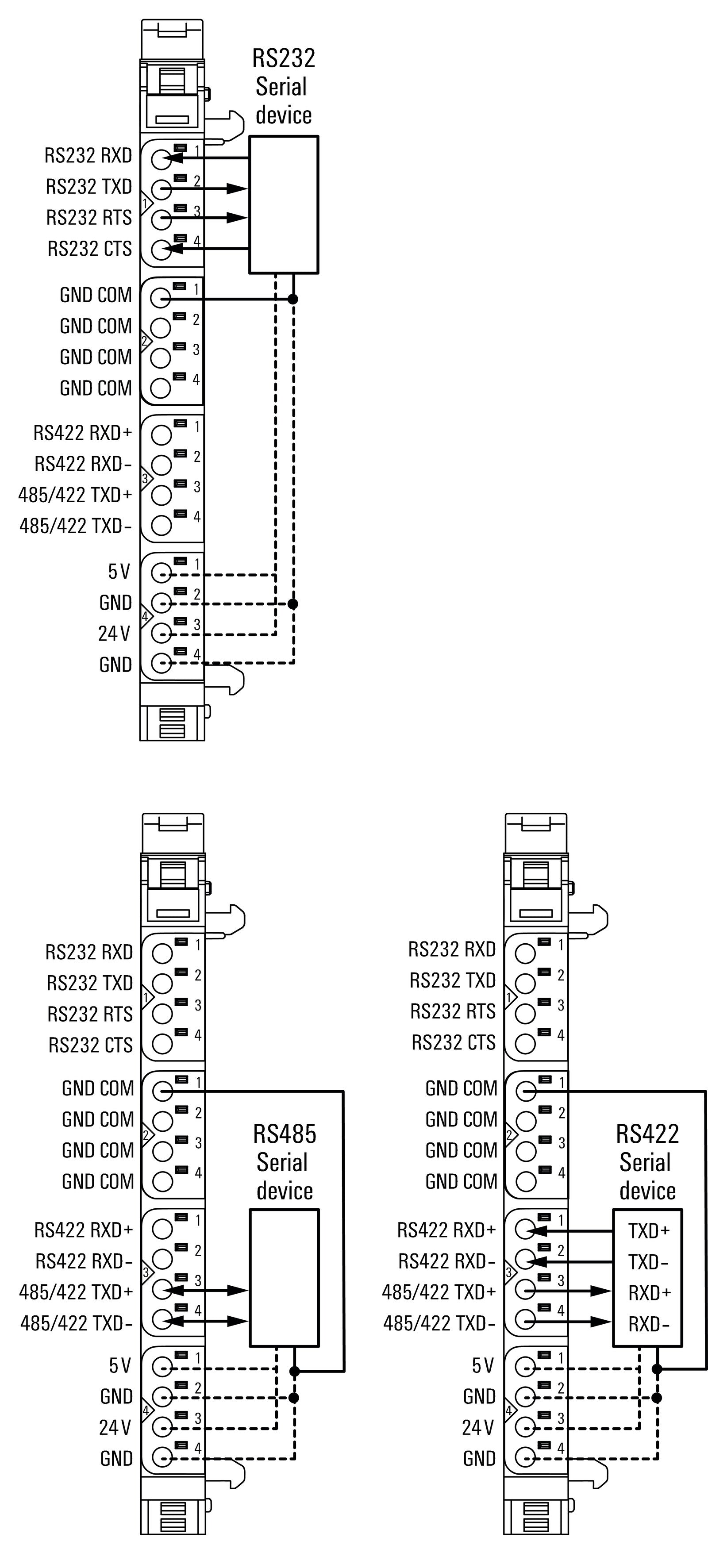

• Interface standards: RS232, RS485, RS422
• Supported coupler protocols: PROFINET IRT/RT, CC-Link IE TSN, IEC 61162-450, PROFIBUS DP-V1, EtherCAT, Modbus TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link
• System bus: up to 48 Mbit/s
• Supply voltage: 24 V DC +20 % / −15 % via the system bus
• Current consumption: 8 mA typical from the system supply; 16 mA plus load from the power segment
• Connection system: PUSH IN, 0.14 to 1.5 mm²
• Diagnostics: module diagnosis
• Operating temperature: −20 °C to +60 °C
• Dimensions (W x H x D): 11.5 x 120 x 76 mm
• Protection degree: IP20
• Approvals: UL (E141197), RoHS compliant
• Order number: 2826800000
