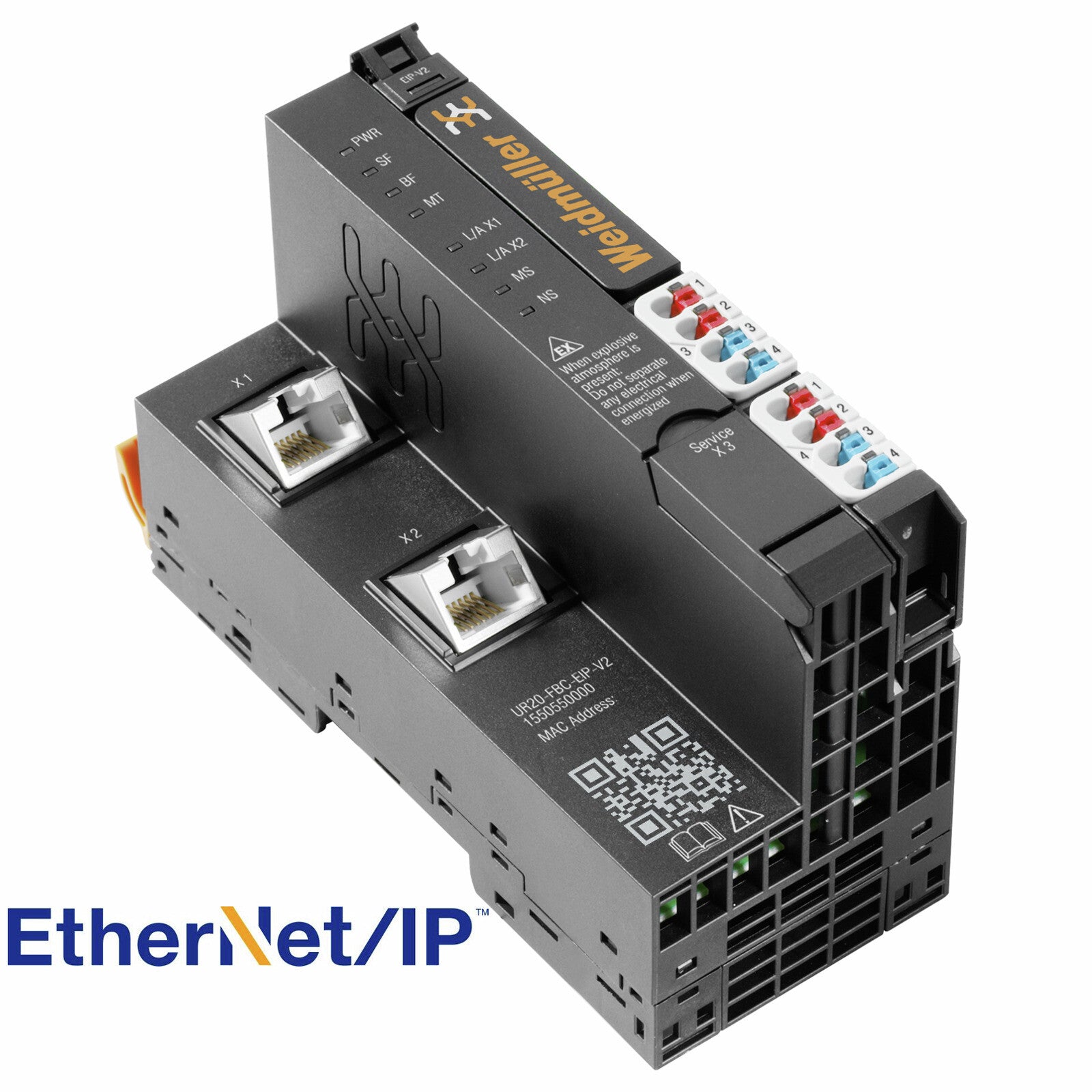

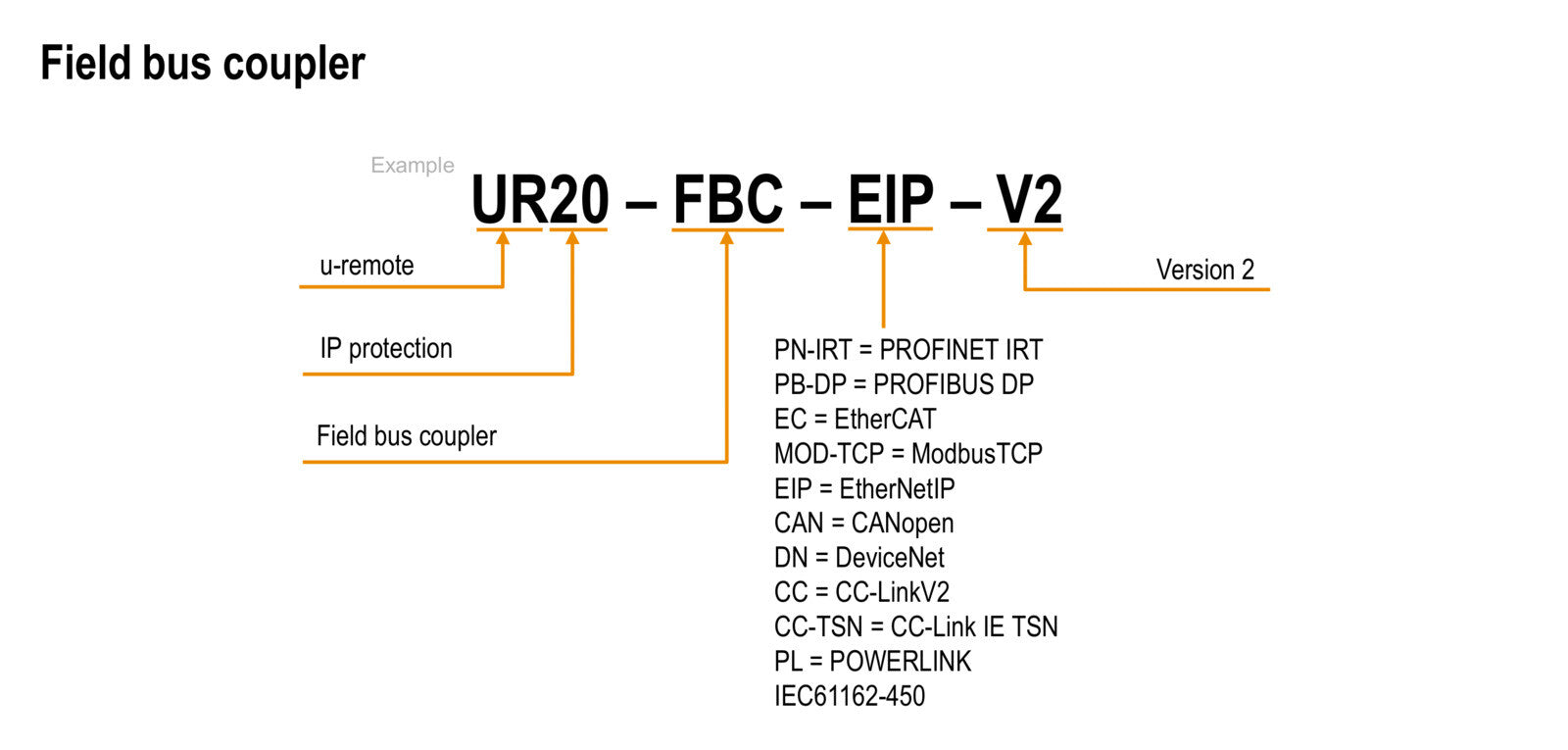

REMOTE I/O FIELDBUS COUPLER, IP20 - UR20-FBC-EIP-V2

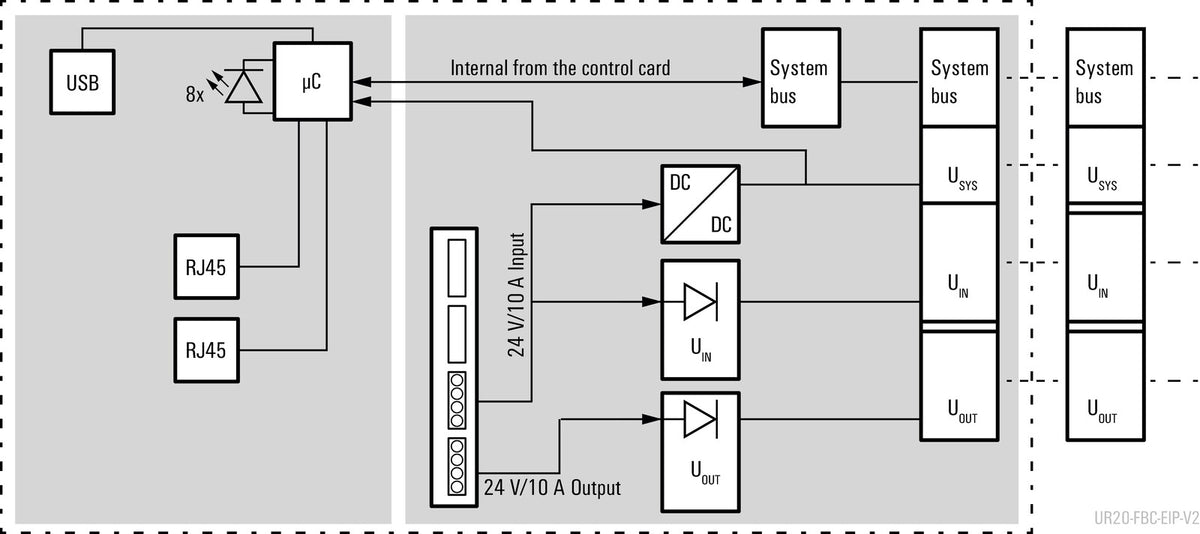

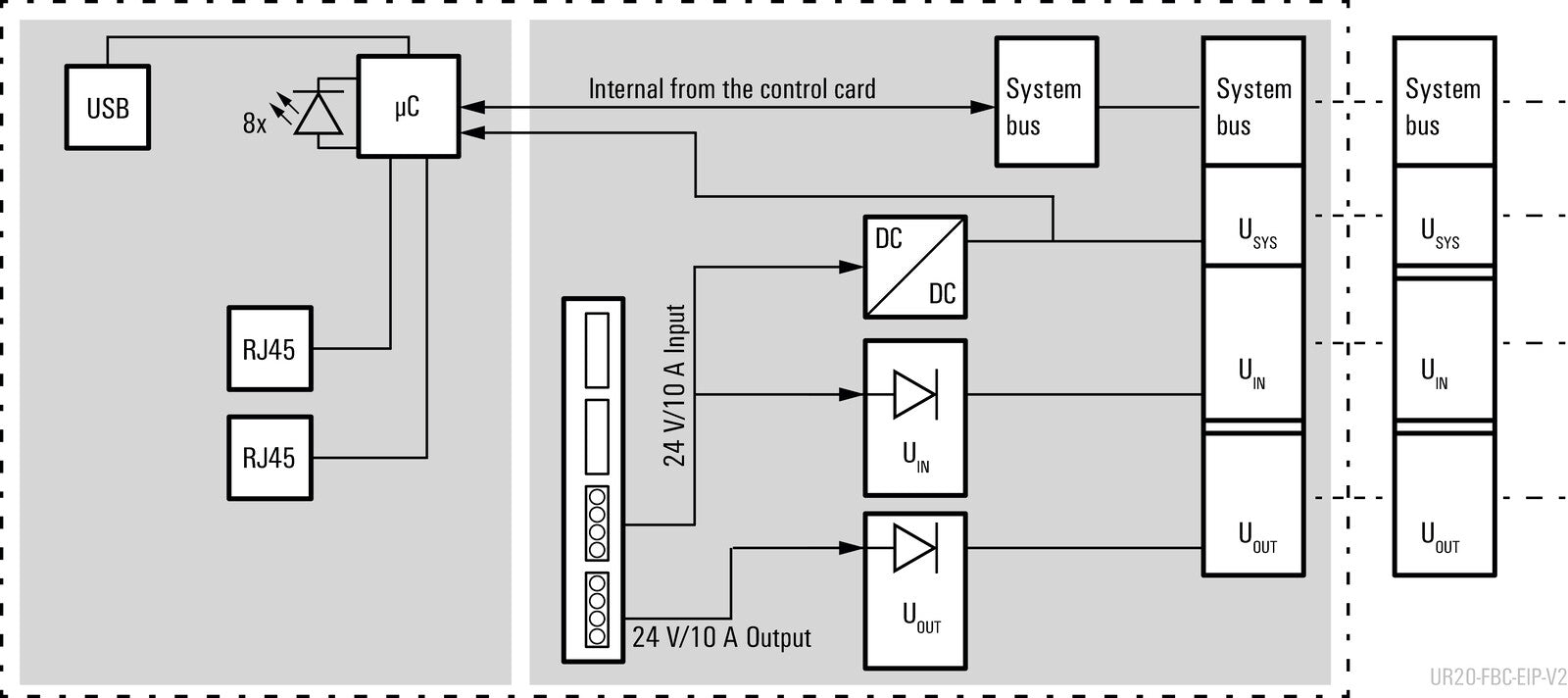

Weidmüller UR20-FBC-EIP-V2 is the V2 generation EtherNet/IP fieldbus coupler for the u-remote IP20 remote I/O system, with two RJ45 ports for 100 Mbit/s line or star topology. It supports up to 64 modules and 988 byte of process data per station, plus 3,008 byte of diagnostic data for channel-level fault reporting back to the PLC.

• Fieldbus: EtherNet/IP, 100 Mbit/s

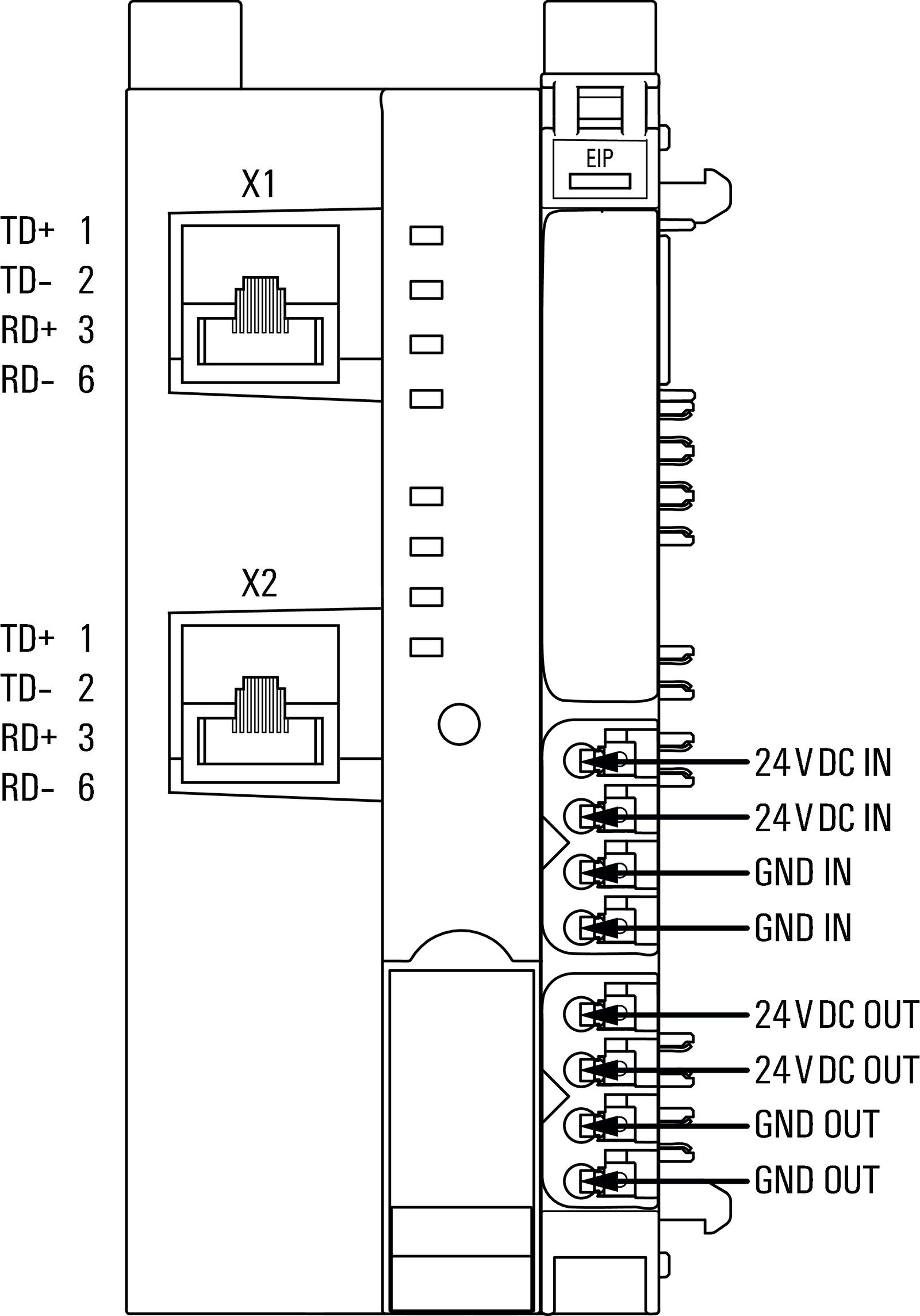

• Ports: 2 x RJ45
• Max. modules per station: 64
• Process data per station: 988 byte
• Diagnostic data: 3,008 byte
• Service interface: Micro USB 2.0
• Supply voltage: 24 V DC +20 % / −15 %
• Current consumption: 100 mA typical from the system supply
• System supply available to modules: 4 A max.
• Current carrying capacity, output path: 10 A max.
• Connection system: PUSH IN, 0.14 to 1.5 mm²
• Operating temperature: −20 °C to +60 °C
• Dimensions (W x H x D): 52 x 120 x 76 mm
• Protection degree: IP20
• Approvals: UL (E141197), RoHS compliant
• Order number: 1550550000
