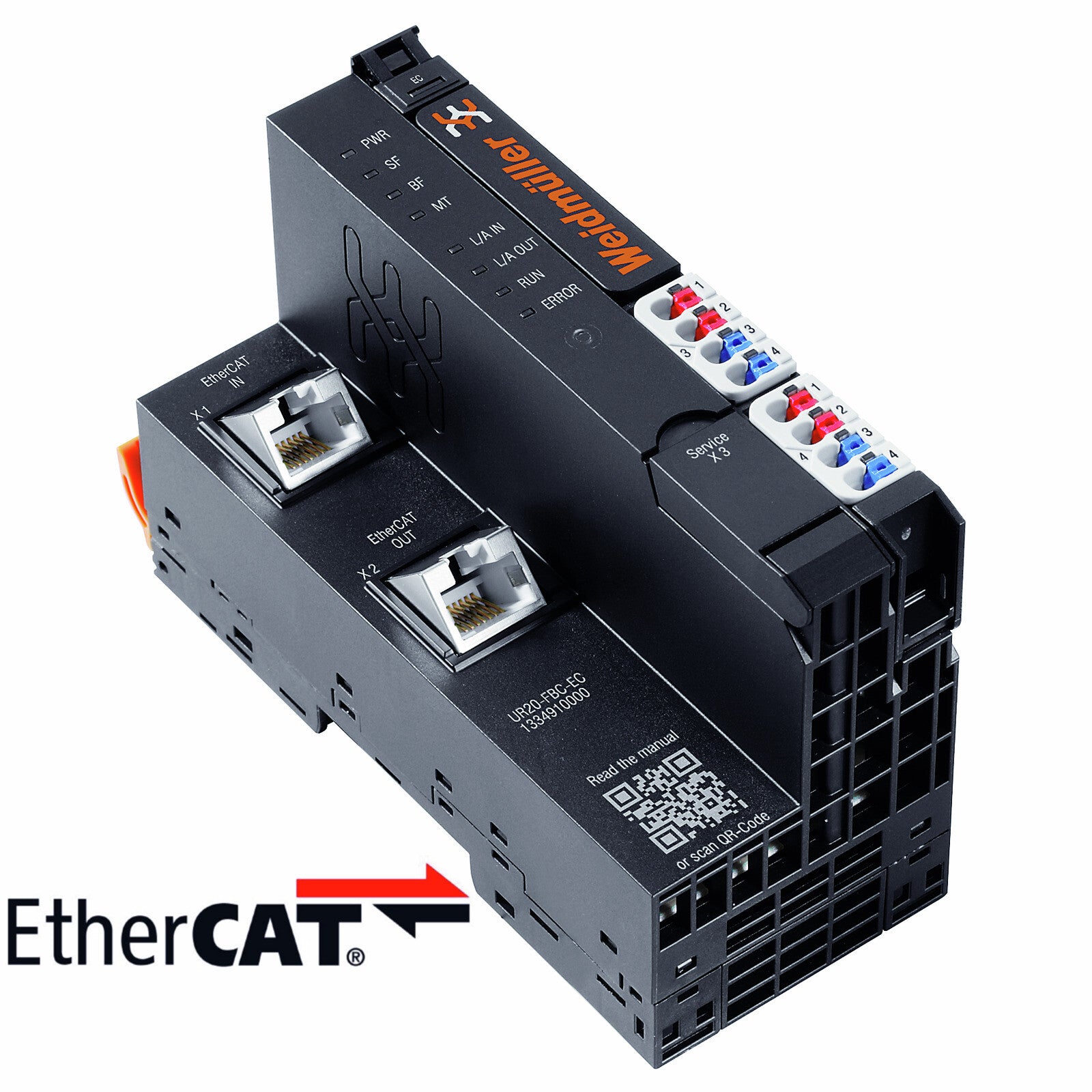

Remote I/O fieldbus coupler, Ethernet, EtherCAT - UR20-FBC-EC

Weidmüller UR20-FBC-EC is the EtherCAT fieldbus coupler for the u-remote IP20 remote I/O system, with two RJ45 ports and an integrated 2-port switch for daisy-chained line topology at 100 Mbit/s. It carries up to 64 modules and 1,024 byte of process data per station, with 3,200 byte of diagnostic data, making it suited to larger stations where per-channel diagnostics matter.

• Fieldbus: EtherCAT, 100 Mbit/s

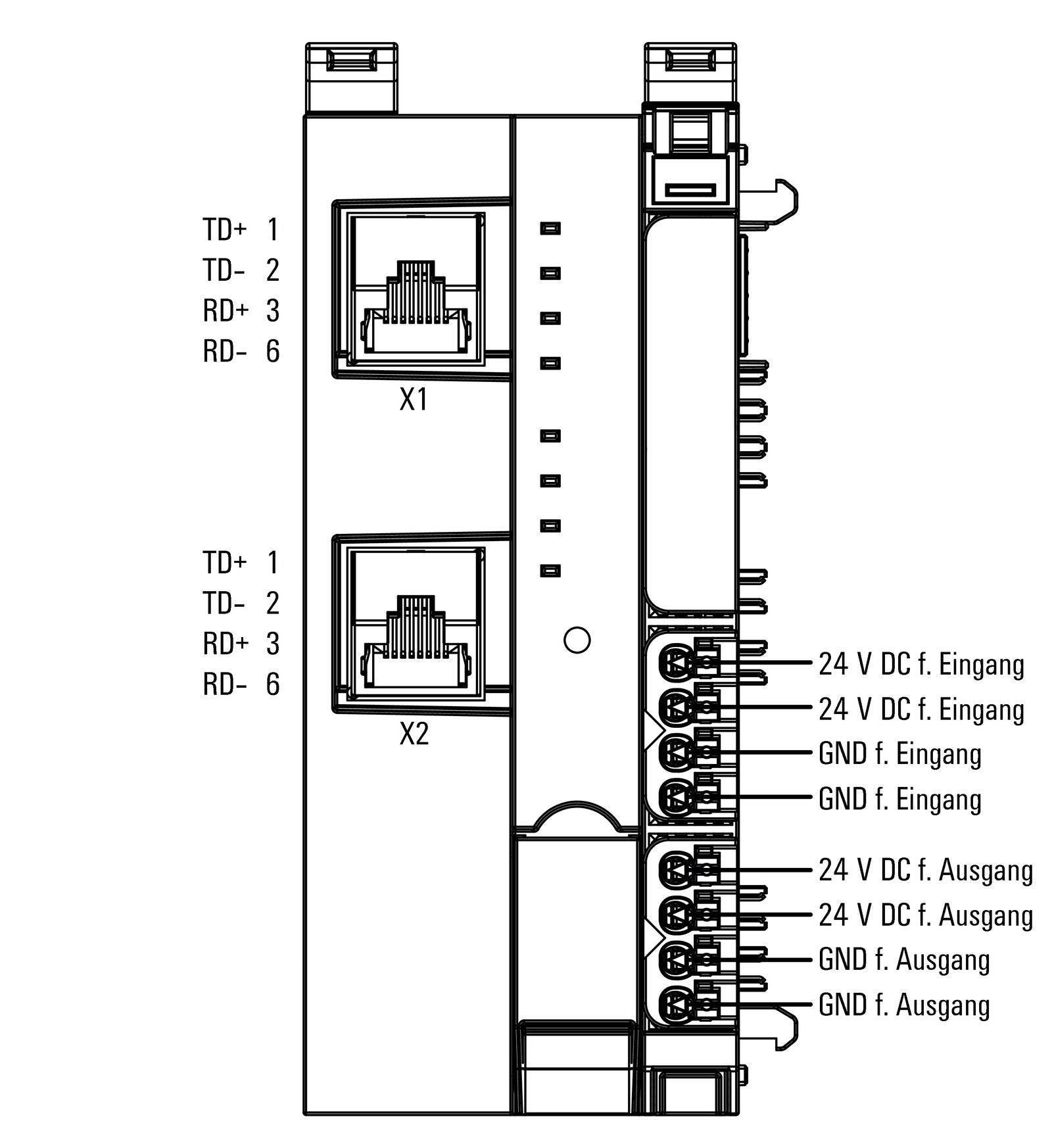

• Ports: 2 x RJ45 with integrated 2-port switch
• Max. modules per station: 64
• Process data per station: 1,024 byte
• Diagnostic data: 3,200 byte
• Service interface: Micro USB 2.0
• Supply voltage: 24 V DC +20 % / −15 %
• Current consumption: 130 mA
• System supply available to modules: 4 A max.
• Current carrying capacity, input and output path: 10 A max. each
• Connection system: PUSH IN, 0.14 to 1.5 mm²
• Operating temperature: −20 °C to +60 °C
• Dimensions (W x H x D): 52 x 120 x 76 mm
• Protection degree: IP20
• Approvals: UL (E141197), cULusEX (E223527), RoHS compliant
• Order number: 1334910000
