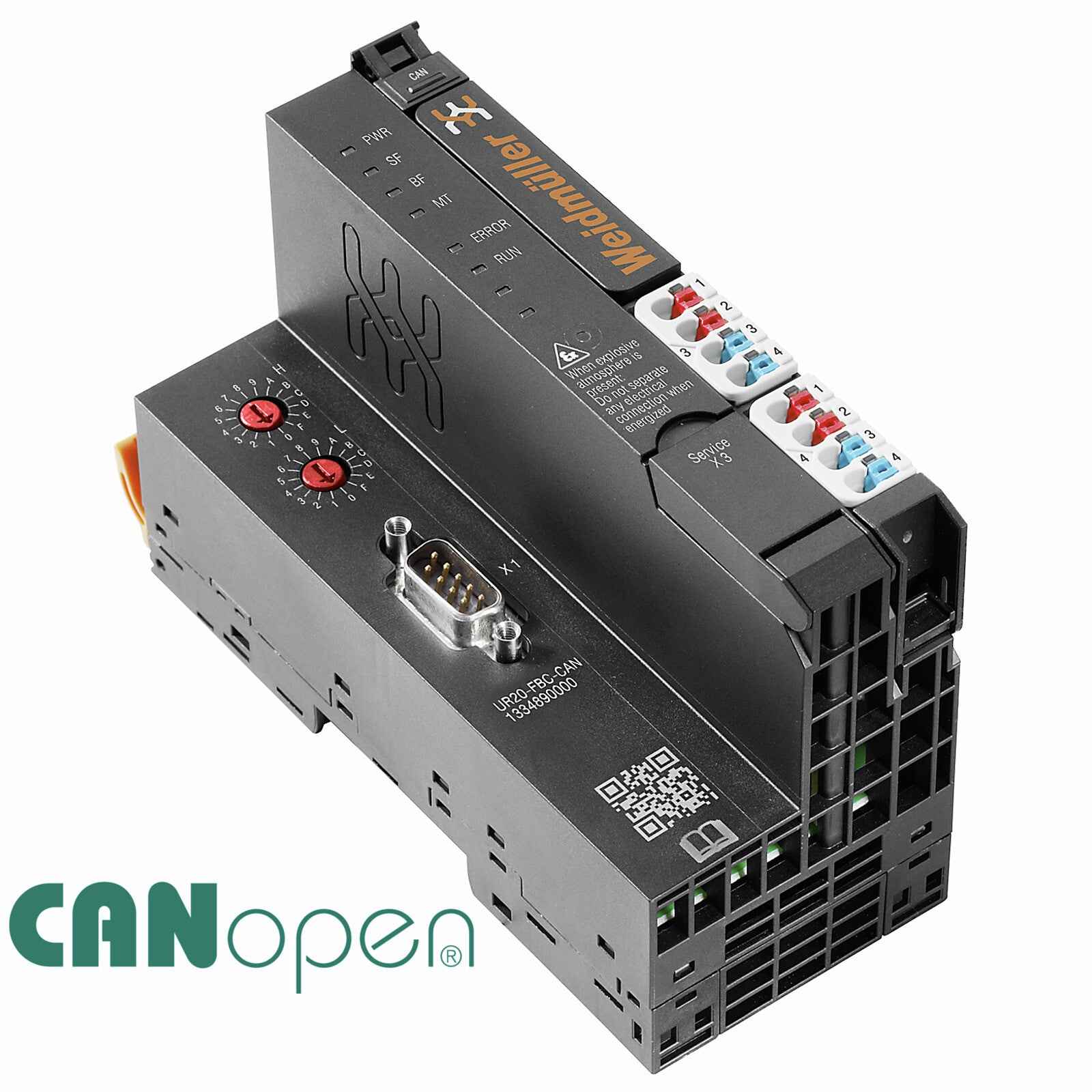

Remote I/O fieldbus coupler, CANopen - UR20-FBC-CAN

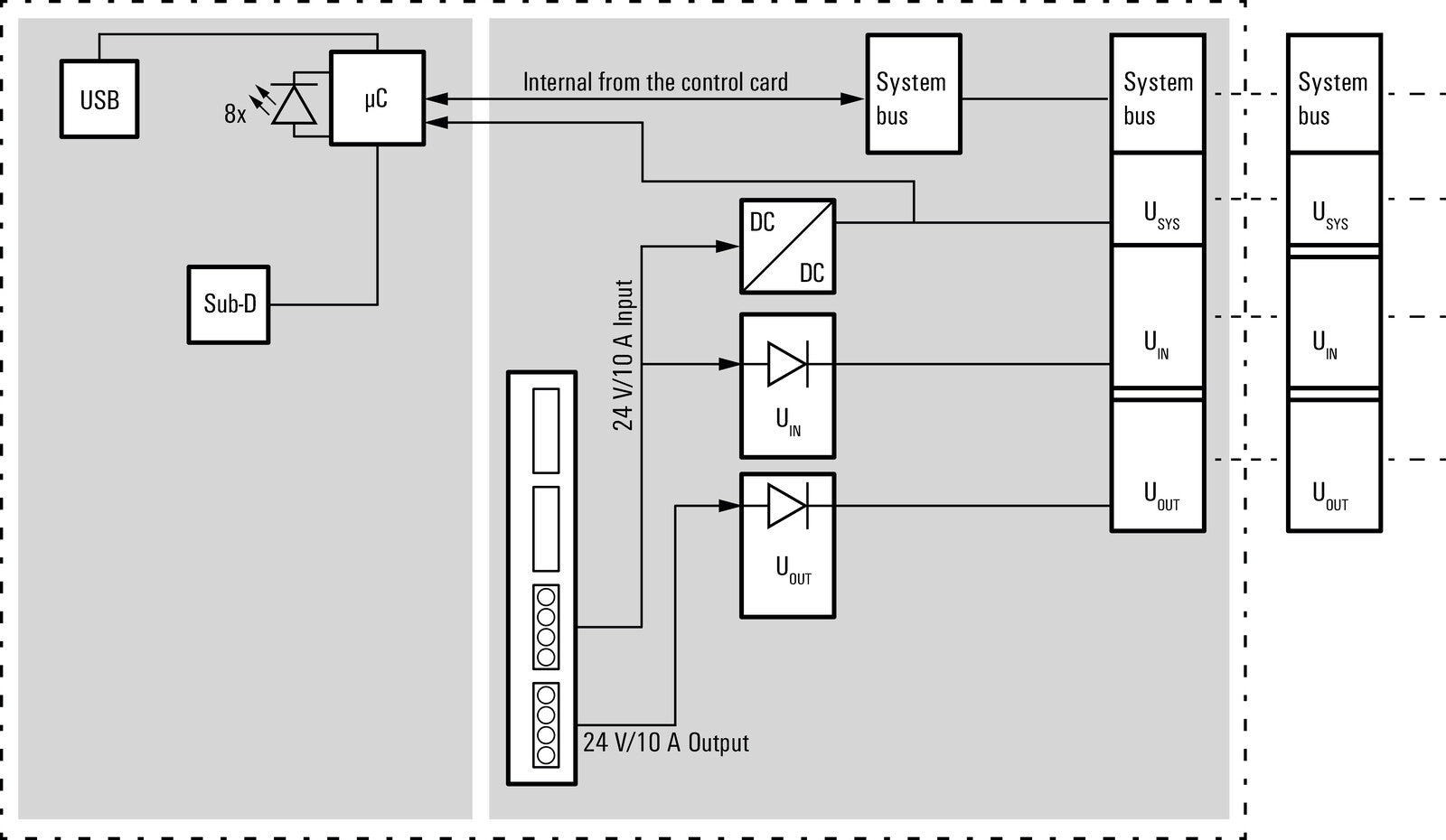

Weidmüller UR20-FBC-CAN is the CANopen fieldbus coupler for the u-remote IP20 remote I/O system, linking a station of up to 64 modules to a CANopen network at up to 1 Mbit/s. The fieldbus is connected via a 9-pin SUB-D male connector, and the coupler feeds up to 4 A from the 24 V DC system supply into the modules behind it, so no separate system power feed is needed for a typical station.

• Fieldbus: CANopen, up to 1 Mbit/s

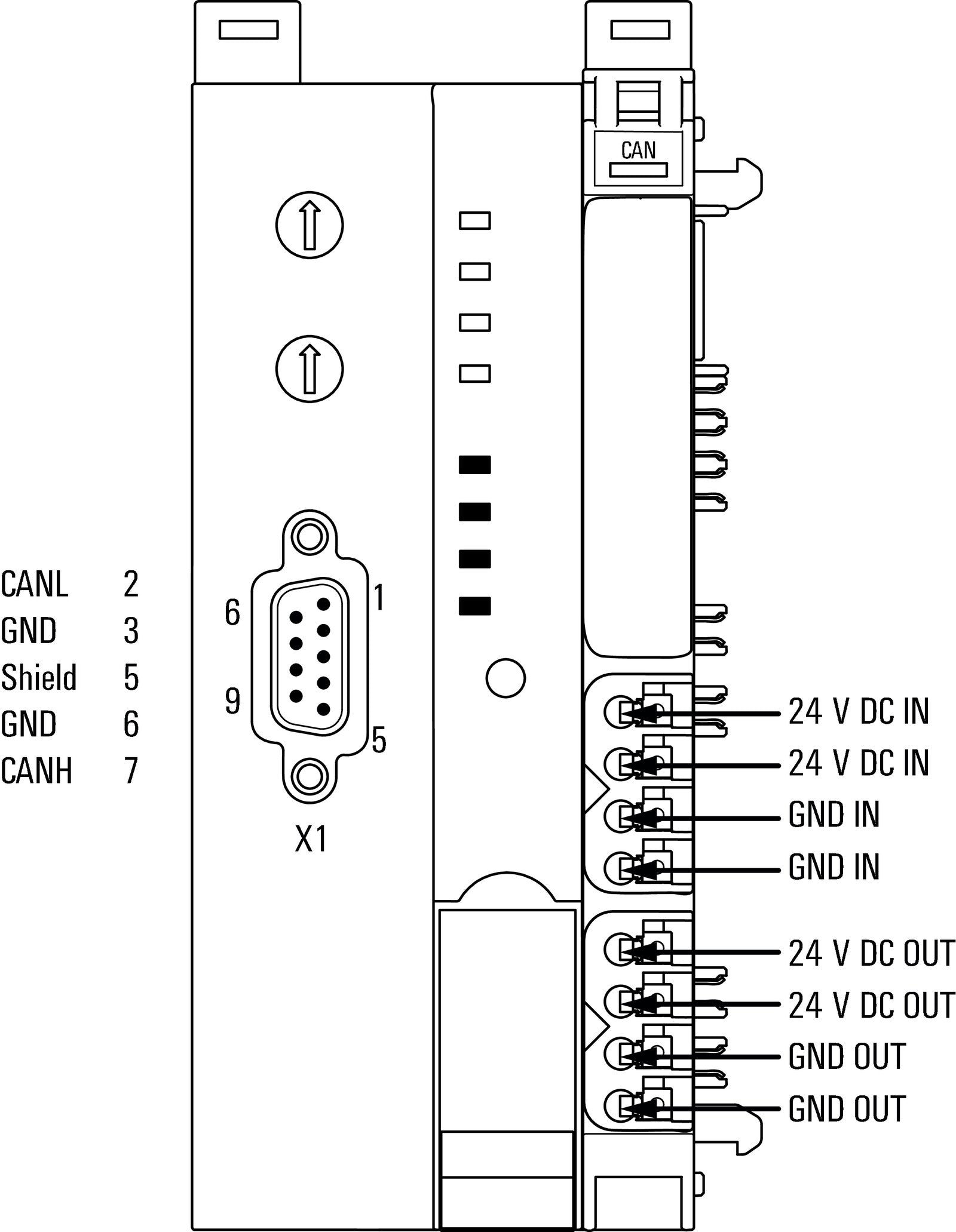

• Fieldbus connection: SUB-D 9-pin male connector
• System bus: up to 48 Mbit/s
• Max. modules per station: 64
• Process data per station: 488 byte
• Diagnostic data: 244 byte
• Service interface: Micro USB 2.0
• Supply voltage: 24 V DC +20 % / −15 %
• Current consumption: 90 mA typical from the system supply
• System supply available to modules: 4 A max.
• Connection system: PUSH IN, 0.14 to 1.5 mm²
• Operating temperature: −20 °C to +60 °C
• Dimensions (W x H x D): 52 x 120 x 76 mm
• Protection degree: IP20
• Approvals: UL (E141197), RoHS compliant
• Order number: 1334890000
