POWER SUPPLY, SWITCH-MODE POWER SUPPLY UNIT, 12 V | PRO BAS 120W 12V 10A

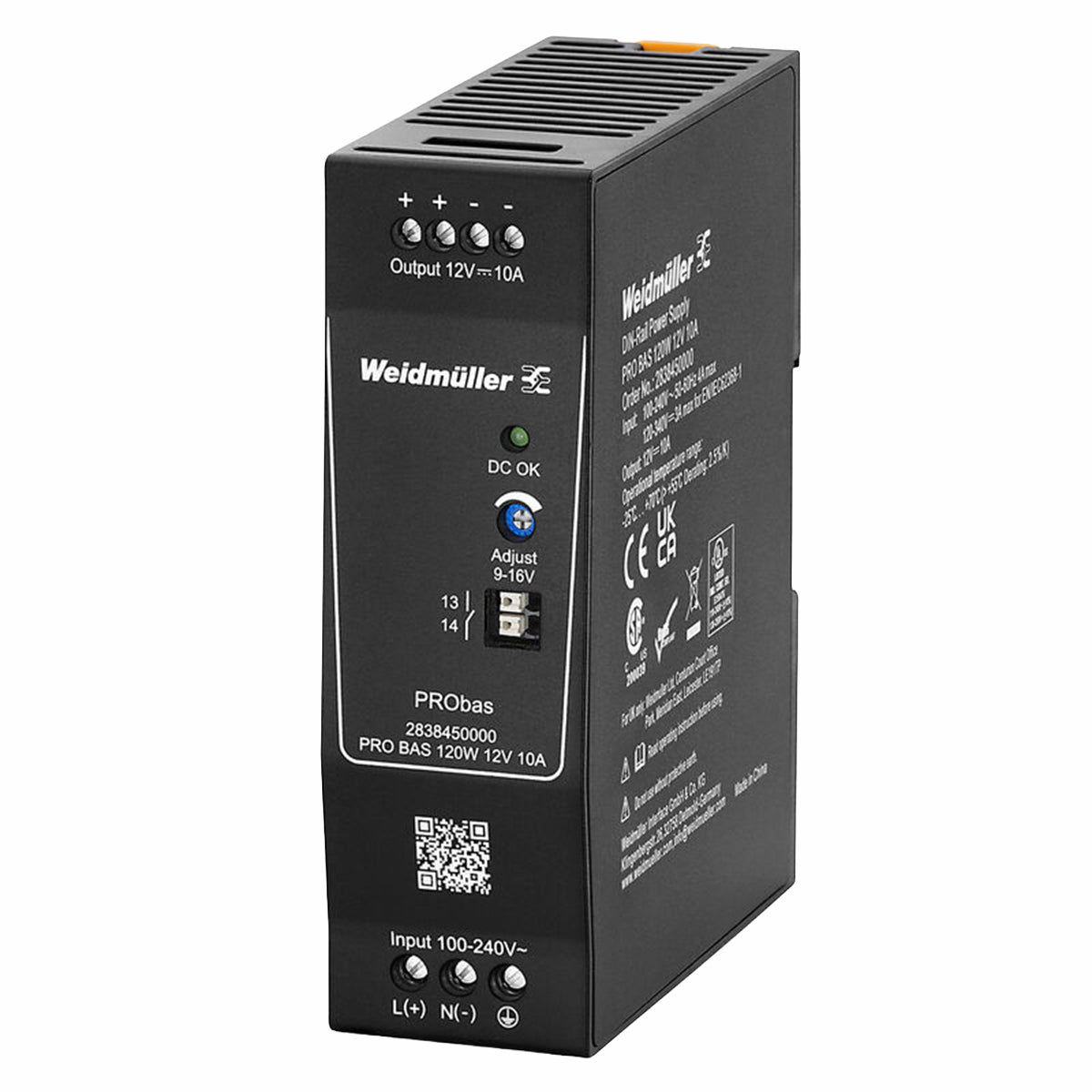

The Weidmüller PRO BAS 120W 12V 10A is a single-phase switch-mode power supply delivering 120 W at 12 V DC from a wide 85 to 264 V AC input, mounted horizontally on TS 35 DIN rail. PRO BAS is the basic tier of the Weidmüller Connect Power range, so it suits straightforward 12 V sensor, relay and comms loads where the diagnostics and dynamic power reserve of the PROtop units are not required.

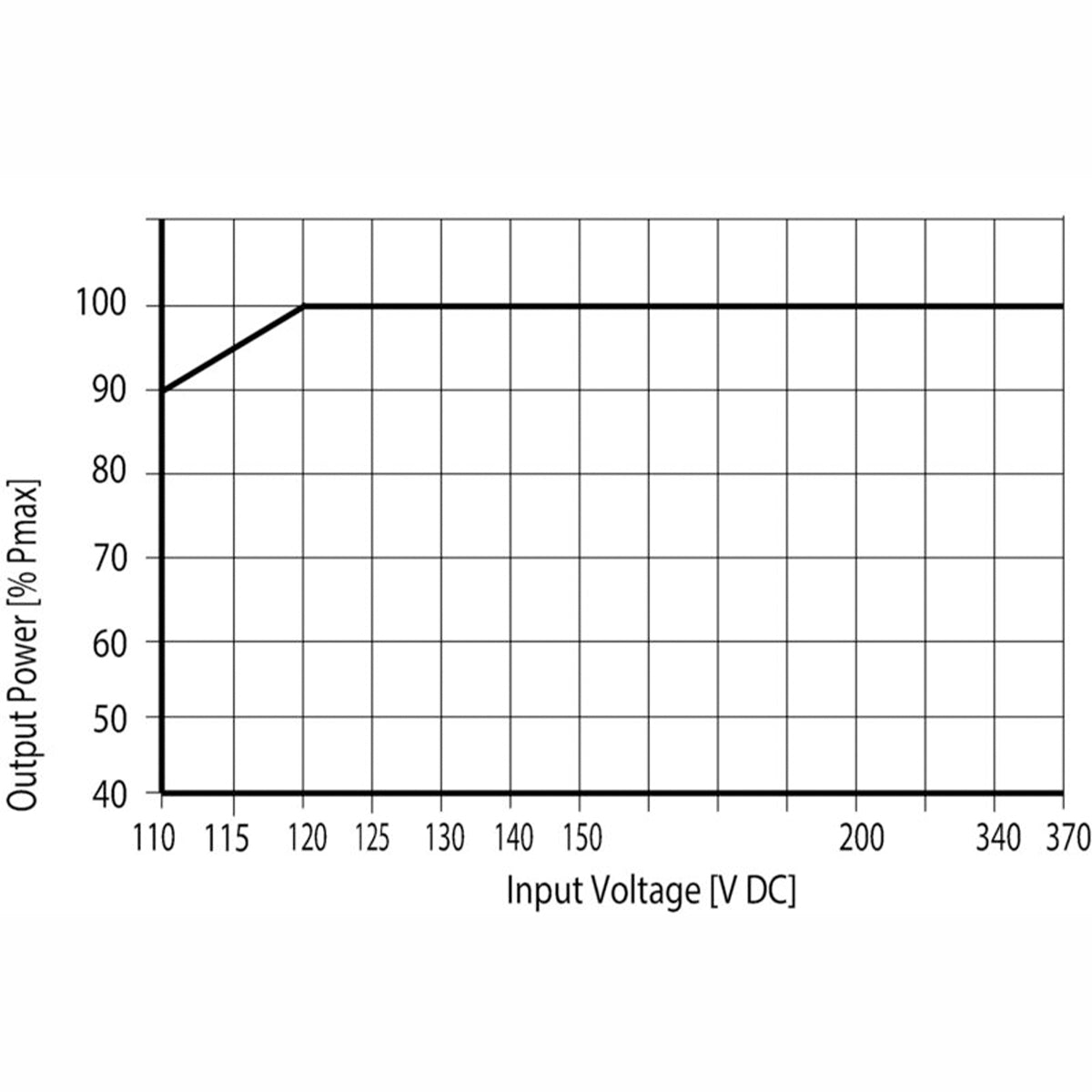

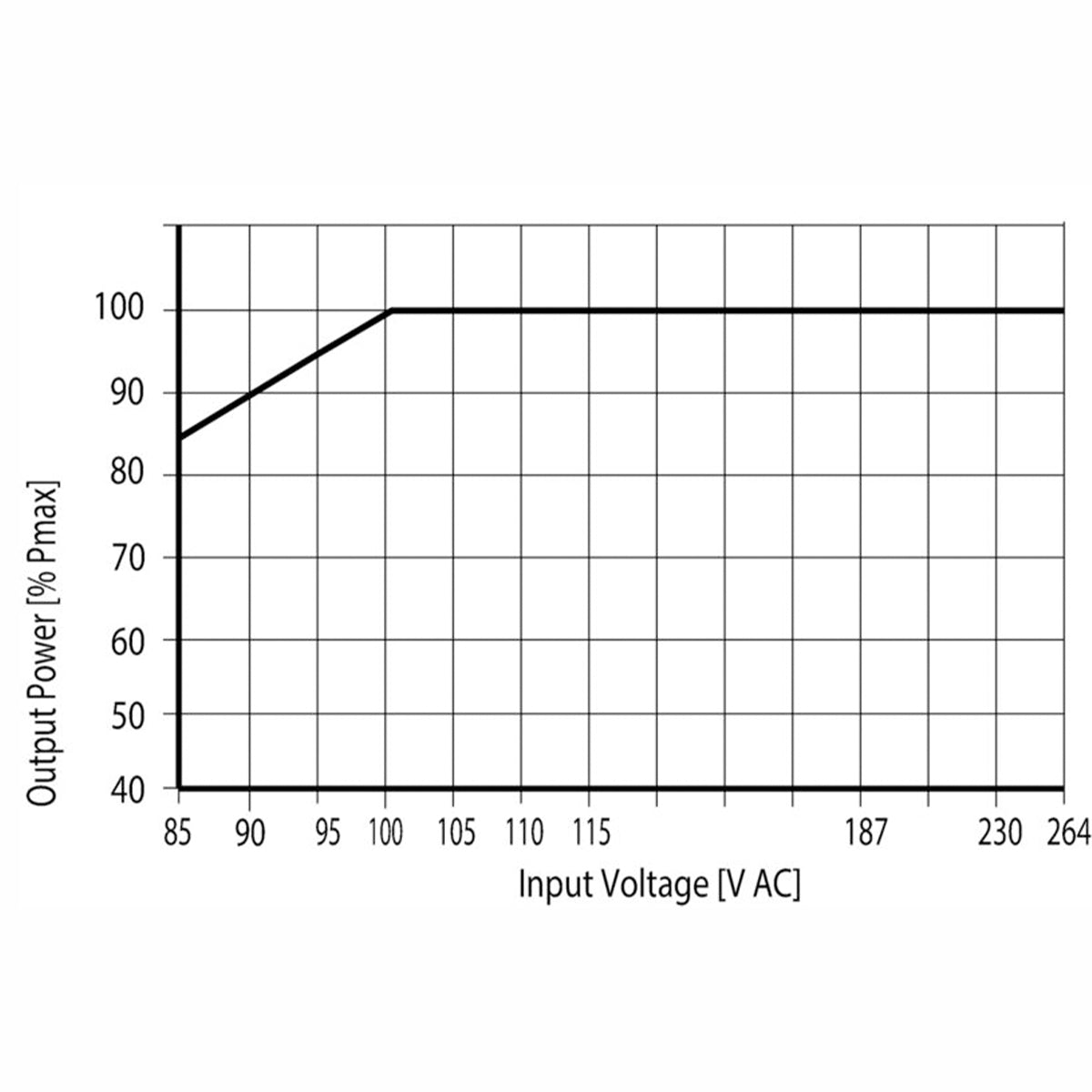

• Input voltage: 85 to 264 V AC, 45 to 65 Hz (single phase) / 110 to 370 V DC
• Output voltage: 12 V DC, adjustable 9 to 16 V

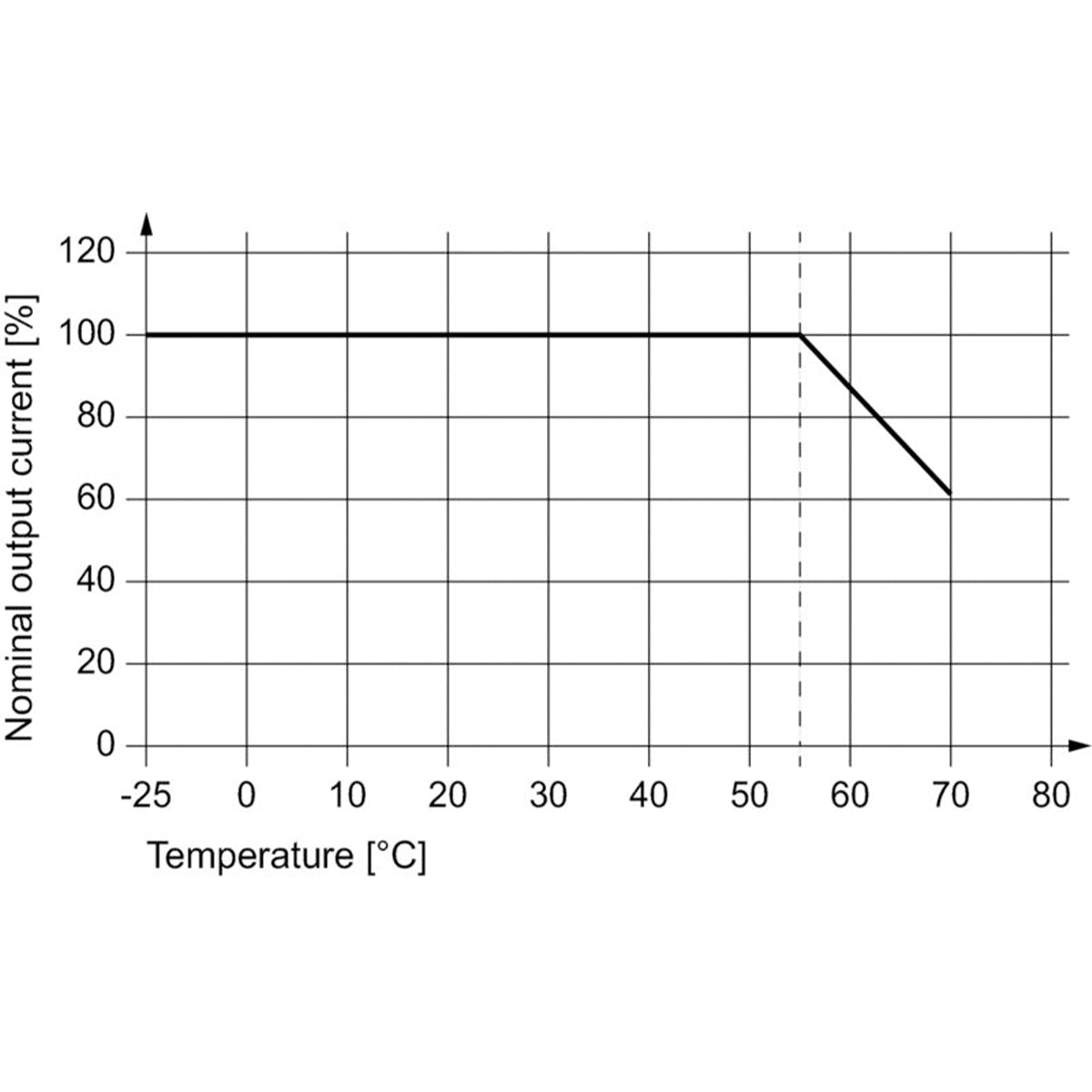

• Output current: 10 A at 55 °C, 6.25 A at 70 °C
• Output power: 120 W
• Efficiency: 90 % at 230 V AC
• Parallel operation: Yes, max. 3 units
• Mounting: Horizontal on TS 35 DIN rail, 50 mm clearance top and bottom, IP20
• Operating temperature: -25 °C to +70 °C
• Approvals: EN 61558-2-16, UL certificate E258476, RoHS
