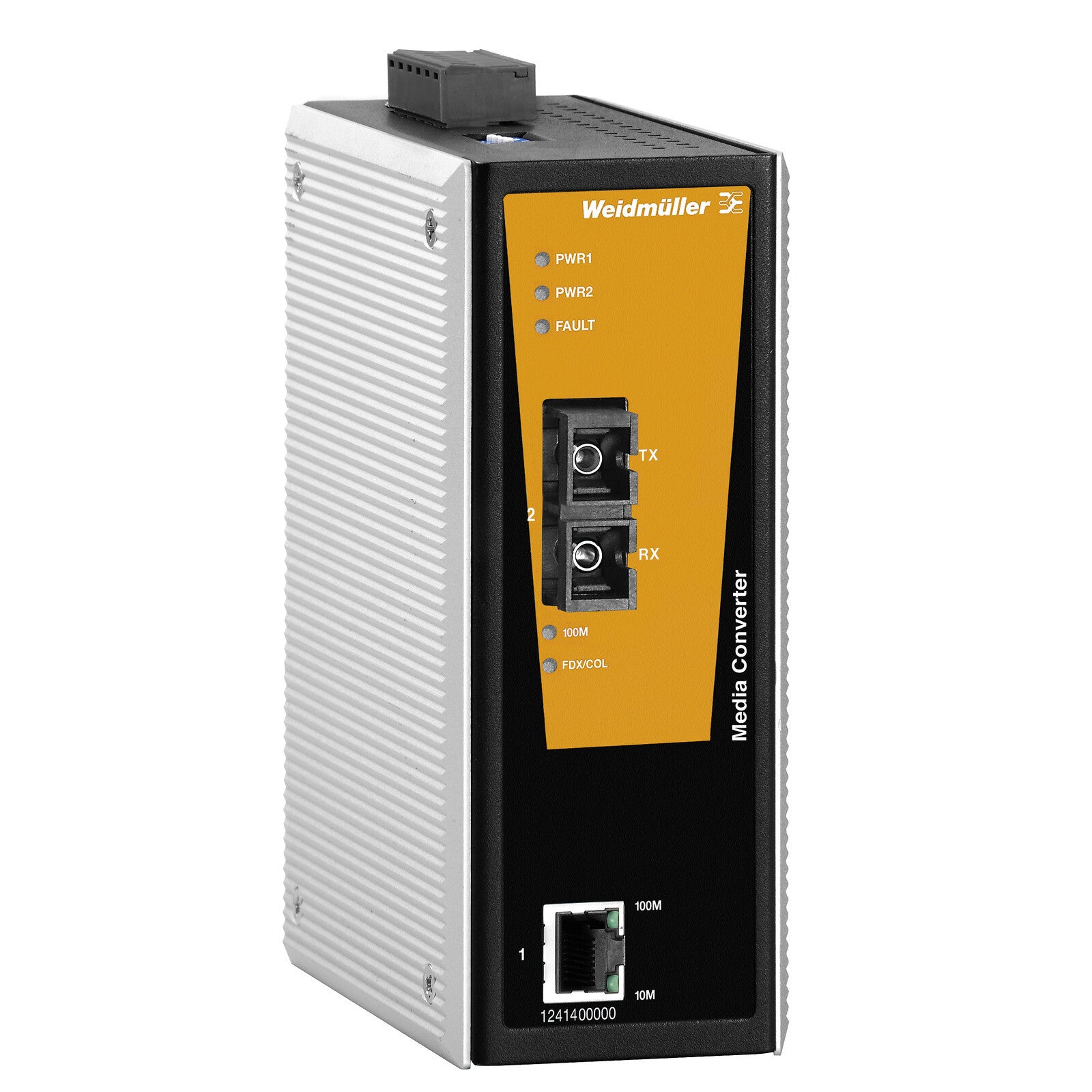

Media converter, Fast Ethernet, Number of ports: 1x RJ45, 1 * SC Multi-mode, IP30, 0 °C...60 °C - IE-MC-VL-1TX-1SC

Weidmüller IE-MC-VL-1TX-1SC is a DIN-rail media converter that links a 10/100BaseT(X) copper segment to a 100BaseFX multimode fibre run terminated in an SC connector, over distances of up to 5 km. It runs from redundant 12 V ... 45 V DC inputs and sits in an IP30 metal housing, which suits it to control cabinets where the fibre leg has to cross electrically noisy ground or separate earthing systems.

• Ports: 1 x RJ45 10/100BaseT(X), 1 x 100BaseFX fibre-optic
• Fibre mode and connector: Multimode, SC
• Wavelength: 1,300 nm typical (TX 1,260 ... 1,360 nm)
• Maximum range: 5 km typical
• Link budget: 12 dB
• Transmission speed: 100 Mbit/s Fast Ethernet
• Supply voltage: 24 V DC nominal, 12 V ... 45 V DC, 2 redundant inputs
• Current consumption: 0.16 A at 24 V DC, 0.32 A at 12 V DC
• Operating temperature: 0 °C ... 60 °C
• Storage temperature: -40 °C ... 85 °C
• Humidity: 5 ... 95 % non-condensing
• Dimensions (W x H x D): 53.6 x 135 x 105 mm
• Weight: 765 g
• Mounting: DIN rail
• Protection degree: IP30
• Approvals: UL/cULus (E141197), ATEX Zone 2, RoHS; EN 55032 / EN 55024
