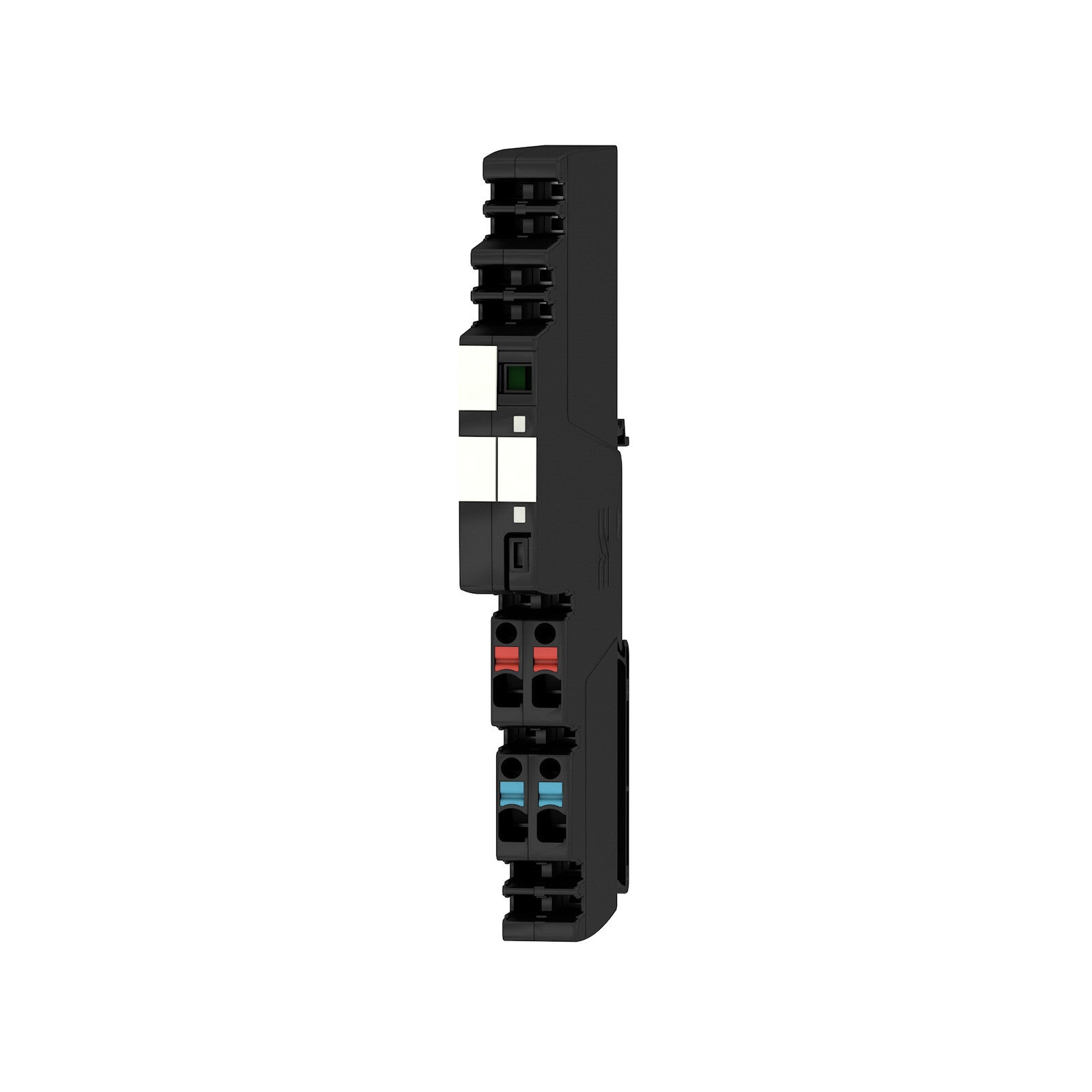

MAXGUARD ELECTRONIC LOAD MONITORING, 12.00 A, 24 V DC - AMG ELM-12

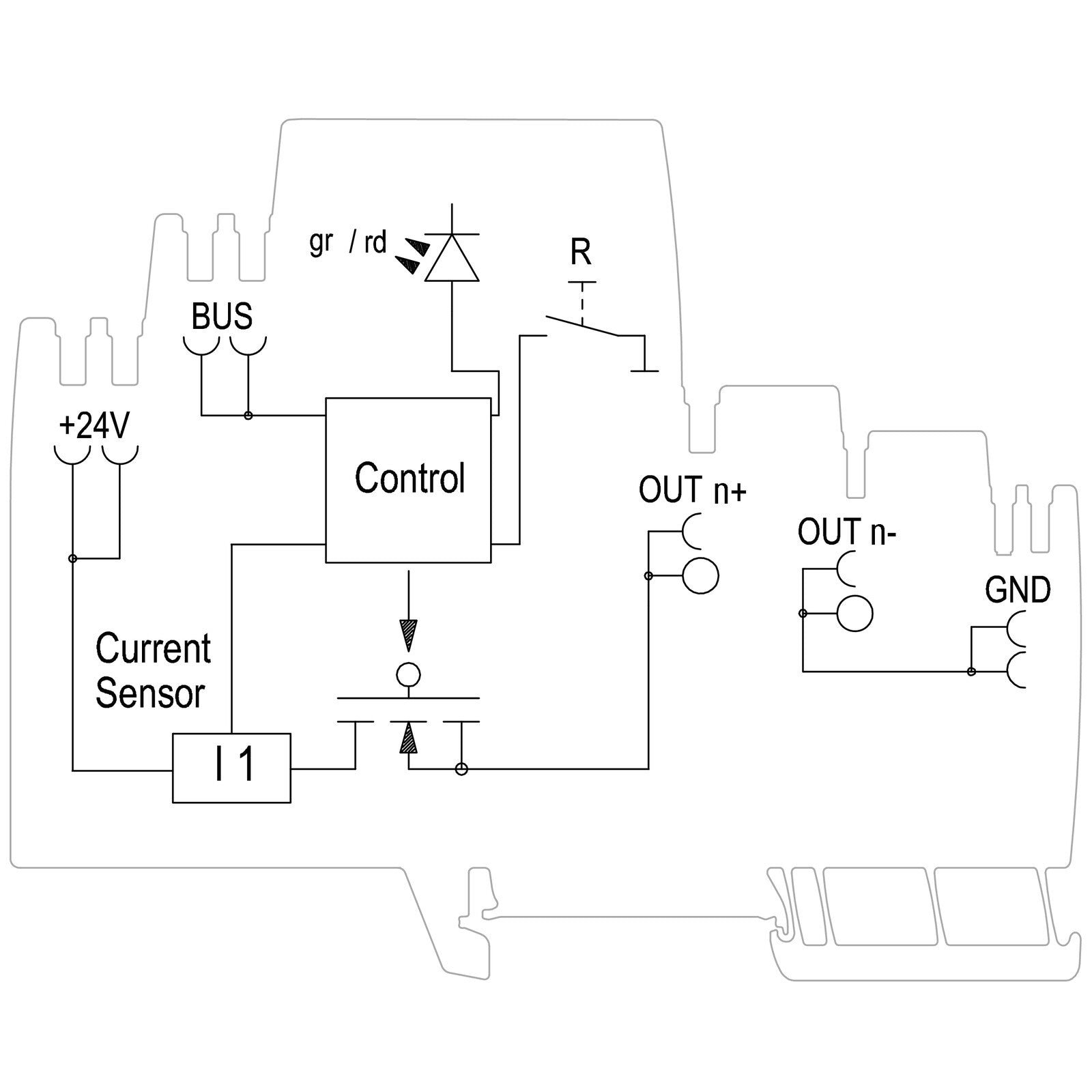

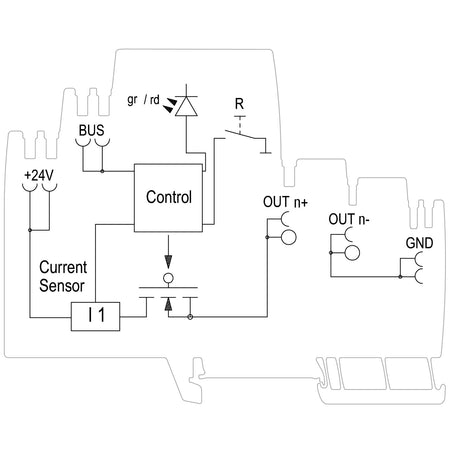

Weidmüller maxGUARD AMG ELM-12 is a single-channel electronic load monitoring module with a trip current selectable on the module at 4, 6, 8, 10 or 12 A, covering the mid current band of a 24 V DC control panel from one part number. It uses the 12.2 mm double-width housing with doubled terminals (++ / −−) and, like the other adjustable ELM types, provides a positive-switching transistor output for pre-warning and alarm so a PLC sees a circuit approaching its limit before it disconnects.

• Rated current: 12 A maximum, adjustable on the module to 4, 6, 8, 10 or 12 A
• Channels: 1 output channel, 4 terminals (++ / −−)
• Supply voltage: 24 V DC nominal, 18 V DC to 30 V DC operating range

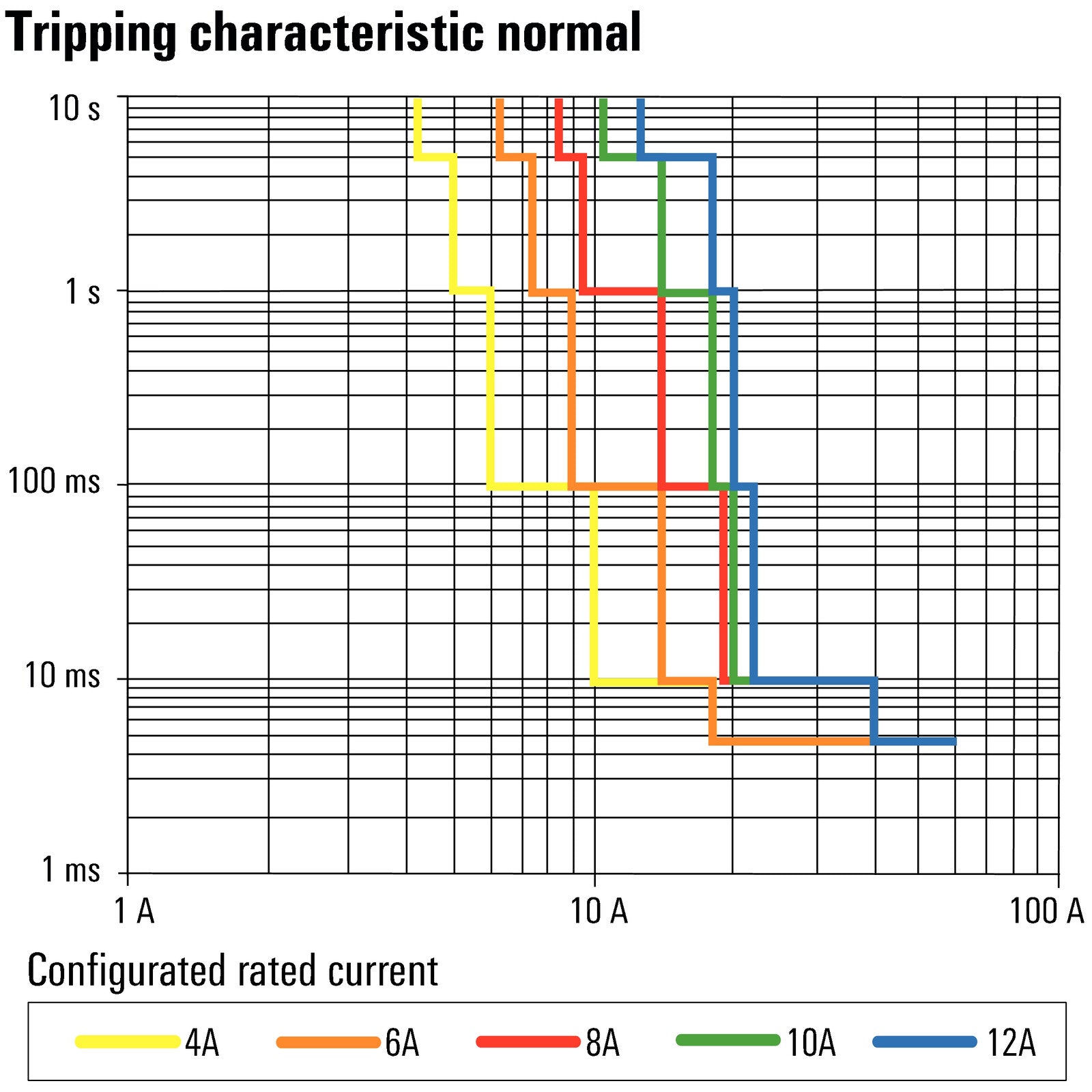

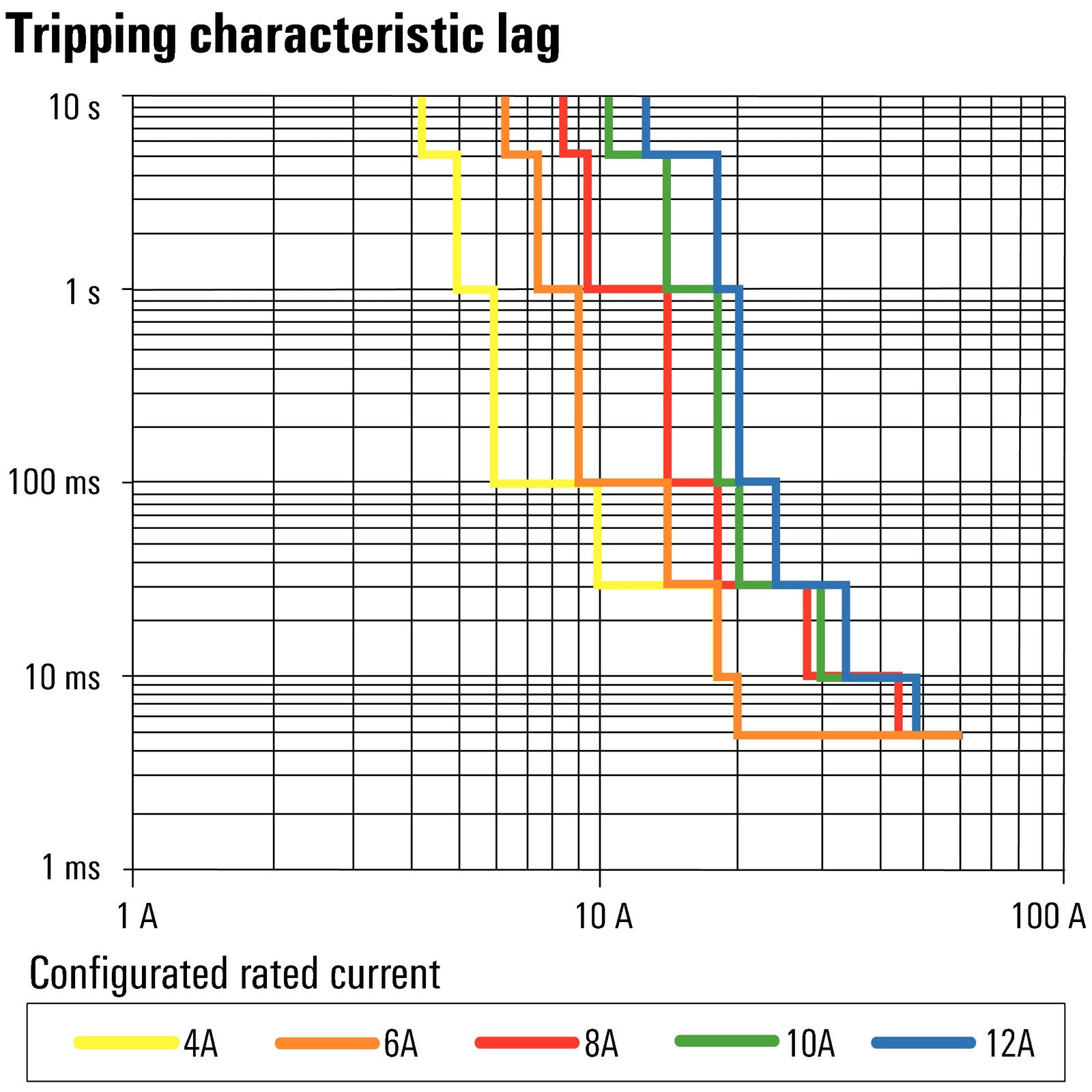

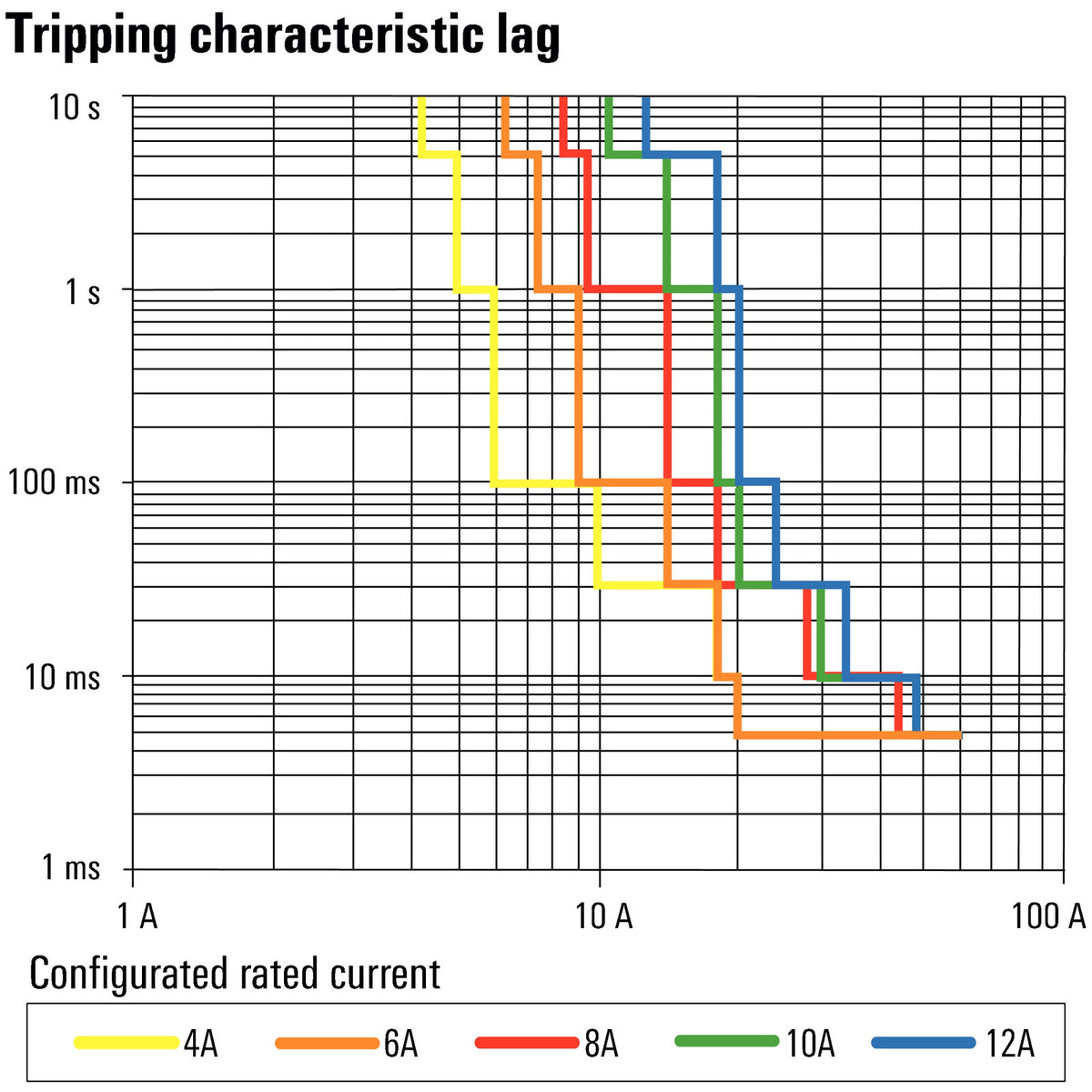

• Trip behaviour: overload and short-circuit disconnection to the published characteristic curve; trip current and trip characteristic both adjustable
• Switch-on delay: 1 s
• Maximum load capacitance: 20,000 µF
• Signalling output: positive-switching transistor output for pre-warning and alarm
• Pre-warning: I out > 90 % of set rated current, indicated by flashing green LED
• LED indication: green for healthy operation; red for switched off, flashing red for tripped, fast-flashing red for internal fault
• Reset: manual, via the front function key (activation time < 3 s for reset / ON)
• Connection system: PUSH IN, 0.14 mm² to 2.5 mm²
• Width: 12.2 mm
• Dimensions (W x H x D): 12.2 x 125 x 96.5 mm
• Mounting: TS 35 DIN rail; cross-connectable with maxGUARD potential distribution terminals to build a combined load monitoring and distribution station
• Operating temperature: −25 °C to +70 °C
• Protection degree: IP20
• Approvals: cULus (file E258476), RoHS compliant
• Order number: 2080410000
