AS-20E3-20A 2000A 3P | LS Metasol 85kA Air Circuit Breaker Drawout, Smart Trip + Vertical Cradle

SKU
$5,465.27 ex. GST $6,011.80 inc. GST
Restocking
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock
Updated 5 minutes ago
Shipping & pickup →
  • Weight (kg) 85
  • Voltage 690VAC
  • Current 2000A
  • Poles 3 Pole
  • Contacts 3NO+3NC
  • Size E Frame

Standards & certifications

CEEU conformity IEC/EN 609471 · 609472 Tested standards
Product Brochure PDF

AS-20E3-20A 2000A 3P | LS Metasol 85kA Air Circuit Breaker Drawout, Smart Trip + Vertical Cradle

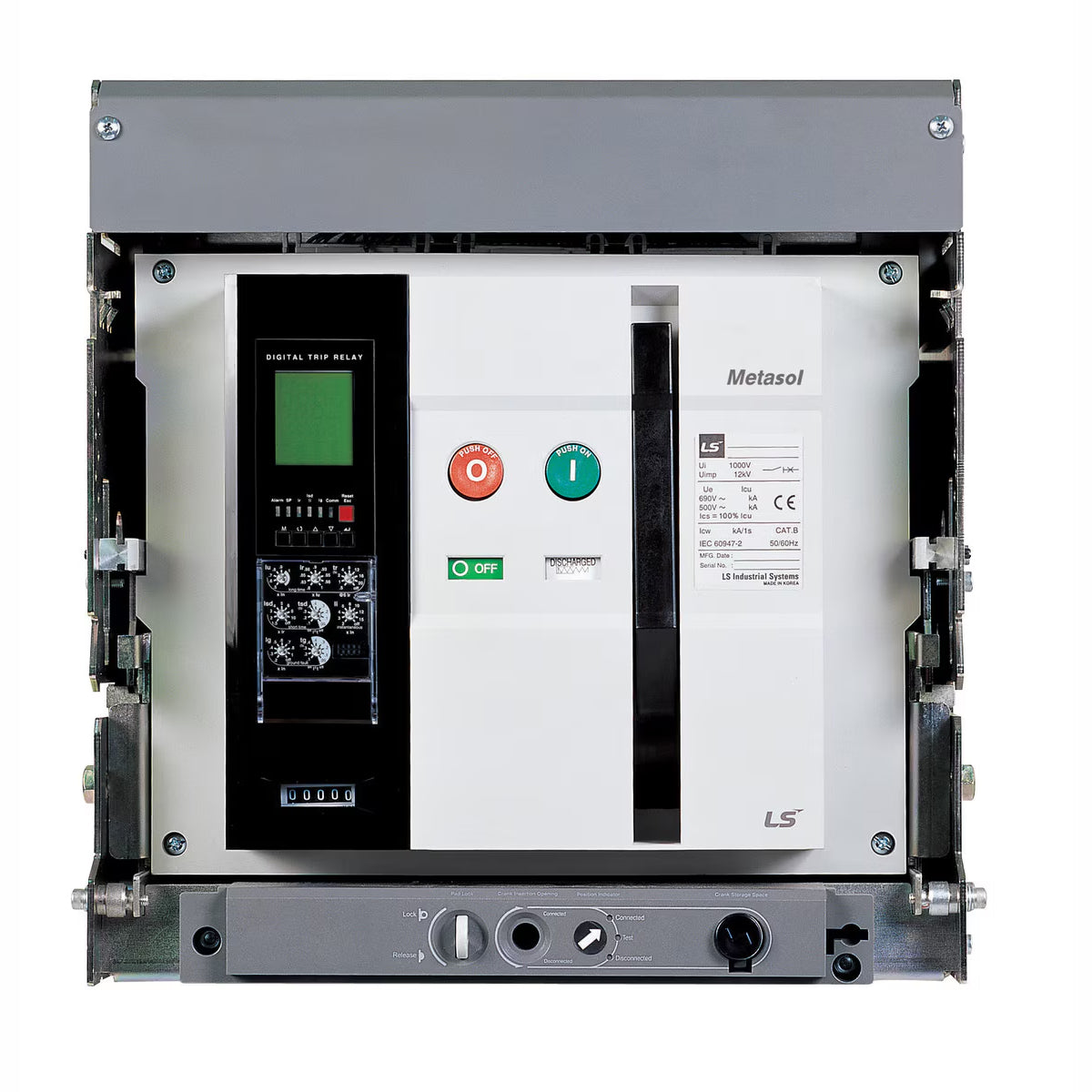

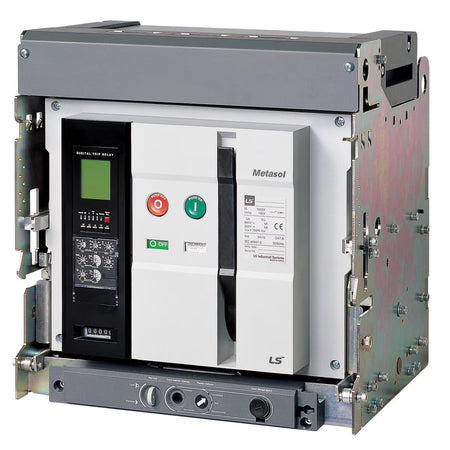

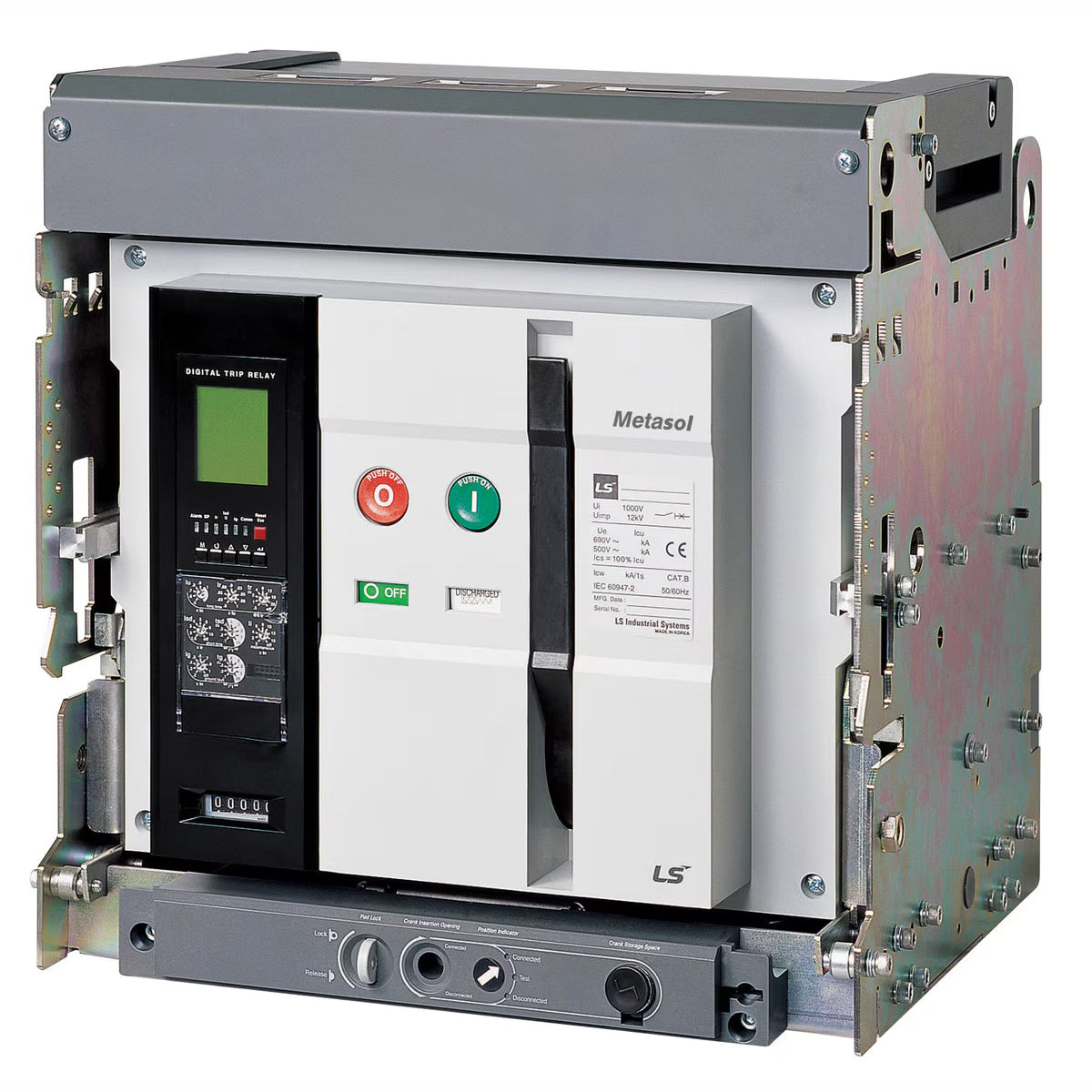

LS Electric AS-20E3-20A: A 2000A E-frame drawout ACB with 85kA breaking capacity, suited to main incomer and bus-coupler positions where fault levels exceed what a D-frame breaker can handle. Supplied with a vertical-terminal drawout cradle.

Features and Specifications

  • Rated current (In): 2000A, 3 pole
  • Rated operational voltage (Ue): 690VAC, 50/60Hz. Rated insulation voltage (Ui): 1000V. Rated impulse withstand (Uimp): 12kV
  • Rated ultimate breaking capacity (Icu): 85kA at 220–415V, 85kA at 550–690V. Service breaking capacity Ics = 100% Icu
  • Rated making capacity (Icm): 187kA peak at 415V
  • Rated short-time withstand (Icw): 85kA 1s / 75kA 2s / 65kA 3s
  • Frame: E-frame. Mechanical life 15,000 operations, electrical life 5,000 operations
  • Dimensions (drawout with cradle, H x W x D): 430 x 412 x 375 mm
  • Mounting: Drawout, supplied with AL-S20~25E3-AVFN vertical drawout cradle (automatic connection, vertical terminals, safety shutter)
  • Trip relay: A-type (ammeter) electronic trip relay with L, S, I and G protection, 50Hz self-powered (AH5)
  • Options fitted: Manual spring charging (no motor), no closing coil, no shunt trip, 3a3b auxiliary contacts (OFF-charge), no UVT, On/Off button lock
  • Operating temperature: −20°C to +60°C (derating above 45°C)

Standards (& Conformities): IEC 60947-1, IEC 60947-2, CE. Approvals: KEMA, KERI, KS, GOST.

Ordering Code:

AS-20E3-20A MAD0D0AX AH5U0B + AL-S20~25E3-AVFN

What's Included: AS-20E3-20A air circuit breaker and AL-S20~25E3-AVFN drawout cradle.

Full ratings, trip curves and accessories: LS Susol & Metasol ACB catalogue.


Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. Contact TROPAC for selection support.
