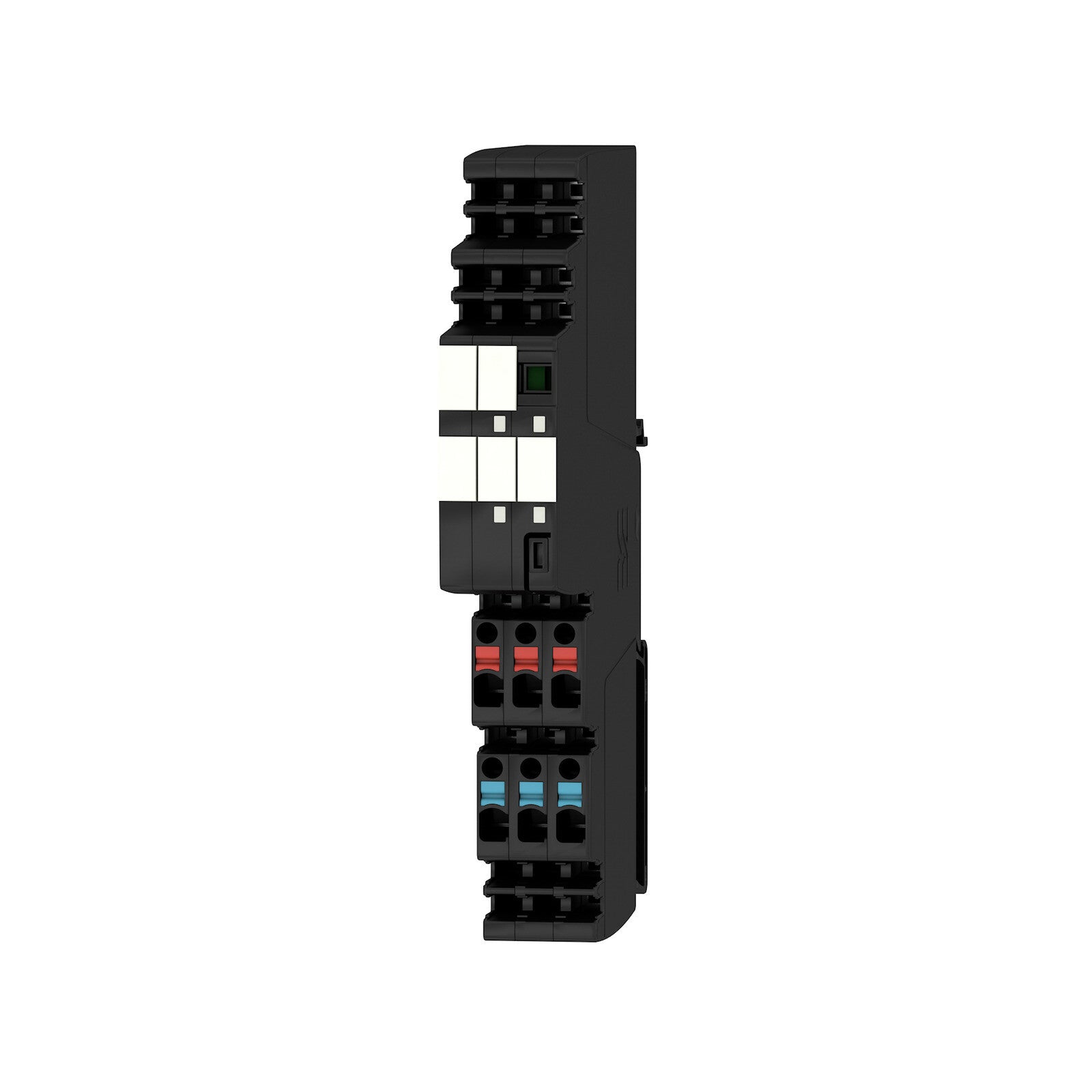

ELECTRONIC LOAD MONITORING, 10 A, 24 V DC | AMG ELM-10D CO

The Weidmüller maxGUARD AMG ELM-10D CO is the 10 A member of the relay-switched maxGUARD load monitoring family, where the D suffix denotes two-pole output switching so both load poles are disconnected on trip rather than the positive leg alone. The CO suffix denotes a conformal-coated circuit board, which is what qualifies the module for the extended maxGUARD range used in shipbuilding and hazardous-area applications. Rated current is adjustable and the higher 20,000 µF capacitive load rating suits it to larger DC loads and switched-mode devices with substantial inrush.

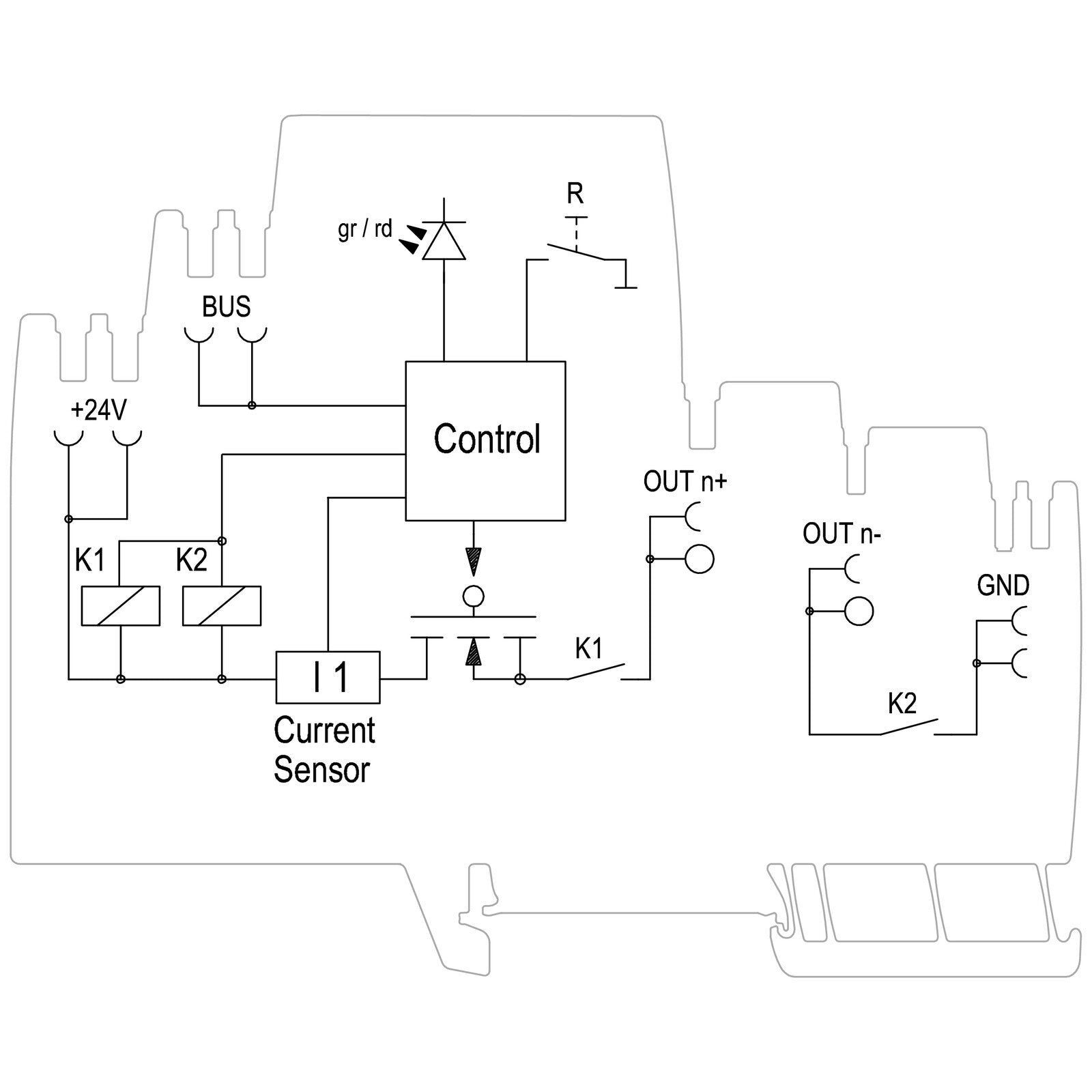

• Function: Electronic load monitoring module with relay-switched two-pole load disconnection and integrated potential distribution
• Circuit board: Conformal coated (CO), for marine and hazardous-area duty

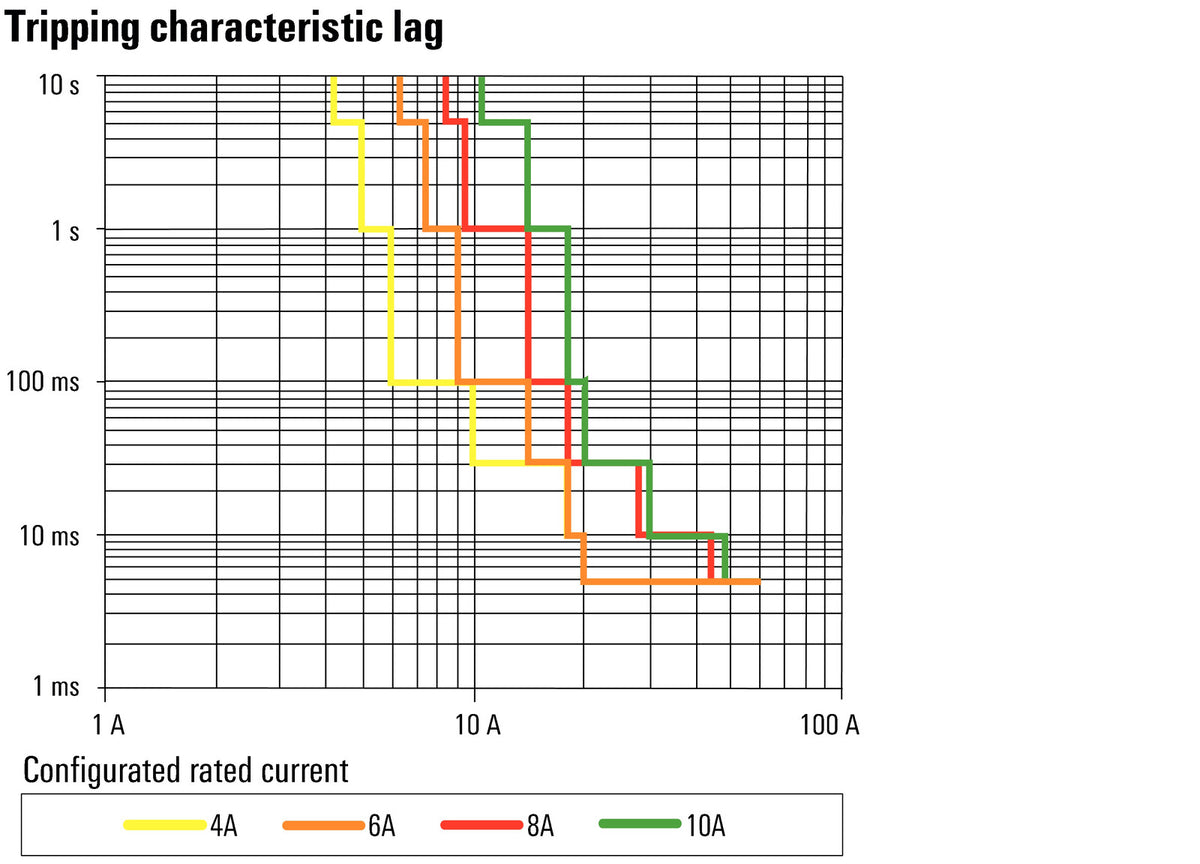

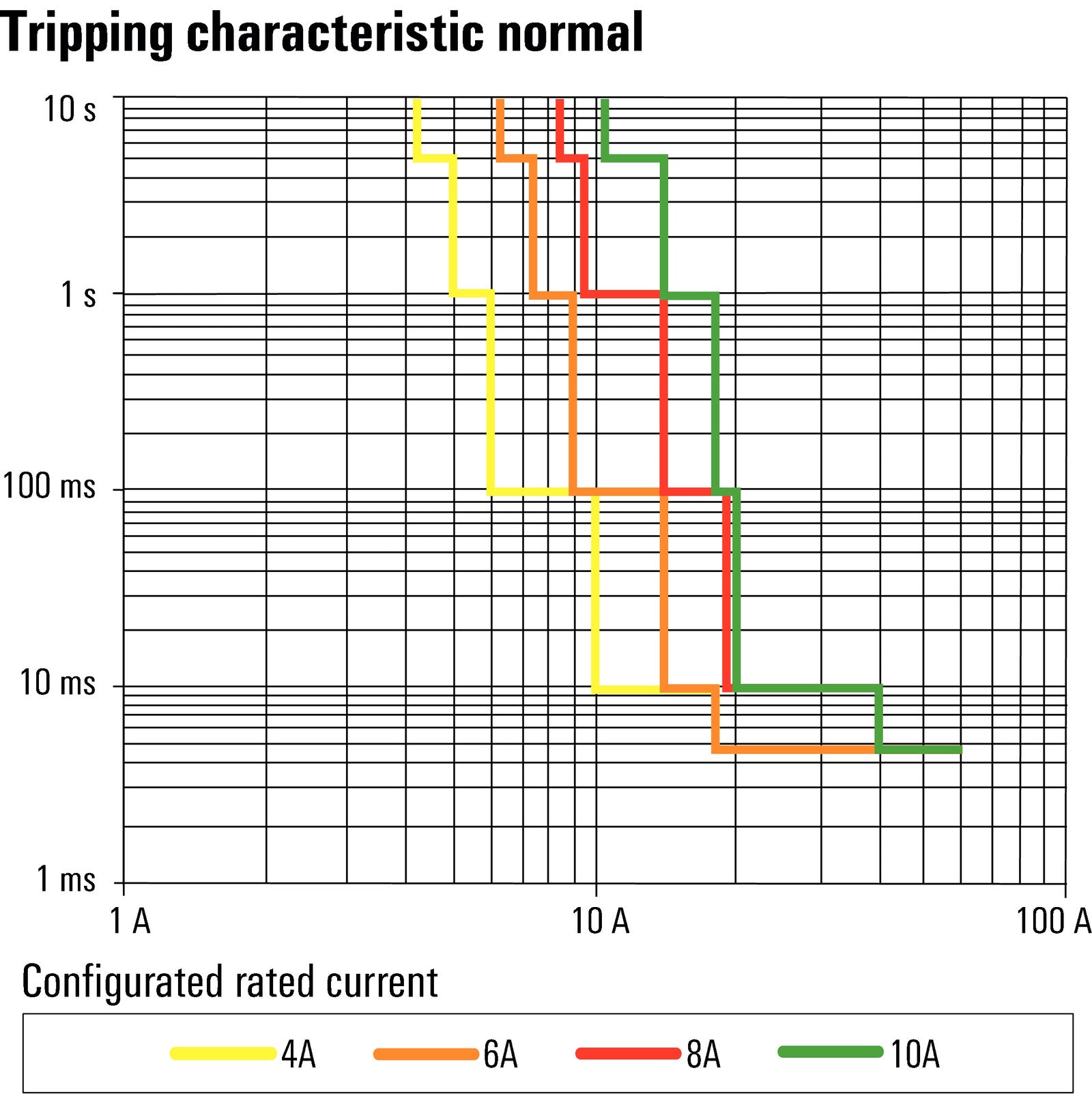

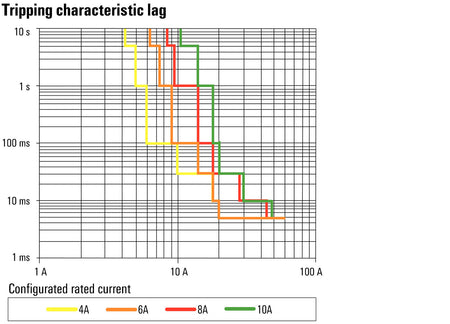

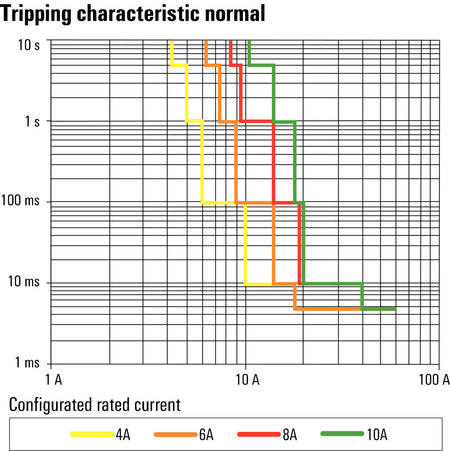

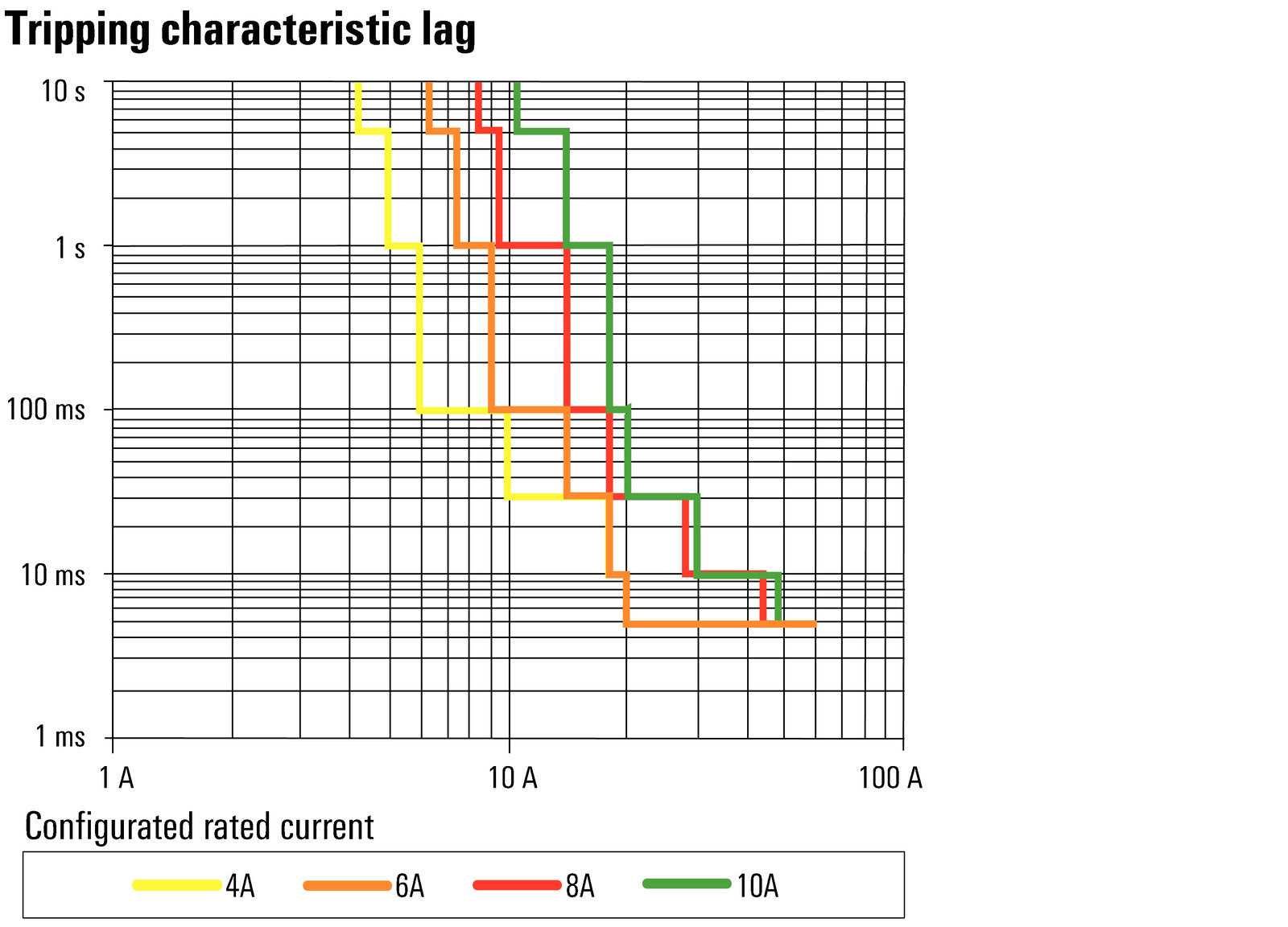

• Rated current: 10 A, adjustable
• Output switching: Relay to activate the output; all-pole (two-pole) load disconnection on trip
• Supply voltage: 24 V DC, range 18…30 V DC
• Current consumption: 40 mA idle, I(out) + 50 mA at full load
• Capacitive load: 20,000 µF
• Switch-on delay: 1 s
• Signalling outputs: Transistor output, positive-switching — pre-warning and alarm
• Status LEDs: Green (fault-free operation; flashing when I(out) > 90 % of rated), red (load monitoring disconnected; flashing when triggered; rapid flashing on internal error)
• Control: Function key, activation time < 3 s for Reset / ON
• Output terminals: 6 (3 x +, 3 x −)
• Connection system: PUSH IN
• Width: 18.3 mm
• Dimensions (W x H x D): 18.3 mm x 125 mm x 96.5 mm
• Operating temperature: −25 °C to +70 °C
• MTTF: 2,282,000 h (SN 29500)
• Protection degree: IP20
• Approvals: UL (file E258476), RoHS compliant
• Order number: 2082470000
