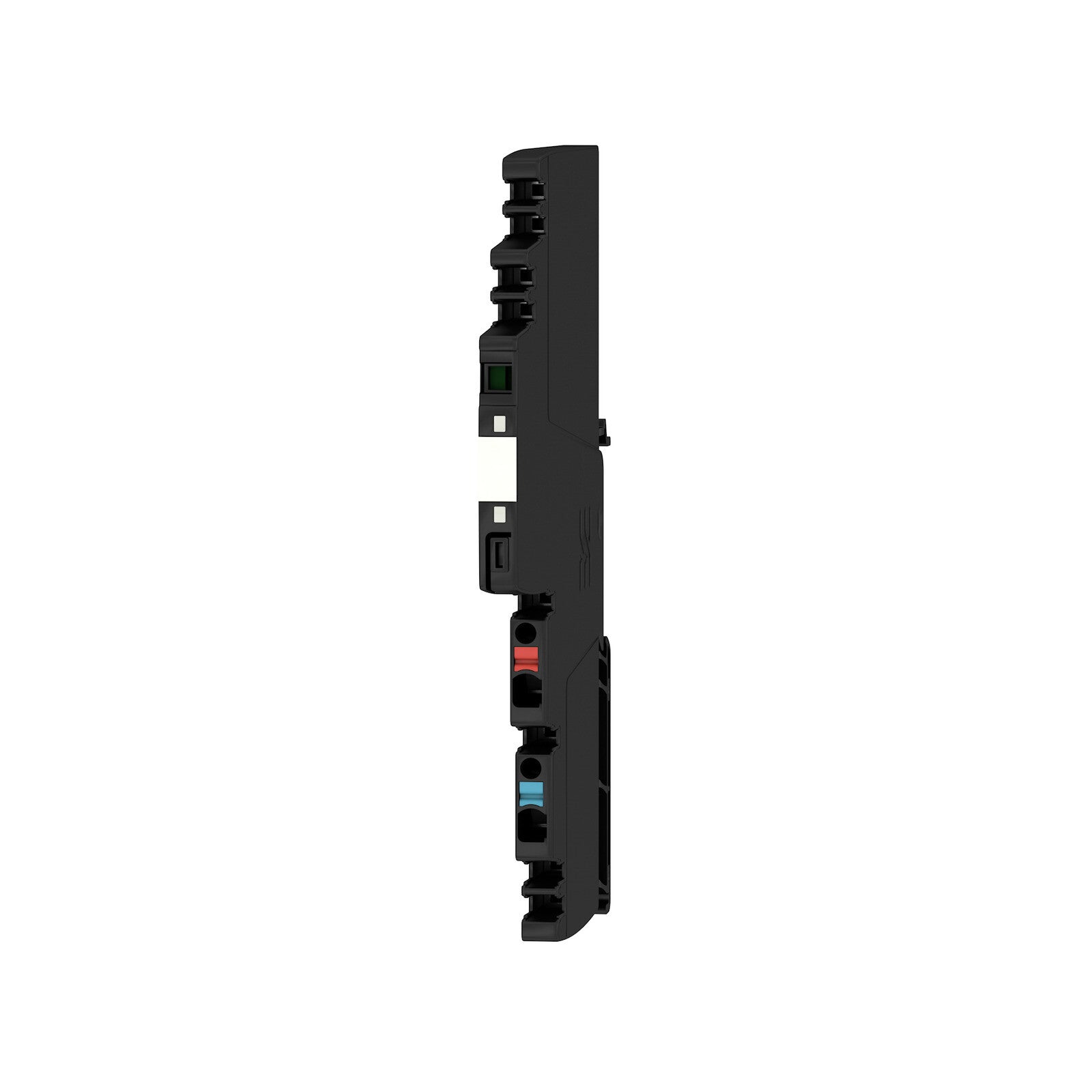

ELECTRONIC FUSE 1A 24 V DC | AMG ELM-1 LIM CL2 EX

The Weidmüller maxGUARD AMG ELM-1 LIM CL2 EX is a 1 A single-channel electronic load monitoring module from the extended maxGUARD range built for shipbuilding and hazardous-area applications. The suffixes are what you are paying for: LIM gives it a current-limiting trip characteristic rather than a straight cut-off, CL2 keeps the output inside the Class 2 limit to UL 1310, and EX denotes the coated-PCB construction and extended −40 °C rating of the Ex and marine variant. At 6.1 mm wide it occupies a single maxGUARD slot on the main current bars.

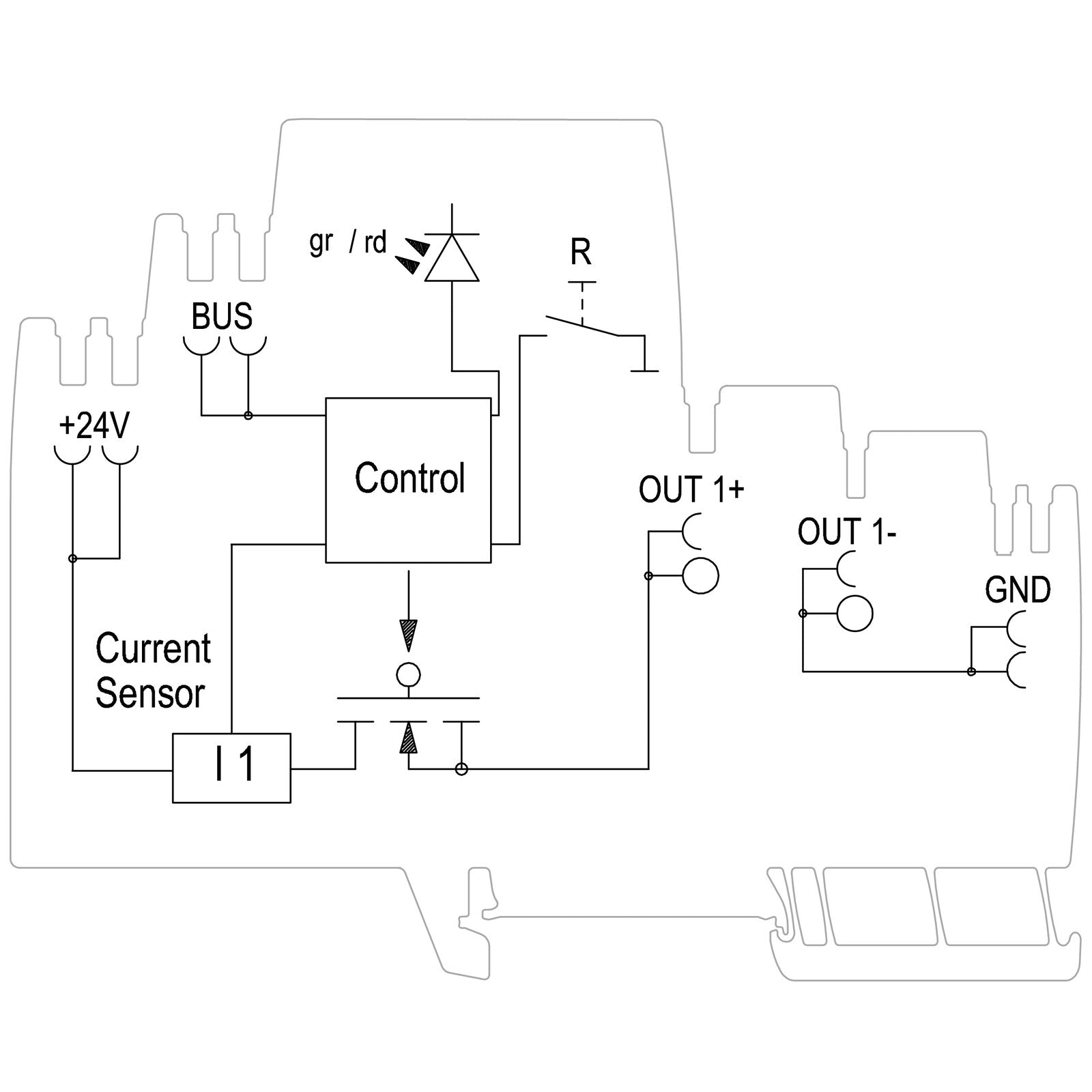

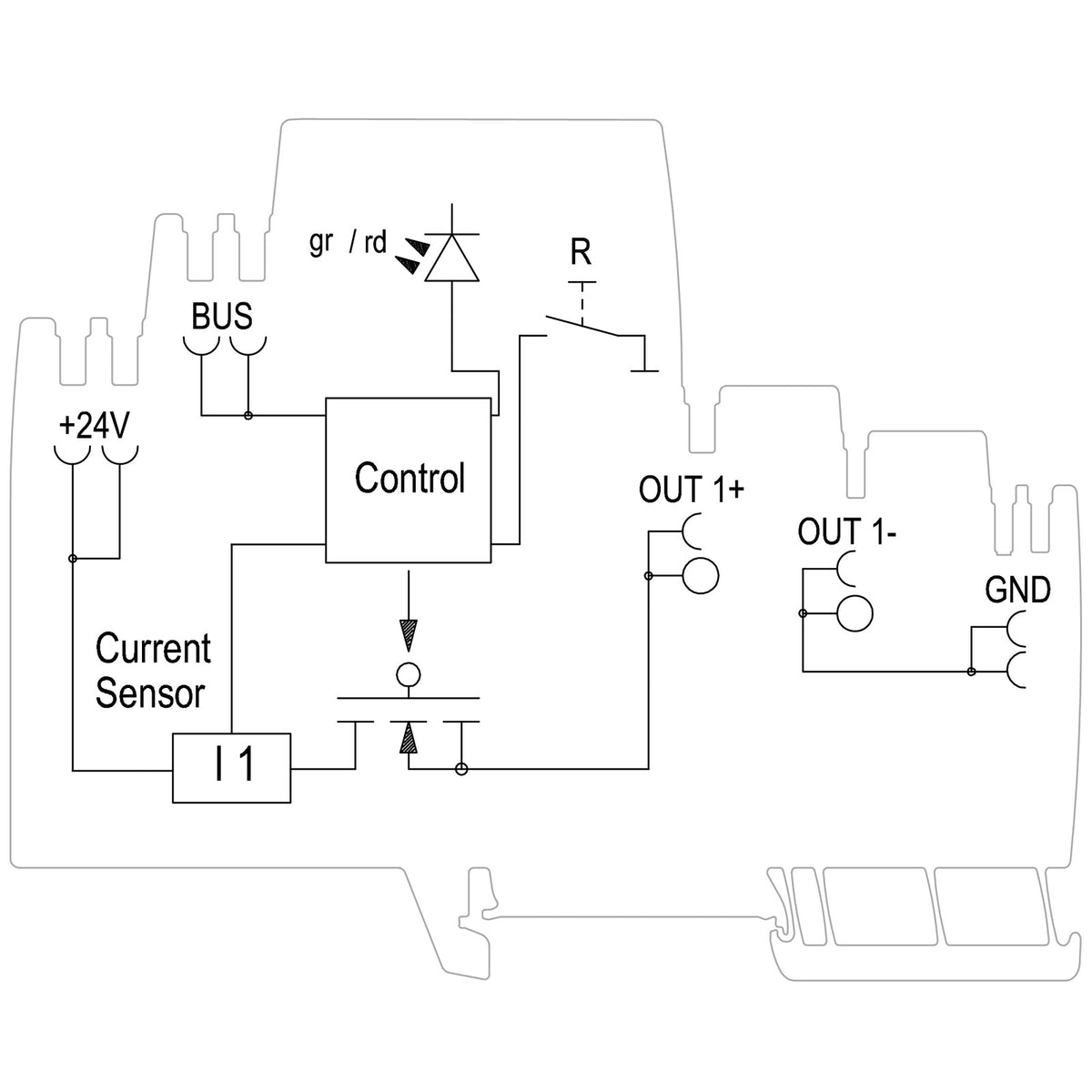

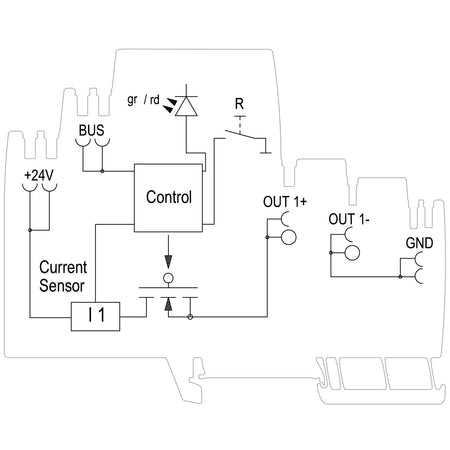

• Function: Single-channel electronic load monitoring / electronic fuse for 24 V DC control circuits, with integrated potential distribution
• Rated current: 1 A

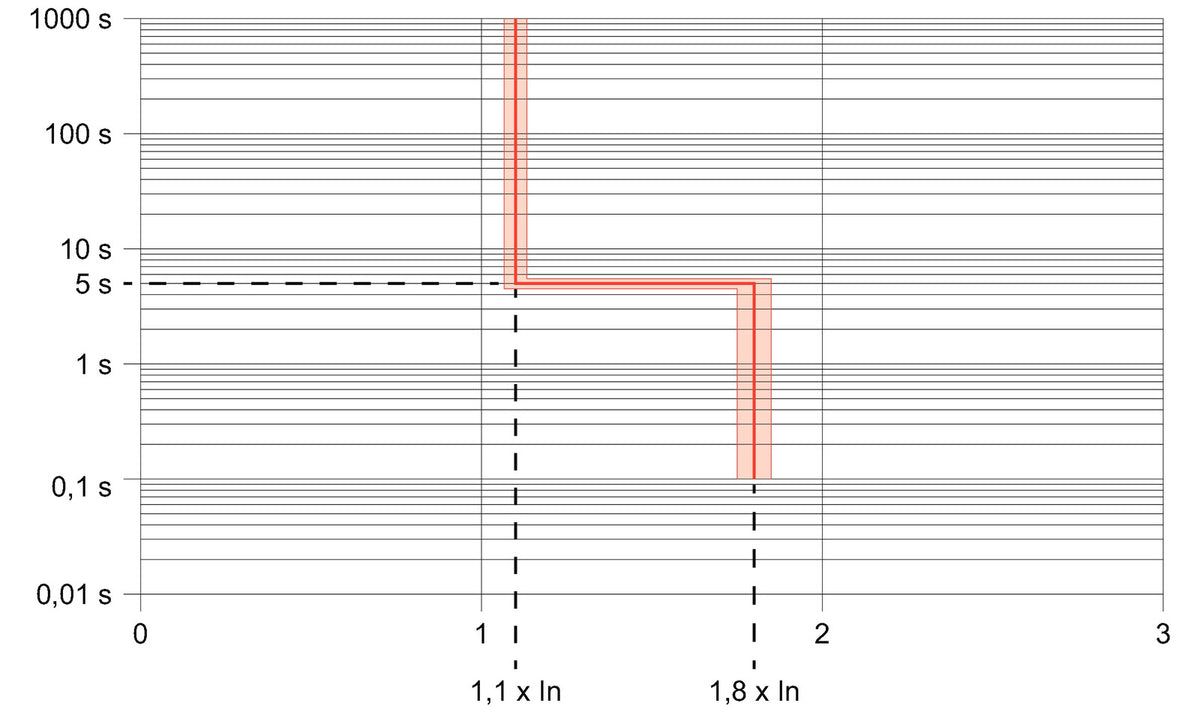

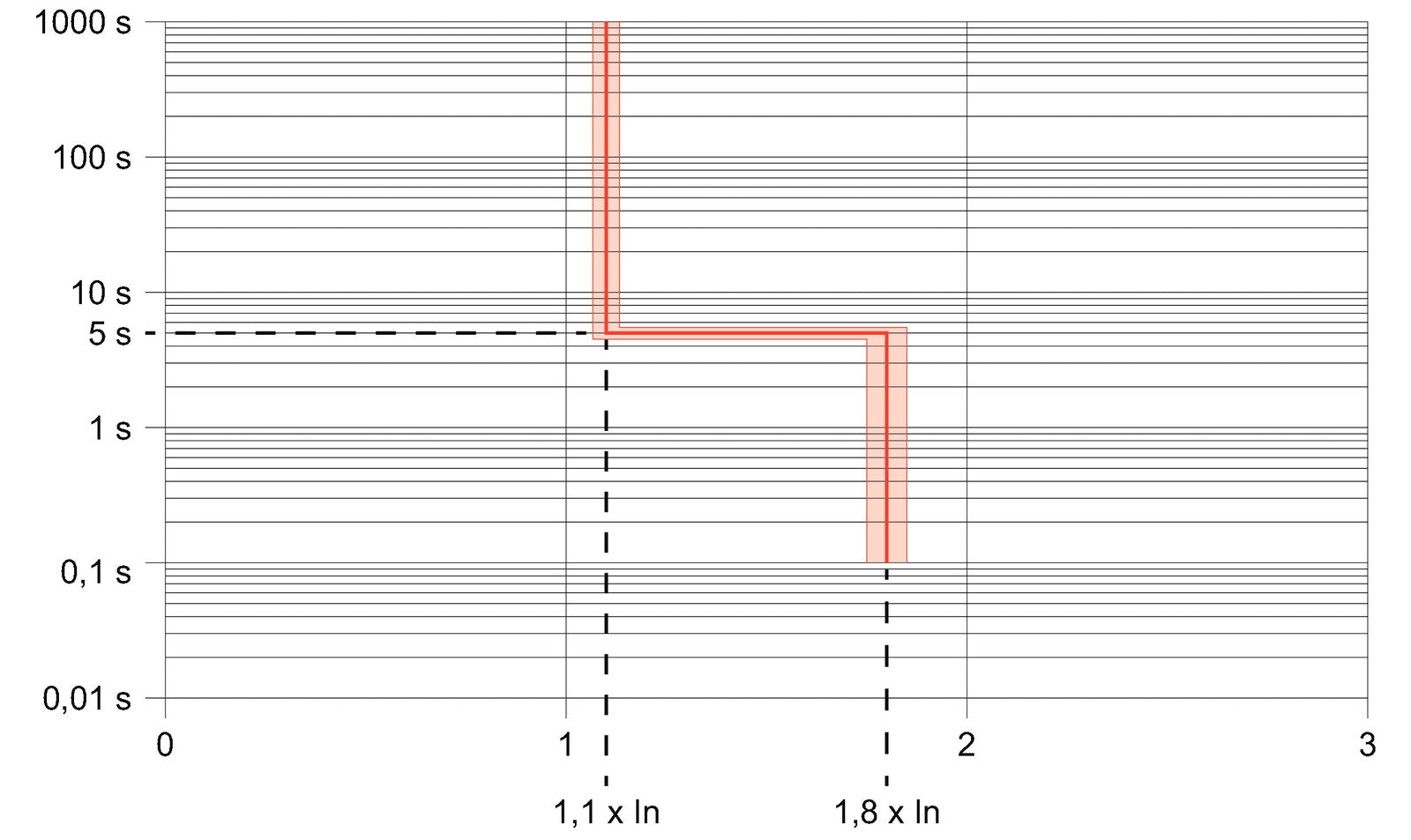

• LIM: Current-limiting trip characteristic (see datasheet triggering curve)
• CL2: Output limited to Class 2 in accordance with UL 1310
• EX: Extended version for shipbuilding and hazardous-area applications, coated PCB
• Supply voltage: 24 V DC, range 18…30 V DC
• Current consumption: 25 mA idle, I(out) + 30 mA at full load
• Status LEDs: Green (fault-free operation), red (load monitoring disconnected; flashing when triggered; rapid flashing on internal error)
• Connection system: PUSH IN, 2 terminals (+, −)
• Width: 6.1 mm
• Dimensions (W x H x D): 6.1 mm x 125 mm x 96.5 mm
• Operating temperature: −40 °C to +70 °C
• Storage temperature: −40 °C to +85 °C
• Protection degree: IP20
• Approvals: UL (file E258476), RoHS compliant
• Order number: 2838530000
