DC/DC Converter | PRO DCDC 96W 12V/12V 8A

The Weidmüller PRO DCDC 96W 12V/12V 8A takes a 9 to 18 V DC input and rebuilds it as a clean, galvanically isolated 12 V DC output at 8 A — same nominal voltage in and out, so this is the isolator and stabiliser of the range rather than a step-up or step-down unit. Specify it to break earth loops between 12 V circuits, or to hold 12 V steady on a battery-backed feeder where the source sags under load.

• Input voltage: 12 V DC rated, 9 to 18 V DC range
• Input current: 9.5 A at nominal input voltage, inrush < 4 A
• Output voltage: 12 V DC, adjustable 5 to 15 V DC via front potentiometer

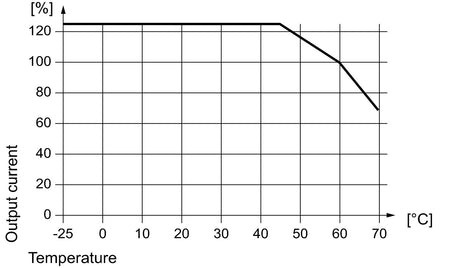

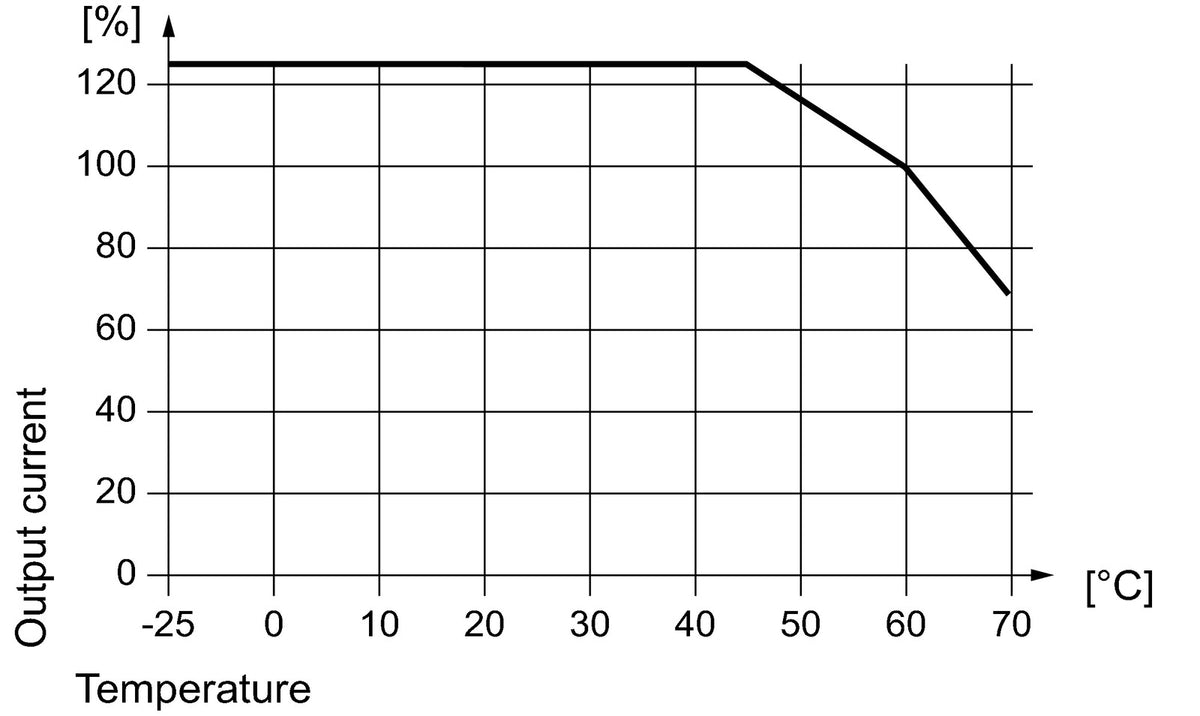

• Output current: 10 A at +45 °C, 8 A at +60 °C, 6 A at +70 °C (9.6 A max.)
• Output power: 96 W
• Efficiency: > 86.5 %
• Isolation: 4 kV input to output
• Parallel operation: Yes, up to 3 units
• Connection: Screw connection (input and output), PUSH IN (signal)
• Dimensions (W x H x D): 32 x 130 x 120 mm
• Mounting: TS 35 DIN rail
• Operating temperature: −25 °C to +70 °C
• Protection degree: IP20
• Approvals: cULus (E470829), EN 61558-2-16, RoHS
