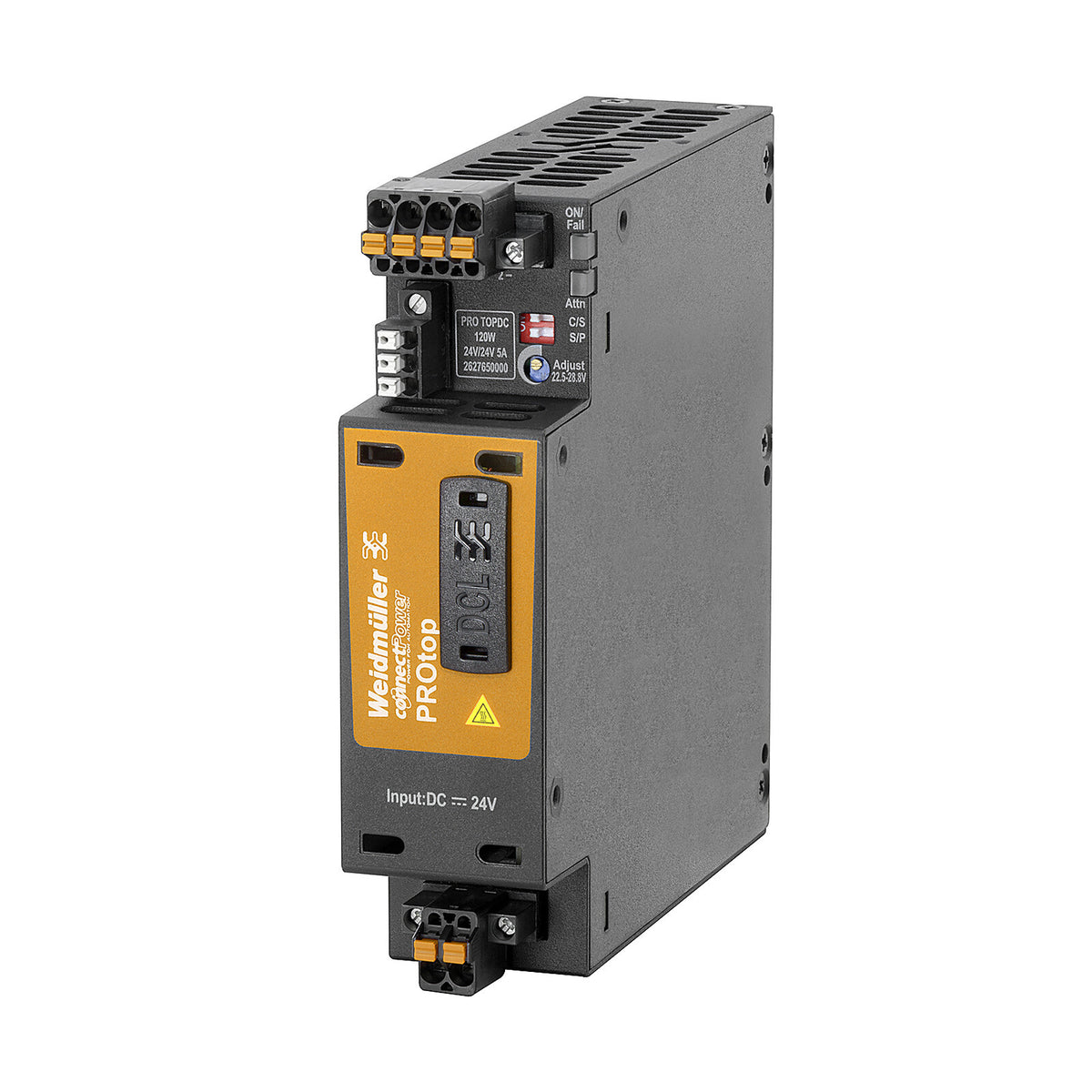

DC/DC Converter 24V/24V 5A | PRO TOP DC

The Weidmüller PRO TOPDC 24V/24V 5A is a DIN rail DC/DC converter that regenerates a stable, isolated 24 V DC output from a 24 V DC input. At 120 W it is sized for a single machine section or sub-panel fed off a shared bus, and the PRO TOP DC 600% short-term boost covers the inrush of contactors and valve banks on the load side.

• Output: 24 V DC ±1%, 5 A nominal (120 W continuous), 6.5 A maximum
• Peak load: 600% of rated current for 15 ms; 200% for 5 s
• Input: 14-31.2 V DC
• Efficiency: 89%
• Isolation: 1.41 kV input to output; 0.7 kV output to earth
• Connection: PUSH IN with actuator, input, output and signals
• Mounting: TS 35 DIN rail, 50 mm clearance above and below
• Operating temperature: -25 °C to +70 °C, derating 2.5% per °C above 60 °C
• Dimensions: 35 x 130 x 125 mm (W x H x D)
